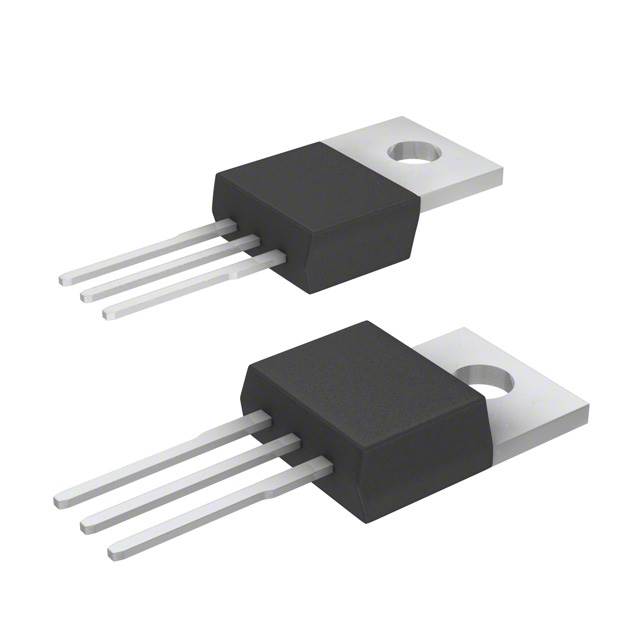

SPP80N04S2L-03

Obsolete

Infineon Technologies

MOSFET N-CH 40V 80A TO220-3

Search across all available documentation for this part.

Obsolete

Infineon Technologies

MOSFET N-CH 40V 80A TO220-3

Technical Specifications

Parameters and characteristics for this part

Specification	SPP80N04S2L-03

Drain to Source Voltage (Vdss)	40 V
Drive Voltage (Max Rds On, Min Rds On)	10 V, 4.5 V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs	213 nC
Input Capacitance (Ciss) (Max) @ Vds	7930 pF
Mounting Type	Through Hole
Operating Temperature [Max]	175 ░C
Operating Temperature [Min]	-55 °C
Package / Case	TO-220-3
Power Dissipation (Max) [Max]	300 W
Rds On (Max) @ Id, Vgs	3.4 mOhm
Supplier Device Package	PG-TO220-3-1
Technology	MOSFET (Metal Oxide)
Vgs (Max)	20 V
Vgs(th) (Max) @ Id	2 V

Part	Power Dissipation (Max)	FET Type	Package / Case	Drain to Source Voltage (Vdss)	Vgs(th) (Max) @ Id [Max]	Mounting Type	Technology	Vgs (Max)	Input Capacitance (Ciss) (Max) @ Vds	Operating Temperature [Min]	Operating Temperature [Max]	Drive Voltage (Max Rds On, Min Rds On)	Supplier Device Package	Gate Charge (Qg) (Max) @ Vgs [Max]	Rds On (Max) @ Id, Vgs	Vgs(th) (Max) @ Id	Power Dissipation (Max) [Max]	Gate Charge (Qg) (Max) @ Vgs
Infineon Technologies SPP80N03S2L05AKSA1	167 W	N-Channel	TO-220-3	30 V	2 V	Through Hole	MOSFET (Metal Oxide)	20 V	3320 pF	-55 °C	175 ░C	4.5 V 10 V	PG-TO220-3-1	89.7 nC	5.2 mOhm
Infineon Technologies SPP80N06S2-08	215 W	N-Channel	TO-220-3	55 V		Through Hole	MOSFET (Metal Oxide)	20 V	3800 pF	-55 °C	175 ░C	10 V	PG-TO220-3-1	96 nC	8 mOhm	4 V
Infineon Technologies SPP80N03S2-03		N-Channel	TO-220-3	30 V		Through Hole	MOSFET (Metal Oxide)	20 V	7020 pF	-55 °C	175 ░C	10 V	PG-TO220-3-1		3.4 mOhm	4 V	300 W	150 nC
Infineon Technologies SPP80N04S2L-03		N-Channel	TO-220-3	40 V		Through Hole	MOSFET (Metal Oxide)	20 V	7930 pF	-55 °C	175 ░C	4.5 V 10 V	PG-TO220-3-1		3.4 mOhm	2 V	300 W	213 nC
Infineon Technologies SPP80N06S2-09		N-Channel	TO-220-3	55 V		Through Hole	MOSFET (Metal Oxide)	20 V	3140 pF	-55 °C	175 ░C	10 V	PG-TO220-3-1		9.1 mOhm		190 W	80 nC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

N-Channel 40 V 80A (Tc) 300W (Tc) Through Hole PG-TO220-3-1
