Technical Specifications
Parameters and characteristics for this part
| Specification | 3-1473562-6 |
|---|---|
| Cable Termination | IDC |
| Color | Black |
| Connector Type | Plug |
| Contact Finish | Gold |
| Contact Finish Thickness | 8 çin |
| Contact Finish Thickness | 0.203 çm |
| Contact Type | Male Pin |
| Fastening Type | Latch Lock |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Pitch [x] | 0.079 in |
| Pitch [x] | 2 mm |
| Wire Gauge [Max] | 23 AWG |
| Wire Gauge [Min] | 19 AWG |
| Wire Type | Discrete |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information

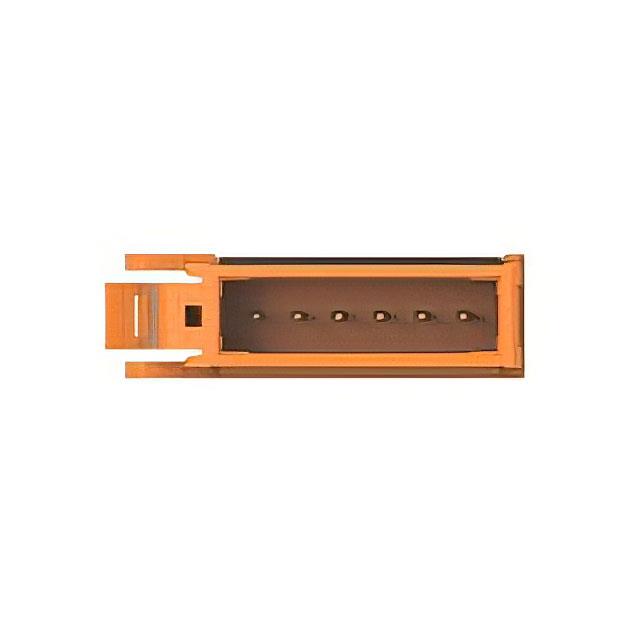

RITS Plug Connector Series
6 Position, Plug, Connector Assembly, Crimp, Wire-to-Board / Wire-to-Wire, Gold (Au), UL 94V-0, 2 mm [.079 in] Centerline, 1 Row, RITS Plug Connector
