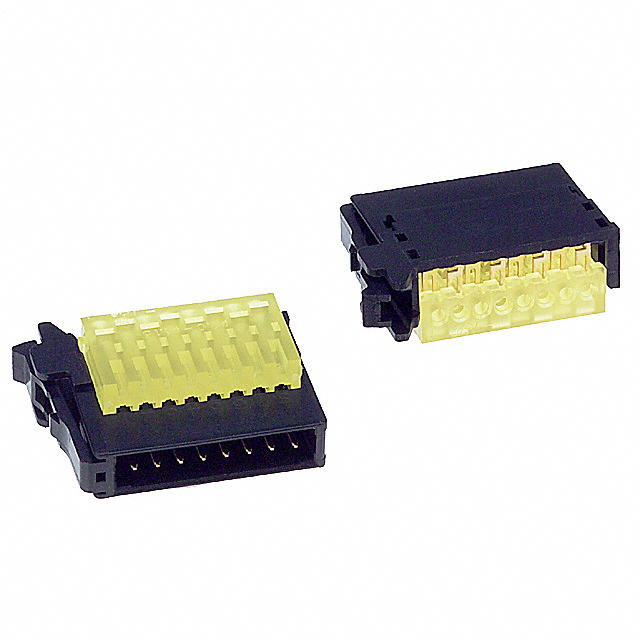

1473562-8
ActiveTE Connectivity Raychem Cable Protection
CONN PL 8 POS 2MM CRIMP ST CABLE MOUNT 8 TERMINAL 1 PORT TUBE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1473562-8 |
|---|---|
| Cable Termination | IDC |
| Color | Black |
| Connector Type | Plug |
| Contact Finish | Gold |
| Contact Finish Thickness | 8 çin |
| Contact Finish Thickness | 0.203 çm |
| Contact Type | Male Pin |
| Fastening Type | Latch Lock |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Pitch [x] | 0.079 in |
| Pitch [x] | 2 mm |
| Wire Gauge [Max] | 18 AWG |
| Wire Gauge [Min] | 17 AWG |
| Wire Type | Discrete |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.71 | |
| 20 | $ 4.98 | |||
| 40 | $ 4.85 | |||
| 60 | $ 4.71 | |||
| 100 | $ 4.61 | |||
Description
General part information
RITS Plug Connector Series
8 Position, Plug, Connector Assembly, Crimp, Wire-to-Board / Wire-to-Wire, Gold (Au), UL 94V-0, 2 mm [.079 in] Centerline, 1 Row, RITS Plug Connector
