Technical Specifications
Parameters and characteristics for this part
| Specification | 1-1473562-7 |
|---|---|
| Cable Termination | IDC |
| Color | Black |
| Connector Type | Plug |
| Contact Finish | Gold |
| Contact Finish Thickness | 8 çin |
| Contact Finish Thickness | 0.203 çm |
| Contact Type | Male Pin |
| Fastening Type | Latch Lock |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 7 |
| Number of Rows | 1 |
| Pitch [x] | 0.079 in |
| Pitch [x] | 2 mm |
| Wire Gauge [Max] | 19 AWG |
| Wire Gauge [Min] | 17.5 AWG |
| Wire Type | Discrete |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1000 | $ 3.38 | |
Description
General part information

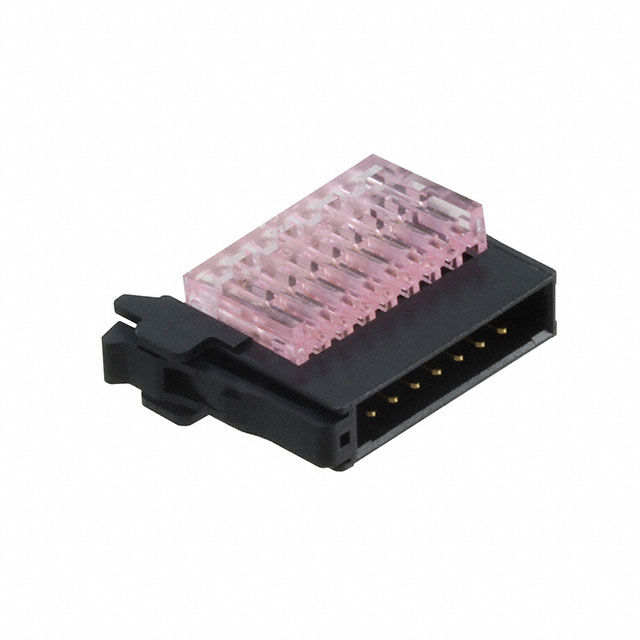

RITS Plug Connector Series
7 Position, Plug, Connector Assembly, Crimp, Wire-to-Board, Gold (Au), UL 94V-0, .079 in Centerline, 1 Row, Wire & Cable, Signal, RITS Plug Connector
