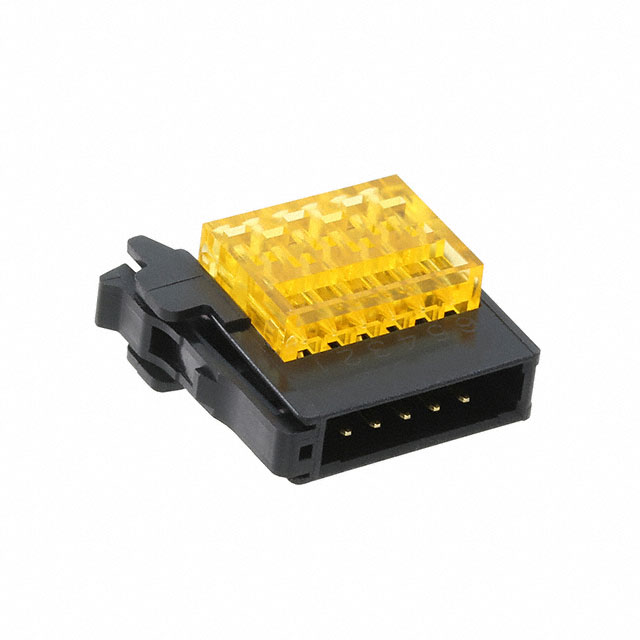

3-1473562-5

Active

TE Connectivity Raychem Cable Protection

CONN PLUG 5POS IDC GOLD

Deep-Dive with AI

Search across all available documentation for this part.

3-1473562-5

Active

TE Connectivity Raychem Cable Protection

CONN PLUG 5POS IDC GOLD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3-1473562-5

Cable Termination	IDC
Color	Black
Connector Type	Plug
Contact Finish	Gold
Contact Finish Thickness	8 çin
Contact Finish Thickness	0.203 çm
Contact Type	Male Pin
Fastening Type	Latch Lock
Mounting Type	Free Hanging (In-Line)
Number of Rows	1
Pitch [x]	0.079 in
Pitch [x]	2 mm
Wire Gauge [Max]	23 AWG
Wire Gauge [Min]	19 AWG
Wire Type	Discrete

RITS Plug Connector Series

Part	Mounting Type	Contact Finish	Connector Type	Cable Termination	Contact Type	Number of Positions	Pitch [x]	Pitch [x]	Fastening Type	Contact Finish Thickness	Contact Finish Thickness	Color	Wire Type	Wire Gauge [Max]	Wire Gauge [Min]	Number of Rows
TE Connectivity Raychem Cable Protection 1473562-8	Free Hanging (In-Line)	Gold	Plug	IDC	Male Pin	8	0.079 in	2 mm	Latch Lock	8 çin	0.203 çm	Black	Discrete	18 AWG	17 AWG	1
TE Connectivity Raychem Cable Protection 3-1473562-7	Free Hanging (In-Line)	Gold	Plug	IDC	Male Pin	7	0.079 in	2 mm	Latch Lock	8 çin	0.203 çm	Black	Discrete	23 AWG	19 AWG	1
TE Connectivity Raychem Cable Protection 1-1473562-6	Free Hanging (In-Line)	Gold	Plug	IDC	Male Pin	6	0.079 in	2 mm	Latch Lock	8 çin	0.203 çm	Black	Discrete	19 AWG	17.5 AWG	1
TE Connectivity Raychem Cable Protection 2-1473562-6	Free Hanging (In-Line)	Gold	Plug	IDC	Male Pin	6	0.079 in	2 mm	Latch Lock	8 çin	0.203 çm	Black	Discrete	18 AWG	16 AWG	1
TE Connectivity Raychem Cable Protection 3-1473562-3	Free Hanging (In-Line)	Gold	Plug	IDC	Male Pin		0.079 in	2 mm	Latch Lock	8 çin	0.203 çm	Black	Discrete	23 AWG	19 AWG	1
TE Connectivity Raychem Cable Protection 1-1473562-7	Free Hanging (In-Line)	Gold	Plug	IDC	Male Pin	7	0.079 in	2 mm	Latch Lock	8 çin	0.203 çm	Black	Discrete	19 AWG	17.5 AWG	1
TE Connectivity Raychem Cable Protection 3-1473562-5	Free Hanging (In-Line)	Gold	Plug	IDC	Male Pin		0.079 in	2 mm	Latch Lock	8 çin	0.203 çm	Black	Discrete	23 AWG	19 AWG	1
TE Connectivity Raychem Cable Protection 1473562-5	Free Hanging (In-Line)	Gold	Plug	IDC	Male Pin		0.079 in	2 mm	Latch Lock	8 çin	0.203 çm	Black	Discrete	18 AWG	17 AWG	1
TE Connectivity Raychem Cable Protection 3-1473562-6	Free Hanging (In-Line)	Gold	Plug	IDC	Male Pin	6	0.079 in	2 mm	Latch Lock	8 çin	0.203 çm	Black	Discrete	23 AWG	19 AWG	1
TE Connectivity Raychem Cable Protection 1-1473562-8	Free Hanging (In-Line)	Gold	Plug	IDC	Male Pin	8	0.079 in	2 mm	Latch Lock	8 çin	0.203 çm	Black	Discrete	19 AWG	17.5 AWG	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1250	$ 2.84

Description

General part information

RITS Plug Connector Series

5 Position Rectangular Plug Connector IDC Gold 19-23 AWG

Documents

Technical documentation and resources

No documents available
