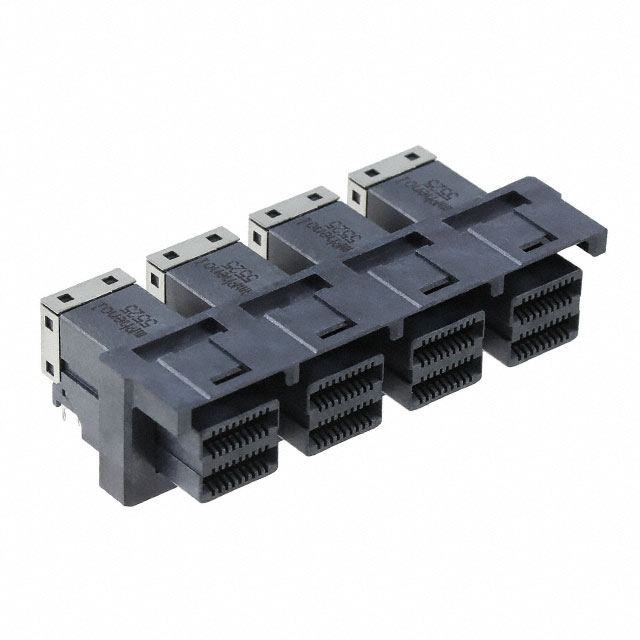

G40H13331HR
ActiveAmphenol ICC (Commercial Products)
CONN MINI HD SAS RCP 1X4 108P RA
G40H13331HR
ActiveAmphenol ICC (Commercial Products)
CONN MINI HD SAS RCP 1X4 108P RA
Description
General part information
G40H Series
108 (36 x 3) Position SAS, Mini HD Receptacle (1x4) Connector Press-Fit Through Hole, Right Angle
Technical Specifications
Parameters and characteristics for this part
| Specification | G40H13331HR |
|---|---|
| Connector Pin Configuration (Columns) | 4 pins |
| Connector Pin Configuration (Rows) | 1 pins |
| Connector Style | Receptacle |
| Connector Type | SAS, Mini HD |
| Contact Finish | Gold |
| Contact Finish Thickness | 30 µin |
| Features | Latch Lock |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions (Columns) | 36 |
| Number of Positions (Rows) | 3, 4 |
| Number of Positions (Total) | 108, 144 |
| Termination | Press-Fit |
