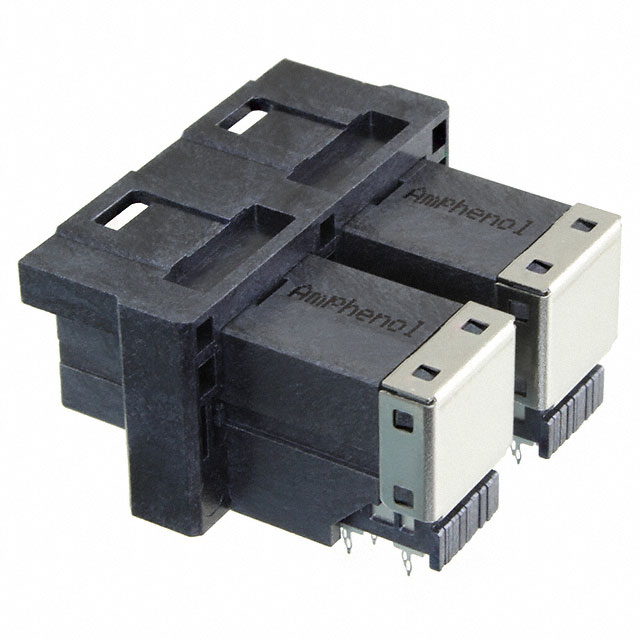

G40H12331HR
ActiveAmphenol ICC (Commercial Products)
CONN MINI HD SAS RCPT 1X2 72P RA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
G40H12331HR
ActiveAmphenol ICC (Commercial Products)
CONN MINI HD SAS RCPT 1X2 72P RA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | G40H12331HR |
|---|---|
| Connector Style | Receptacle (1x2) |
| Connector Type | SAS, Mini HD |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Features | Latch Lock |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 72 |
| Number of Positions [x] | 36 |
| Number of Positions [y] | 2 |
| Termination | Press-Fit |
G40H Series
| Part | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Connector Style | Features | Contact Finish | Mounting Type | Connector Type | Termination | Number of Positions [y] | Number of Positions [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (Commercial Products) | 0.76 Ám | 30 Áin | 108 | Receptacle (1x4) | Latch Lock | Gold | Through Hole Right Angle | Mini HD SAS | Press-Fit | ||
Amphenol ICC (Commercial Products) | 0.76 Ám | 30 Áin | 72 | Receptacle (1x2) | Board Lock Latch Lock | Gold | Surface Mount | Mini HD SAS | Solder | 2 | 36 |
Amphenol ICC (Commercial Products) | 0.76 Ám | 30 Áin | 72 | Receptacle (1x2) | Latch Lock | Gold | Through Hole Right Angle | Mini HD SAS | Press-Fit | 2 | 36 |
Amphenol ICC (Commercial Products) | 0.76 Ám | 30 Áin | 36 | Receptacle | Board Lock Latch Lock | Gold | Surface Mount | Mini HD SAS | Solder | ||
Amphenol ICC (Commercial Products) | 0.76 Ám | 30 Áin | 36 | Receptacle | Latch Lock | Gold | Through Hole Right Angle | Mini HD SAS | Press-Fit | ||
Amphenol ICC (Commercial Products) | 0.76 Ám | 30 Áin | 72 | Receptacle (1x2) | Board Lock Latch Lock | Gold | Surface Mount | Mini HD SAS | Solder | 2 | 36 |
Amphenol ICC (Commercial Products) | 0.76 Ám | 30 Áin | 36 | Receptacle | Board Lock Latch Lock | Gold | Surface Mount | Mini HD SAS | Solder | ||
Amphenol ICC (Commercial Products) | 0.76 Ám | 30 Áin | 36 | Receptacle | Board Lock Latch Lock | Gold | Surface Mount | Mini HD SAS | Solder | ||
Amphenol ICC (Commercial Products) | 0.76 Ám | 30 Áin | 72 | Receptacle (1x2) | Board Lock Latch Lock | Gold | Surface Mount | Mini HD SAS | Solder | 2 | 36 |
Amphenol ICC (Commercial Products) | 0.76 Ám | 30 Áin | 72 | Receptacle (1x2) | Latch Holder | Gold | Through Hole Right Angle | Mini HD SAS | Press-Fit | 2 | 36 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 5.79 | |
| 10 | $ 5.21 | |||
| 25 | $ 4.91 | |||
| 40 | $ 4.78 | |||
| 80 | $ 4.66 | |||
| 240 | $ 4.43 | |||
Description
General part information
G40H Series
72 (36 x 2) Position SAS, Mini HD Receptacle (1x2) Connector Press-Fit Through Hole, Right Angle
