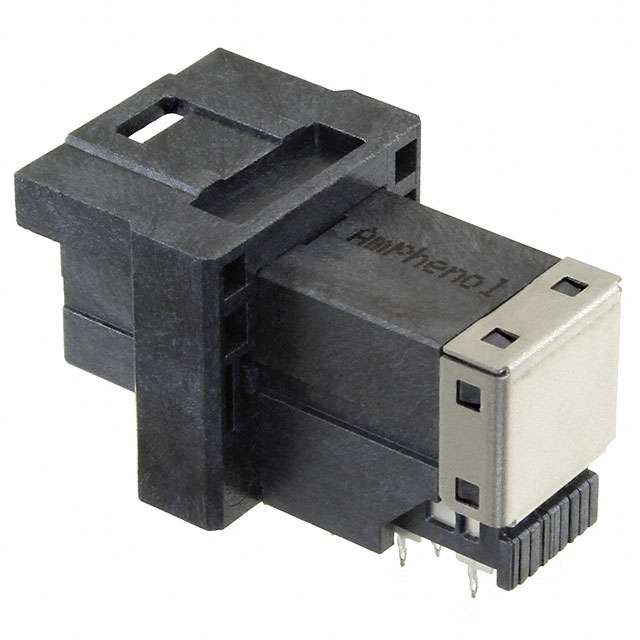

G40H11331HR

G40H11331HR

Active

Amphenol ICC (Commercial Products)

CONN MINI HD SAS RCPT 36POS R/A

G40H11331HR

G40H11331HR

Active

Amphenol ICC (Commercial Products)

CONN MINI HD SAS RCPT 36POS R/A

Description Specifications Series Pricing CAD Documents

Description

General part information

G40H Series

36 Position SAS, Mini HD Receptacle Connector Press-Fit Through Hole, Right Angle

Technical Specifications

Parameters and characteristics for this part

Specification	G40H11331HR

Connector Style	Receptacle
Connector Type	SAS, Mini HD
Contact Finish	Gold
Contact Finish Thickness	30 µin
Features	Latch Lock
Mounting Type	Through Hole, Right Angle
Number of Positions	36
Termination	Press-Fit

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Sign in to see pricing

Create a free account to access distributor pricing data.

Sign up — free Log in

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

G40H11331HR | Datasheet

G40H Series

Part	Number of Positions (Columns)	Number of Positions (Total)	Number of Positions (Rows)	Mounting Type	Connector Type	Contact Finish	Termination	Contact Finish Thickness	Features	Connector Style	Connector Pin Configuration (Columns)	Connector Pin Configuration (Rows)	Number of Positions
Amphenol ICC (Commercial Products) G40H13331HR	36	108 144	3 4	Right Angle Through Hole	Mini HD SAS	Gold	Press-Fit	30 µin	Latch Lock	Receptacle	4 pins	1 pins
Amphenol ICC (Commercial Products) G40H4232211HR	36	72	2	Surface Mount	Mini HD SAS	Gold	Solder	30 µin	Board Lock Latch Lock	Receptacle	2 pins	1 pins
Amphenol ICC (Commercial Products) G40HC232212HR-C	36	72	2	Surface Mount	Mini HD SAS	Gold	Solder	30 µin	Board Lock Latch Lock	Receptacle	2 pins	1 pins
Amphenol ICC (Commercial Products) G40H12331HR	36	72	2	Right Angle Through Hole	Mini HD SAS	Gold	Press-Fit	30 µin	Latch Lock	Receptacle	2 pins	1 pins
Amphenol ICC (Commercial Products) G40H3132212HR				Surface Mount	Mini HD SAS	Gold	Solder	30 µin	Board Lock Latch Lock	Receptacle			36
Amphenol ICC (Commercial Products) G40H11331HR				Right Angle Through Hole	Mini HD SAS	Gold	Press-Fit	30 µin	Latch Lock	Receptacle			36
Amphenol ICC (Commercial Products) G40H3232211HR	36	72	2	Surface Mount	Mini HD SAS	Gold	Solder	30 µin	Board Lock Latch Lock	Receptacle	2 pins	1 pins
Amphenol ICC (Commercial Products) G40H4232212HR	36	72	2	Surface Mount	Mini HD SAS	Gold	Solder	30 µin	Board Lock Latch Lock	Receptacle	2 pins	1 pins
Amphenol ICC (Commercial Products) G40H3132211HR				Surface Mount	Mini HD SAS	Gold	Solder	30 µin	Board Lock Latch Lock	Receptacle			36
Amphenol ICC (Commercial Products) G40HB132212HR				Surface Mount	Mini HD SAS	Gold	Solder	30 µin	Board Lock Latch Lock	Receptacle			36
