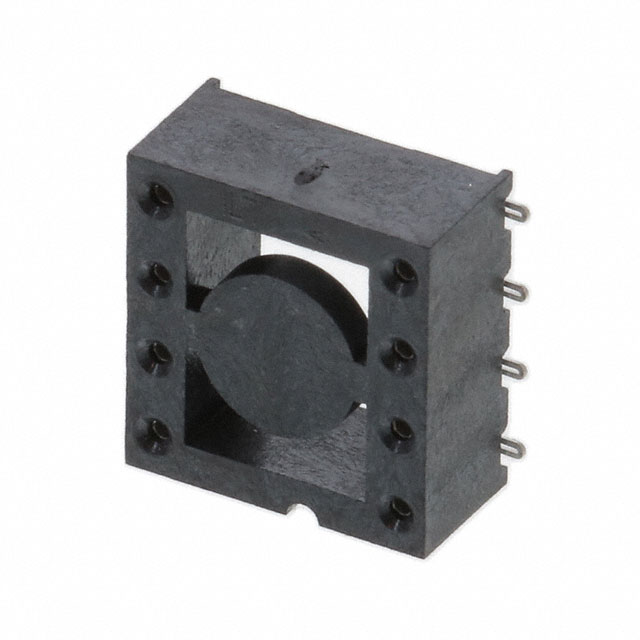

ICF-308-T-O-TR - ICF-308-T-O-TR

ICF-308-T-O-TR

Active
Samtec Inc.

IC & COMPONENT SOCKET, 8 CONTACTS, DIP SOCKET, 2.54 MM, ICF SERIES, 7.62 MM, BERYLLIUM COPPER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsICF DatasheetDatasheet+1
ICF-308-T-O-TR - ICF-308-T-O-TR

ICF-308-T-O-TR

Active
Samtec Inc.

IC & COMPONENT SOCKET, 8 CONTACTS, DIP SOCKET, 2.54 MM, ICF SERIES, 7.62 MM, BERYLLIUM COPPER

Deep-Dive with AI

DocumentsICF DatasheetDatasheet+1

Technical Specifications

Parameters and characteristics for this part

SpecificationICF-308-T-O-TR
Contact Finish - PostTin
Contact Material - MatingBeryllium Copper
Contact Material - PostBeryllium Copper
FeaturesOpen Frame
Housing MaterialLiquid Crystal Polymer (LCP)
Mounting TypeSurface Mount
Number of Positions or Pins (Grid)8
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Pitch - Mating0.1 in
Pitch - Mating2.54 mm
Pitch - Post2.54 mm
Pitch - Post0.1 in
TerminationSolder
Type0.3 "
Type7.62 mm
TypeDIP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 2.33
10$ 1.78
25$ 1.60
50$ 1.48
100$ 1.37
Digi-Reel® 1$ 2.33
10$ 1.78
25$ 1.60
50$ 1.48
100$ 1.37
Tape & Reel (TR) 450$ 0.88
NewarkEach (Supplied on Cut Tape) 1$ 1.80
10$ 1.63
100$ 1.39
500$ 1.17
1000$ 1.00
2500$ 0.93
5000$ 0.89
10000$ 0.87

Description

General part information

ICF-308 Series

8 (2 x 4) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Tin Surface Mount
