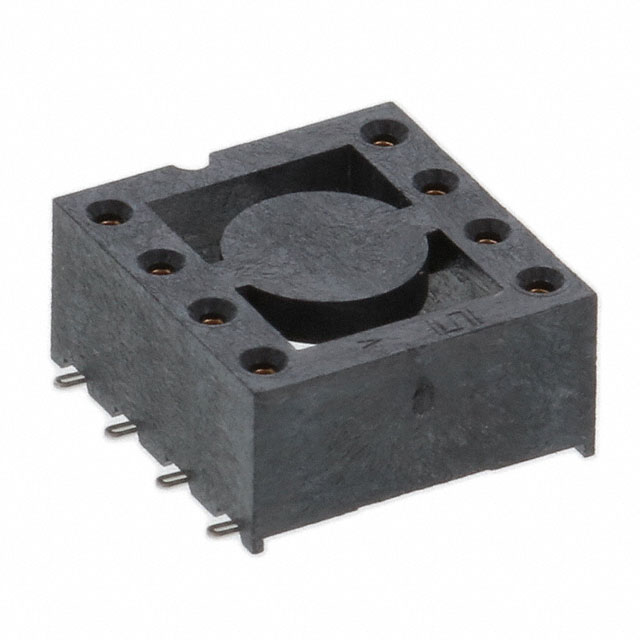

ICF-308-S-O-TR
ActiveSamtec Inc.
CONN IC DIP SOCKET 8POS TIN
Deep-Dive with AI
Search across all available documentation for this part.
ICF-308-S-O-TR
ActiveSamtec Inc.
CONN IC DIP SOCKET 8POS TIN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ICF-308-S-O-TR |
|---|---|
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám |
| Contact Material - Mating | Beryllium Copper |
| Contact Material - Post | Beryllium Copper |
| Features | Open Frame |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Mounting Type | Surface Mount |
| Number of Positions or Pins (Grid) | 8 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Pitch - Post | 2.54 mm |
| Pitch - Post | 0.1 in |
| Termination | Solder |
| Type | 0.3 " |
| Type | 7.62 mm |
| Type | DIP |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.79 | |
| 10 | $ 3.67 | |||
| 25 | $ 3.30 | |||
| 50 | $ 3.06 | |||
| 100 | $ 2.84 | |||
| Digi-Reel® | 1 | $ 4.79 | ||
| 10 | $ 3.67 | |||
| 25 | $ 3.30 | |||
| 50 | $ 3.06 | |||
| 100 | $ 2.84 | |||
| Tape & Reel (TR) | 450 | $ 2.42 | ||
| 900 | $ 2.26 | |||
| 1350 | $ 2.17 | |||
| 2250 | $ 2.07 | |||
| 3150 | $ 2.00 | |||
| 4500 | $ 1.96 | |||
Description
General part information
ICF-308 Series
8 (2 x 4) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Gold Surface Mount
