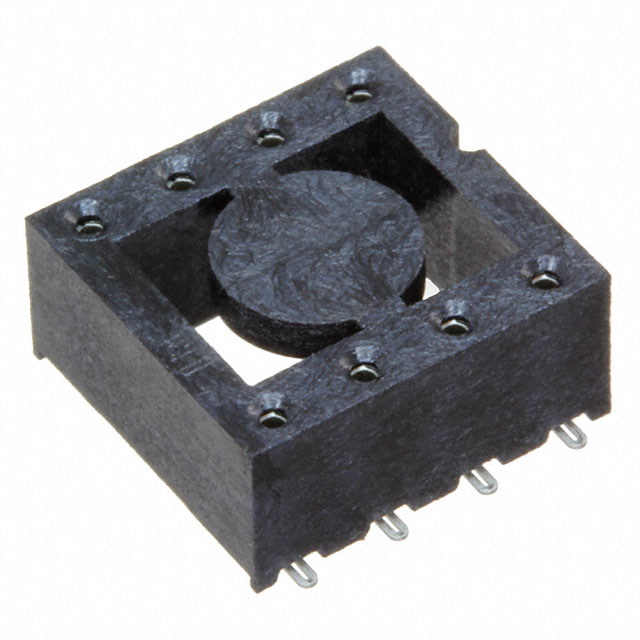

ICF-308-T-I-TR
ActiveSamtec Inc.
.100" SURFACE MOUNT SCREW MACHIN
Deep-Dive with AI
Search across all available documentation for this part.
ICF-308-T-I-TR
ActiveSamtec Inc.
.100" SURFACE MOUNT SCREW MACHIN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ICF-308-T-I-TR |
|---|---|
| Contact Finish - Post | Tin |
| Contact Material - Mating | Beryllium Copper |
| Contact Material - Post | Beryllium Copper |
| Features | Open Frame |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Mounting Type | Surface Mount |
| Number of Positions or Pins (Grid) | 8 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Pitch - Post | 2.54 mm |
| Pitch - Post | 0.1 in |
| Termination | Solder |
| Type | 0.3 " |
| Type | 7.62 mm |
| Type | DIP |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 475 | $ 1.16 | |
| 950 | $ 1.08 | |||
| 1425 | $ 1.03 | |||
| 2375 | $ 0.98 | |||
| 3325 | $ 0.95 | |||
| 4750 | $ 0.92 | |||
Description
General part information
ICF-308 Series
8 (2 x 4) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Tin Surface Mount
