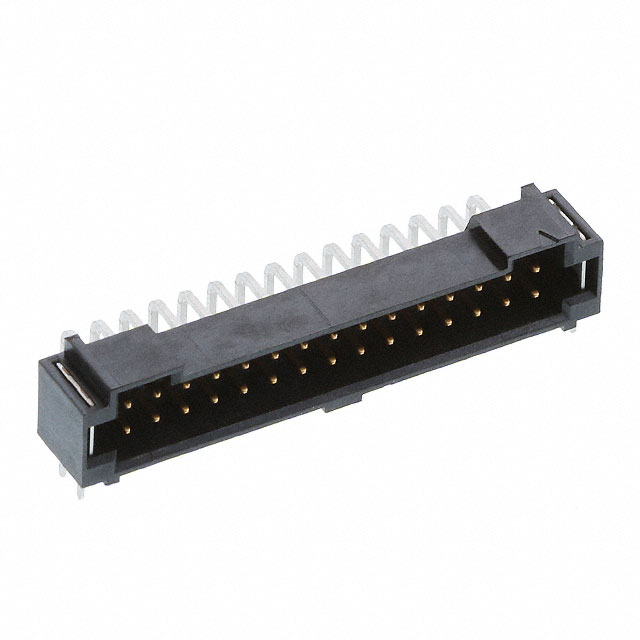

T2M-115-01-L-D-RA-WT

Active

Samtec Inc.

CONN HEADER R/A 30POS 2MM

Deep-Dive with AI

DocumentsT2M Series Other Related Documents 03 T2M Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T2M-115-01-L-D-RA-WT

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Post	0.09 "
Contact Length - Post	2.29 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3.8 A
Fastening Type	Push-Pull
Features	Solder Retention
Insulation Color	Black
Insulation Height [z]	7.44 mm
Insulation Height [z]	0.293 in
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole, Right Angle
Number of Positions	30
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder

T2M-115 Series

Part	Insulation Color	Insulation Height	Insulation Height	Connector Type	Number of Positions Loaded	Row Spacing - Mating	Row Spacing - Mating	Contact Type	Current Rating (Amps)	Number of Rows	Insulation Material	Contact Finish - Mating	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Contact Finish - Post	Style	Fastening Type	Mounting Type	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Termination	Contact Material	Features	Overall Contact Length	Overall Contact Length	Contact Length - Post	Contact Length - Post	Insulation Height [z]	Insulation Height [z]
Samtec Inc. T2M-115-01-L-D-SM-TR	Black	5.8 mm	0.228 in	Header	All	0.079 in	2 mm	Male Pin	3.8 A	2	Liquid Crystal Polymer (LCP)	Gold	30	-55 °C	125 °C	Shrouded - 4 Wall	Tin	Board to Board Cable	Push-Pull	Surface Mount	0.079 in	2 mm	10 çin	0.25 çm	Square	Solder	Phosphor Bronze
Samtec Inc. T2M-115-01-L-D-SM-WT	Black	5.8 mm	0.228 in	Header	All	0.079 in	2 mm	Male Pin	3.8 A	2	Liquid Crystal Polymer (LCP)	Gold	30	-55 °C	125 °C	Shrouded - 4 Wall	Tin	Board to Board Cable	Push-Pull	Surface Mount	0.079 in	2 mm	10 çin	0.25 çm	Square	Solder	Phosphor Bronze	Solder Retention
Samtec Inc. T2M-115-01-S-D-SM-DS-K	Black	5.8 mm	0.228 in	Header	All	0.079 in	2 mm	Male Pin	3.8 A	2	Liquid Crystal Polymer (LCP)	Gold	30	-55 °C	125 °C	Shrouded - 4 Wall	Tin	Board to Board Cable	Push-Pull	Surface Mount	0.079 in	2 mm	30 Áin	0.76 Ám	Square	Solder	Phosphor Bronze	Mating Flange Pick and Place
Samtec Inc. T2M-115-01-L-D-TH	Black	5.8 mm	0.228 in	Header	All	0.079 in	2 mm	Male Pin	3.8 A	2	Liquid Crystal Polymer (LCP)	Gold	30	-55 °C	125 °C	Shrouded - 4 Wall	Tin	Board to Board Cable	Push-Pull	Through Hole	0.079 in	2 mm	10 çin	0.25 çm	Square	Solder	Phosphor Bronze		0.302 in	7.67 mm	0.117 in	2.97 mm
Samtec Inc. T2M-115-01-S-D-RA	Black			Header	All	0.079 in	2 mm	Male Pin	3.8 A	2	Liquid Crystal Polymer (LCP)	Gold	30	-55 °C	125 °C	Shrouded - 4 Wall	Tin	Board to Board Cable	Push-Pull	Through Hole Right Angle	0.079 in	2 mm	30 Áin	0.76 Ám	Square	Solder	Phosphor Bronze				0.09 "	2.29 mm	7.44 mm	0.293 in
Samtec Inc. T2M-115-01-S-D-TH-DS	Black	5.8 mm	0.228 in	Header	All	0.079 in	2 mm	Male Pin	3.8 A	2	Liquid Crystal Polymer (LCP)	Gold	30	-55 °C	125 °C	Shrouded - 4 Wall	Tin	Board to Board Cable	Push-Pull	Through Hole	0.079 in	2 mm	30 Áin	0.76 Ám	Square	Solder	Phosphor Bronze	Mating Flange	0.302 in	7.67 mm	0.117 in	2.97 mm
Samtec Inc. T2M-115-01-L-D-SM-WT-K	Black	5.8 mm	0.228 in	Header	All	0.079 in	2 mm	Male Pin	3.8 A	2	Liquid Crystal Polymer (LCP)	Gold	30	-55 °C	125 °C	Shrouded - 4 Wall	Tin	Board to Board Cable	Push-Pull	Surface Mount	0.079 in	2 mm	10 çin	0.25 çm	Square	Solder	Phosphor Bronze	Pick and Place Solder Retention
Samtec Inc. T2M-115-01-S-D-SM-WT-TR	Black	5.8 mm	0.228 in	Header	All	0.079 in	2 mm	Male Pin	3.8 A	2	Liquid Crystal Polymer (LCP)	Gold	30	-55 °C	125 °C	Shrouded - 4 Wall	Tin	Board to Board Cable	Push-Pull	Surface Mount	0.079 in	2 mm	30 Áin	0.76 Ám	Square	Solder	Phosphor Bronze	Solder Retention
Samtec Inc. T2M-115-01-L-D-SM-WT-K-TR	Black	5.8 mm	0.228 in	Header	All	0.079 in	2 mm	Male Pin	3.8 A	2	Liquid Crystal Polymer (LCP)	Gold	30	-55 °C	125 °C	Shrouded - 4 Wall	Tin	Board to Board Cable	Push-Pull	Surface Mount	0.079 in	2 mm	10 çin	0.25 çm	Square	Solder	Phosphor Bronze	Pick and Place Solder Retention
Samtec Inc. T2M-115-01-L-D-RA-WT	Black			Header	All	0.079 in	2 mm	Male Pin	3.8 A	2	Liquid Crystal Polymer (LCP)	Gold	30	-55 °C	125 °C	Shrouded - 4 Wall	Tin	Board to Board Cable	Push-Pull	Through Hole Right Angle	0.079 in	2 mm	10 çin	0.25 çm	Square	Solder	Phosphor Bronze	Solder Retention			0.09 "	2.29 mm	7.44 mm	0.293 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 6.79
		10	$ 6.28
		25	$ 5.94
		50	$ 5.72
		100	$ 5.34

T2M-115-01-L-D-RA-WT

Deep-Dive with AI

T2M-115-01-L-D-RA-WT

Deep-Dive with AI

Technical Specifications

T2M-115 Series

Pricing

Description

T2M-115 Series

Documents

T2M Series Other Related Documents 03

T2M Datasheet

Datasheet

High Reliability Tiger Eye&#8482; Discrete Wire Header, 2.00 mm Pitch

T2M-115 Series

High Reliability Tiger Eye™ Discrete Wire Header, 2.00 mm Pitch
