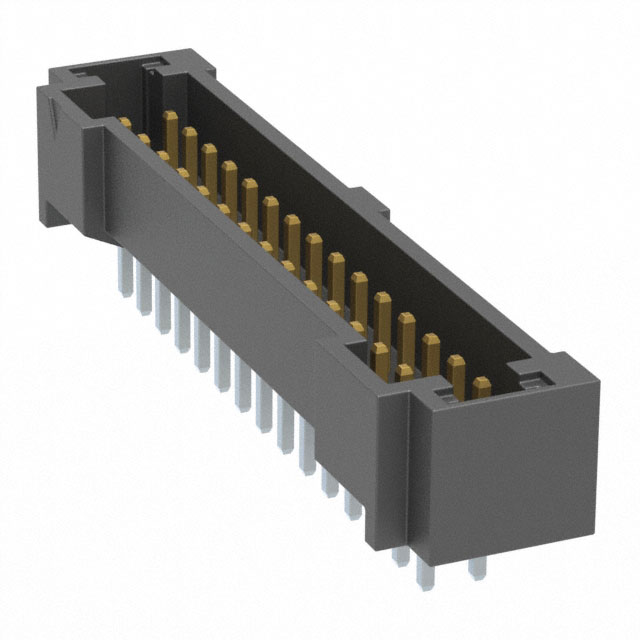

T2M-115-01-L-D-TH

Active

Samtec Inc.

CONN HEADER VERT 30POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet High Reliability Tiger Eye™ Discrete Wire Header, 2.00 mm Pitch +2

T2M-115-01-L-D-TH

Active

Samtec Inc.

CONN HEADER VERT 30POS 2MM

Deep-Dive with AI

DocumentsDatasheet High Reliability Tiger Eye™ Discrete Wire Header, 2.00 mm Pitch +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T2M-115-01-L-D-TH

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Post	0.117 in
Contact Length - Post	2.97 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3.8 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	5.8 mm
Insulation Height	0.228 in
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole
Number of Positions	30
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	0.302 in
Overall Contact Length	7.67 mm
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder

T2M-115 Series

Part	Insulation Color	Insulation Height	Insulation Height	Connector Type	Number of Positions Loaded	Row Spacing - Mating	Row Spacing - Mating	Contact Type	Current Rating (Amps)	Number of Rows	Insulation Material	Contact Finish - Mating	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Contact Finish - Post	Style	Fastening Type	Mounting Type	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Termination	Contact Material	Features	Overall Contact Length	Overall Contact Length	Contact Length - Post	Contact Length - Post	Insulation Height [z]	Insulation Height [z]
Samtec Inc. T2M-115-01-L-D-SM-TR	Black	5.8 mm	0.228 in	Header	All	0.079 in	2 mm	Male Pin	3.8 A	2	Liquid Crystal Polymer (LCP)	Gold	30	-55 °C	125 °C	Shrouded - 4 Wall	Tin	Board to Board Cable	Push-Pull	Surface Mount	0.079 in	2 mm	10 çin	0.25 çm	Square	Solder	Phosphor Bronze
Samtec Inc. T2M-115-01-L-D-SM-WT	Black	5.8 mm	0.228 in	Header	All	0.079 in	2 mm	Male Pin	3.8 A	2	Liquid Crystal Polymer (LCP)	Gold	30	-55 °C	125 °C	Shrouded - 4 Wall	Tin	Board to Board Cable	Push-Pull	Surface Mount	0.079 in	2 mm	10 çin	0.25 çm	Square	Solder	Phosphor Bronze	Solder Retention
Samtec Inc. T2M-115-01-S-D-SM-DS-K	Black	5.8 mm	0.228 in	Header	All	0.079 in	2 mm	Male Pin	3.8 A	2	Liquid Crystal Polymer (LCP)	Gold	30	-55 °C	125 °C	Shrouded - 4 Wall	Tin	Board to Board Cable	Push-Pull	Surface Mount	0.079 in	2 mm	30 Áin	0.76 Ám	Square	Solder	Phosphor Bronze	Mating Flange Pick and Place
Samtec Inc. T2M-115-01-L-D-TH	Black	5.8 mm	0.228 in	Header	All	0.079 in	2 mm	Male Pin	3.8 A	2	Liquid Crystal Polymer (LCP)	Gold	30	-55 °C	125 °C	Shrouded - 4 Wall	Tin	Board to Board Cable	Push-Pull	Through Hole	0.079 in	2 mm	10 çin	0.25 çm	Square	Solder	Phosphor Bronze		0.302 in	7.67 mm	0.117 in	2.97 mm
Samtec Inc. T2M-115-01-S-D-RA	Black			Header	All	0.079 in	2 mm	Male Pin	3.8 A	2	Liquid Crystal Polymer (LCP)	Gold	30	-55 °C	125 °C	Shrouded - 4 Wall	Tin	Board to Board Cable	Push-Pull	Through Hole Right Angle	0.079 in	2 mm	30 Áin	0.76 Ám	Square	Solder	Phosphor Bronze				0.09 "	2.29 mm	7.44 mm	0.293 in
Samtec Inc. T2M-115-01-S-D-TH-DS	Black	5.8 mm	0.228 in	Header	All	0.079 in	2 mm	Male Pin	3.8 A	2	Liquid Crystal Polymer (LCP)	Gold	30	-55 °C	125 °C	Shrouded - 4 Wall	Tin	Board to Board Cable	Push-Pull	Through Hole	0.079 in	2 mm	30 Áin	0.76 Ám	Square	Solder	Phosphor Bronze	Mating Flange	0.302 in	7.67 mm	0.117 in	2.97 mm
Samtec Inc. T2M-115-01-L-D-SM-WT-K	Black	5.8 mm	0.228 in	Header	All	0.079 in	2 mm	Male Pin	3.8 A	2	Liquid Crystal Polymer (LCP)	Gold	30	-55 °C	125 °C	Shrouded - 4 Wall	Tin	Board to Board Cable	Push-Pull	Surface Mount	0.079 in	2 mm	10 çin	0.25 çm	Square	Solder	Phosphor Bronze	Pick and Place Solder Retention
Samtec Inc. T2M-115-01-S-D-SM-WT-TR	Black	5.8 mm	0.228 in	Header	All	0.079 in	2 mm	Male Pin	3.8 A	2	Liquid Crystal Polymer (LCP)	Gold	30	-55 °C	125 °C	Shrouded - 4 Wall	Tin	Board to Board Cable	Push-Pull	Surface Mount	0.079 in	2 mm	30 Áin	0.76 Ám	Square	Solder	Phosphor Bronze	Solder Retention
Samtec Inc. T2M-115-01-L-D-SM-WT-K-TR	Black	5.8 mm	0.228 in	Header	All	0.079 in	2 mm	Male Pin	3.8 A	2	Liquid Crystal Polymer (LCP)	Gold	30	-55 °C	125 °C	Shrouded - 4 Wall	Tin	Board to Board Cable	Push-Pull	Surface Mount	0.079 in	2 mm	10 çin	0.25 çm	Square	Solder	Phosphor Bronze	Pick and Place Solder Retention
Samtec Inc. T2M-115-01-L-D-RA-WT	Black			Header	All	0.079 in	2 mm	Male Pin	3.8 A	2	Liquid Crystal Polymer (LCP)	Gold	30	-55 °C	125 °C	Shrouded - 4 Wall	Tin	Board to Board Cable	Push-Pull	Through Hole Right Angle	0.079 in	2 mm	10 çin	0.25 çm	Square	Solder	Phosphor Bronze	Solder Retention			0.09 "	2.29 mm	7.44 mm	0.293 in
