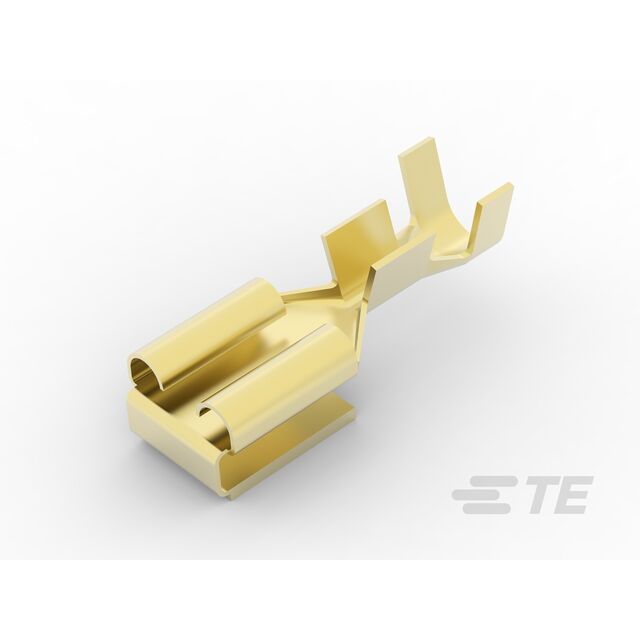

160739-1

Active

TE Connectivity Raychem Cable Protection

250 PIGGYB.FAST. ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

160739-1

Active

TE Connectivity Raychem Cable Protection

250 PIGGYB.FAST. ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	160739-1

Contact Material	Brass
Gender	Female, Male
Insulation	Non-Insulated
Insulation Diameter	4.29 mm, 3 mm
Insulation Diameter [Max]	0.169 in
Insulation Diameter [Min]	0.118 in
Length - Overall [x]	0.791 in
Length - Overall [x]	20.09 mm
Mounting Type	Free Hanging (In-Line)
Tab Length	0.303 in
Tab Length	7.7 mm
Tab Thickness	0.032 in
Tab Thickness	0.81 mm
Tab Width	6.35 mm
Tab Width	0.25 in
Terminal Type	Stacked
Termination	Crimp
Wire Gauge [Max]	18 AWG
Wire Gauge [Min]	14 AWG

FASTON 250 Series

Terminals REC .250 SER FASTON

...

Part	Contact Finish	Contact Material	Insulation	Length - Overall [x]	Length - Overall [x]	Tab Length	Tab Length	Mounting Type	Termination	Terminal Type	Tab Width	Tab Width	Gender	Tab Thickness	Tab Thickness	Wire Gauge [Max]	Wire Gauge [Min]	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter	Tab Length	Features
TE Connectivity Raychem Cable Protection 1217154-1	Tin	Brass	Non-Insulated	18.8 mm	0.74 in	7.92 mm	0.312 in	Through Hole	Solder	Standard	6.35 mm	0.25 in	Male	0.032 in	0.81 mm
TE Connectivity Raychem Cable Protection 62813-2	Tin	Brass	Non-Insulated					Free Hanging (In-Line) Right Angle	Crimp	Angled - 90° Flag	6.35 mm	0.25 in	Female	0.032 in	0.81 mm	22 AWG	17.5 AWG	0.06 in	0.1 in	2.54 mm	1.52 mm
TE Connectivity Raychem Cable Protection 62057-5	Tin	Phosphor Bronze	Non-Insulated			7.75 mm	0.305 in	Free Hanging (In-Line) Right Angle	Crimp	Angled - 90° Flag	6.35 mm	0.25 in	Female	0.032 in	0.81 mm	12 AWG	10 AWG
TE Connectivity Raychem Cable Protection 63755-1	Tin	Brass	Non-Insulated	15.8 mm	0.622 in	11.48 mm	0.452 in	Through Hole	Solder	Standard	6.35 mm	0.25 in	Male	0.032 in	0.81 mm
TE Connectivity Raychem Cable Protection 63365-2	Tin	Brass	Non-Insulated			7.75 mm	0.305 in	Free Hanging (In-Line)	Crimp	Standard	6.35 mm	0.25 in	Female	0.032 in	0.81 mm	14 AWG	10 AWG	0.15 "	0.2 "		3.81 mm	5.08 mm
TE Connectivity Raychem Cable Protection 160739-1		Brass	Non-Insulated	20.09 mm	0.791 in		7.7 mm	Free Hanging (In-Line)	Crimp	Stacked	6.35 mm	0.25 in	Female Male	0.032 in	0.81 mm	18 AWG	14 AWG	0.118 in	0.169 in				3 mm 4.29 mm	0.303 in
TE Connectivity Raychem Cable Protection 140794-2								Free Hanging (In-Line)	Crimp	Standard	6.35 mm	0.25 in	Female
TE Connectivity Raychem Cable Protection 41290		Brass	Non-Insulated					Board Chassis	Rivet Screw Stud	Angled - 90°	6.35 mm	0.25 in	Male	0.032 in	0.81 mm										2 Tabs
TE Connectivity Raychem Cable Protection 1-280079-2	Tin	Brass	Non-Insulated	19.89 mm	0.783 in		7.7 mm	Free Hanging (In-Line)	Crimp	Stacked	6.35 mm	0.25 in	Female Male	0.032 in	0.81 mm	18 AWG	13 AWG	0.118 in	0.169 in				3 mm 4.29 mm	0.303 in
TE Connectivity Raychem Cable Protection 62057-8	Tin	Phosphor Bronze	Non-Insulated			7.75 mm	0.305 in	Free Hanging (In-Line) Right Angle	Crimp	Angled - 90° Flag	6.35 mm	0.25 in	Female	0.032 in	0.81 mm	12 AWG	10 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.29
		10	$ 0.25
		25	$ 0.25
		50	$ 0.25
		100	$ 0.23
		250	$ 0.19
		500	$ 0.18
		1000	$ 0.17
		2500	$ 0.16
	Tape & Reel (TR)	204000	$ 0.13
Newark	Each	5000	$ 0.09
