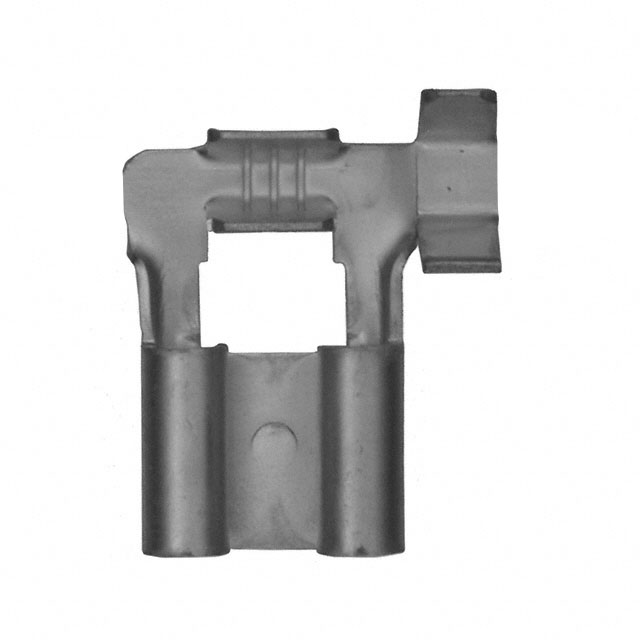

62813-2

Active

TE Connectivity Raychem Cable Protection

CONN QC RCPT 18-22AWG 0.250

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

62813-2

Active

TE Connectivity Raychem Cable Protection

CONN QC RCPT 18-22AWG 0.250

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	62813-2

Contact Finish	Tin
Contact Material	Brass
Gender	Female
Insulation	Non-Insulated
Insulation Diameter [Max]	0.1 in
Insulation Diameter [Max]	2.54 mm
Insulation Diameter [Min]	0.06 in
Insulation Diameter [Min]	1.52 mm
Mounting Type	Free Hanging (In-Line), Right Angle
Tab Thickness	0.032 in
Tab Thickness	0.81 mm
Tab Width	6.35 mm
Tab Width	0.25 in
Terminal Type	Flag, Angled - 90°
Termination	Crimp
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	17.5 AWG

FASTON 250 Series

Terminals REC .250 SER FASTON

...

Part	Contact Finish	Contact Material	Insulation	Length - Overall [x]	Length - Overall [x]	Tab Length	Tab Length	Mounting Type	Termination	Terminal Type	Tab Width	Tab Width	Gender	Tab Thickness	Tab Thickness	Wire Gauge [Max]	Wire Gauge [Min]	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter	Tab Length	Features
TE Connectivity Raychem Cable Protection 1217154-1	Tin	Brass	Non-Insulated	18.8 mm	0.74 in	7.92 mm	0.312 in	Through Hole	Solder	Standard	6.35 mm	0.25 in	Male	0.032 in	0.81 mm
TE Connectivity Raychem Cable Protection 62813-2	Tin	Brass	Non-Insulated					Free Hanging (In-Line) Right Angle	Crimp	Angled - 90° Flag	6.35 mm	0.25 in	Female	0.032 in	0.81 mm	22 AWG	17.5 AWG	0.06 in	0.1 in	2.54 mm	1.52 mm
TE Connectivity Raychem Cable Protection 62057-5	Tin	Phosphor Bronze	Non-Insulated			7.75 mm	0.305 in	Free Hanging (In-Line) Right Angle	Crimp	Angled - 90° Flag	6.35 mm	0.25 in	Female	0.032 in	0.81 mm	12 AWG	10 AWG
TE Connectivity Raychem Cable Protection 63755-1	Tin	Brass	Non-Insulated	15.8 mm	0.622 in	11.48 mm	0.452 in	Through Hole	Solder	Standard	6.35 mm	0.25 in	Male	0.032 in	0.81 mm
TE Connectivity Raychem Cable Protection 63365-2	Tin	Brass	Non-Insulated			7.75 mm	0.305 in	Free Hanging (In-Line)	Crimp	Standard	6.35 mm	0.25 in	Female	0.032 in	0.81 mm	14 AWG	10 AWG	0.15 "	0.2 "		3.81 mm	5.08 mm
TE Connectivity Raychem Cable Protection 160739-1		Brass	Non-Insulated	20.09 mm	0.791 in		7.7 mm	Free Hanging (In-Line)	Crimp	Stacked	6.35 mm	0.25 in	Female Male	0.032 in	0.81 mm	18 AWG	14 AWG	0.118 in	0.169 in				3 mm 4.29 mm	0.303 in
TE Connectivity Raychem Cable Protection 140794-2								Free Hanging (In-Line)	Crimp	Standard	6.35 mm	0.25 in	Female
TE Connectivity Raychem Cable Protection 41290		Brass	Non-Insulated					Board Chassis	Rivet Screw Stud	Angled - 90°	6.35 mm	0.25 in	Male	0.032 in	0.81 mm										2 Tabs
TE Connectivity Raychem Cable Protection 1-280079-2	Tin	Brass	Non-Insulated	19.89 mm	0.783 in		7.7 mm	Free Hanging (In-Line)	Crimp	Stacked	6.35 mm	0.25 in	Female Male	0.032 in	0.81 mm	18 AWG	13 AWG	0.118 in	0.169 in				3 mm 4.29 mm	0.303 in
TE Connectivity Raychem Cable Protection 62057-8	Tin	Phosphor Bronze	Non-Insulated			7.75 mm	0.305 in	Free Hanging (In-Line) Right Angle	Crimp	Angled - 90° Flag	6.35 mm	0.25 in	Female	0.032 in	0.81 mm	12 AWG	10 AWG
