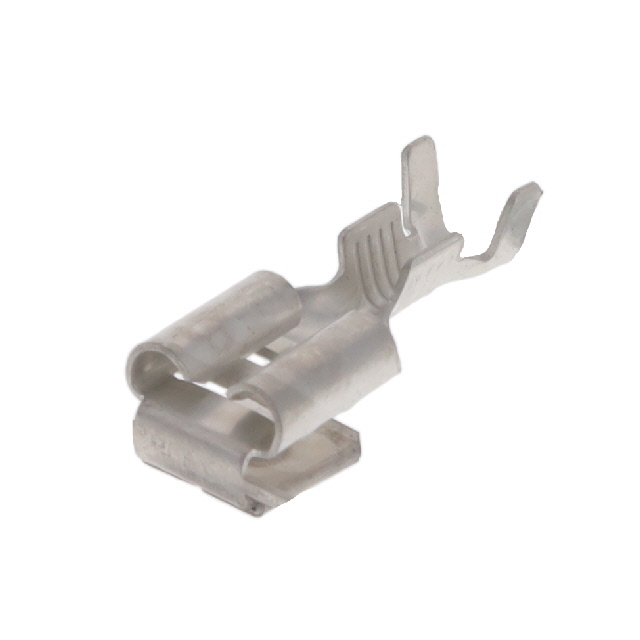

1-280079-2
ActiveTE Connectivity Raychem Cable Protection
250 FASTON,REC.,14-17AWG,TPBR
Deep-Dive with AI
Search across all available documentation for this part.
1-280079-2
ActiveTE Connectivity Raychem Cable Protection
250 FASTON,REC.,14-17AWG,TPBR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-280079-2 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Brass |
| Gender | Female, Male |
| Insulation | Non-Insulated |
| Insulation Diameter | 4.29 mm, 3 mm |
| Insulation Diameter [Max] | 0.169 in |
| Insulation Diameter [Min] | 0.118 in |
| Length - Overall [x] | 19.89 mm |
| Length - Overall [x] | 0.783 in |
| Mounting Type | Free Hanging (In-Line) |
| Tab Length | 0.303 in |
| Tab Length | 7.7 mm |
| Tab Thickness | 0.032 in |
| Tab Thickness | 0.81 mm |
| Tab Width | 6.35 mm |
| Tab Width | 0.25 in |
| Terminal Type | Stacked |
| Termination | Crimp |
| Wire Gauge [Max] | 18 AWG |
| Wire Gauge [Min] | 13 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.30 | |
| 10 | $ 0.26 | |||
| 25 | $ 0.26 | |||
| 50 | $ 0.26 | |||
| 100 | $ 0.24 | |||
| 250 | $ 0.20 | |||
| 500 | $ 0.19 | |||
| Tape & Reel (TR) | 1500 | $ 0.17 | ||
| 3000 | $ 0.17 | |||
| 7500 | $ 0.15 | |||
| 10500 | $ 0.14 | |||
| 37500 | $ 0.13 | |||
Description
General part information
FASTON 250 Series
Terminals REC .250 SER FASTON
