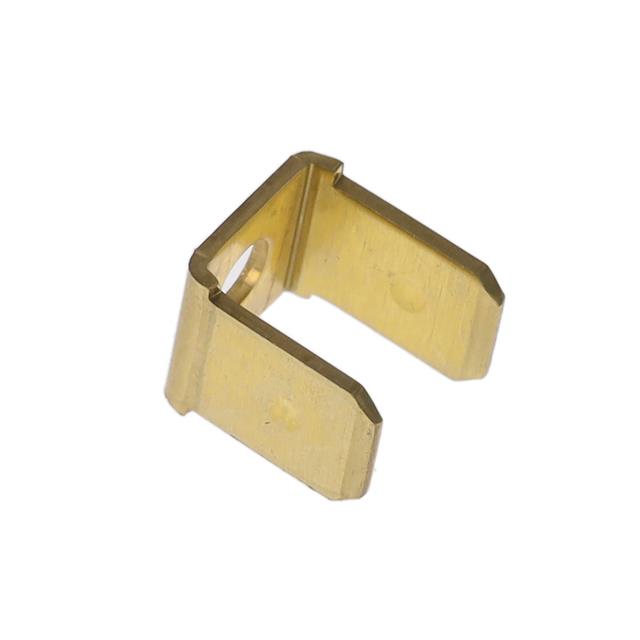

41290

Active

TE Connectivity Raychem Cable Protection

250 FASTON,TAB,BR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet FASTON Tabs +4

41290

Active

TE Connectivity Raychem Cable Protection

250 FASTON,TAB,BR

Deep-Dive with AI

DocumentsDatasheet FASTON Tabs +4

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	41290

Contact Material	Brass
Features	2 Tabs
Gender	Male
Insulation	Non-Insulated
Mounting Type	Board, Chassis
Tab Thickness	0.032 in
Tab Thickness	0.81 mm
Tab Width	6.35 mm
Tab Width	0.25 in
Terminal Type	Angled - 90°
Termination	Rivet, Screw, Stud

FASTON 250 Series

Terminals REC .250 SER FASTON

...

Part	Contact Finish	Contact Material	Insulation	Length - Overall [x]	Length - Overall [x]	Tab Length	Tab Length	Mounting Type	Termination	Terminal Type	Tab Width	Tab Width	Gender	Tab Thickness	Tab Thickness	Wire Gauge [Max]	Wire Gauge [Min]	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter	Tab Length	Features
TE Connectivity Raychem Cable Protection 1217154-1	Tin	Brass	Non-Insulated	18.8 mm	0.74 in	7.92 mm	0.312 in	Through Hole	Solder	Standard	6.35 mm	0.25 in	Male	0.032 in	0.81 mm
TE Connectivity Raychem Cable Protection 62813-2	Tin	Brass	Non-Insulated					Free Hanging (In-Line) Right Angle	Crimp	Angled - 90° Flag	6.35 mm	0.25 in	Female	0.032 in	0.81 mm	22 AWG	17.5 AWG	0.06 in	0.1 in	2.54 mm	1.52 mm
TE Connectivity Raychem Cable Protection 62057-5	Tin	Phosphor Bronze	Non-Insulated			7.75 mm	0.305 in	Free Hanging (In-Line) Right Angle	Crimp	Angled - 90° Flag	6.35 mm	0.25 in	Female	0.032 in	0.81 mm	12 AWG	10 AWG
TE Connectivity Raychem Cable Protection 63755-1	Tin	Brass	Non-Insulated	15.8 mm	0.622 in	11.48 mm	0.452 in	Through Hole	Solder	Standard	6.35 mm	0.25 in	Male	0.032 in	0.81 mm
TE Connectivity Raychem Cable Protection 63365-2	Tin	Brass	Non-Insulated			7.75 mm	0.305 in	Free Hanging (In-Line)	Crimp	Standard	6.35 mm	0.25 in	Female	0.032 in	0.81 mm	14 AWG	10 AWG	0.15 "	0.2 "		3.81 mm	5.08 mm
TE Connectivity Raychem Cable Protection 160739-1		Brass	Non-Insulated	20.09 mm	0.791 in		7.7 mm	Free Hanging (In-Line)	Crimp	Stacked	6.35 mm	0.25 in	Female Male	0.032 in	0.81 mm	18 AWG	14 AWG	0.118 in	0.169 in				3 mm 4.29 mm	0.303 in
TE Connectivity Raychem Cable Protection 140794-2								Free Hanging (In-Line)	Crimp	Standard	6.35 mm	0.25 in	Female
TE Connectivity Raychem Cable Protection 41290		Brass	Non-Insulated					Board Chassis	Rivet Screw Stud	Angled - 90°	6.35 mm	0.25 in	Male	0.032 in	0.81 mm										2 Tabs
TE Connectivity Raychem Cable Protection 1-280079-2	Tin	Brass	Non-Insulated	19.89 mm	0.783 in		7.7 mm	Free Hanging (In-Line)	Crimp	Stacked	6.35 mm	0.25 in	Female Male	0.032 in	0.81 mm	18 AWG	13 AWG	0.118 in	0.169 in				3 mm 4.29 mm	0.303 in
TE Connectivity Raychem Cable Protection 62057-8	Tin	Phosphor Bronze	Non-Insulated			7.75 mm	0.305 in	Free Hanging (In-Line) Right Angle	Crimp	Angled - 90° Flag	6.35 mm	0.25 in	Female	0.032 in	0.81 mm	12 AWG	10 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.15
		10	$ 0.13
		25	$ 0.13
		50	$ 0.12
		100	$ 0.12
		250	$ 0.09
		500	$ 0.09

Description

General part information

FASTON 250 Series

Terminals REC .250 SER FASTON

Documents

Technical documentation and resources

Datasheet

41290

Deep-Dive with AI

41290

Deep-Dive with AI

Technical Specifications

FASTON 250 Series

Pricing

Description

FASTON 250 Series

Documents

Datasheet

FASTON Tabs

Datasheet

ENG_CD_41290_AH_baseFilename.pdf

FASTON Series 187, 205, and 250 Stud Mount Tab Terminals

FASTON Quick Connect Terminals

FASTON 250 Series
