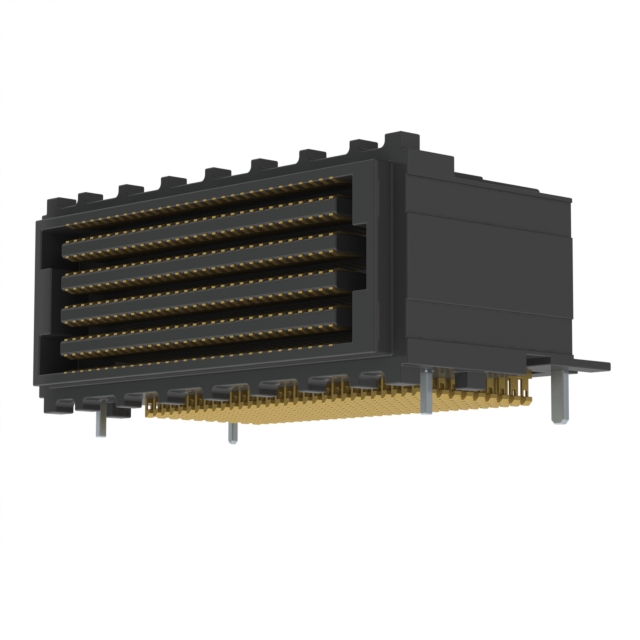

SEAF8-30-1-S-10-2-RA

Active

Samtec Inc.

CONN HD ARRAY RCPT 300P R/A SMD

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HD ARRAY RCPT 300P R/A SMD

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish	Number of Positions	Pitch [x]	Pitch [x]	Connector Type	Mated Stacking Heights	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Height Above Board	Height Above Board	Mounting Type	Features
Samtec Inc. SEAF8-30-05.0-S-08-2	Gold	240	0.8 mm	0.031 in	High Density Array Female	7 mm 10 mm	0.76 Ám	30 Áin	8	4.57 mm	0.18 in	Surface Mount
Samtec Inc. SEAF8-30-05.0-S-04-2-K	Gold	120	0.8 mm	0.031 in	High Density Array Female	7 mm 10 mm	0.76 Ám	30 Áin		4.57 mm	0.18 in	Surface Mount	Board Guide Pick and Place
Samtec Inc. SEAF8-30-1-S-10-2-RA	Gold	300	0.8 mm	0.031 in	High Density Array Female		0.76 Ám	30 Áin	10			Surface Mount Right Angle
Samtec Inc. SEAF8-30-1-S-08-2-RA	Gold	240	0.8 mm	0.031 in	High Density Array Female		0.76 Ám	30 Áin	8			Surface Mount Right Angle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	75	$ 34.29

General part information

300 Position Connector High Density Array, Female Surface Mount, Right Angle Gold
