SEAF8-30 Series

Catalog

CONN HD ARRAY RCPT 0.8MM 4X30POS

Part	Contact Finish	Height Above Board	Number of Positions	Number of Rows	Contact Finish Thickness	Pitch	Features	Mated Stacking Height Options	Mounting Type	Connector Type
Samtec Inc. SEAF8-30-05.0-S-04-3	Gold	0.18 in	120	4	30 µin	0.031 in	Board Guide	10mm 7mm	Surface Mount	FEMALE High Density Array
Samtec Inc. SEAF8-30-05.0-L-04-2-K	Gold	0.18 in	120	4	10 Ąin	0.031 in	Board Guide Pick and Place	10mm 7mm	Surface Mount	FEMALE High Density Array
Samtec Inc. SEAF8-30-05.0-S-08-2	Gold	0.18 in	240	8	30 µin	0.031 in		10mm 7mm	Surface Mount	FEMALE High Density Array

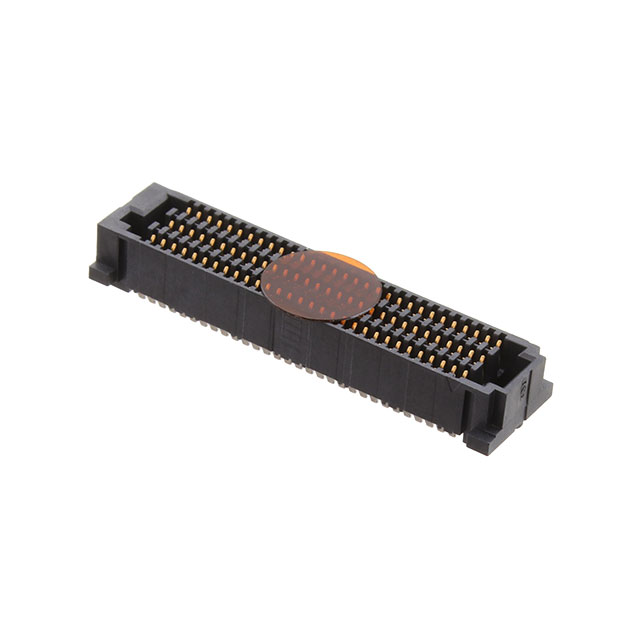

Samtec Inc. SEAF8-30-05.0-S-06-2-K	Gold	0.18 in	180	6	30 µin	0.031 in	Board Guide Pick and Place	10mm 7mm	Surface Mount	FEMALE High Density Array
Samtec Inc. SEAF8-30-05.0-S-04-2-K	Gold	0.18 in	120	4	30 µin	0.031 in	Board Guide Pick and Place	10mm 7mm	Surface Mount	FEMALE High Density Array
Samtec Inc. SEAF8-30-1-S-10-2-RA	Gold		300	10	30 µin	0.031 in			Right Angle Surface Mount	FEMALE High Density Array

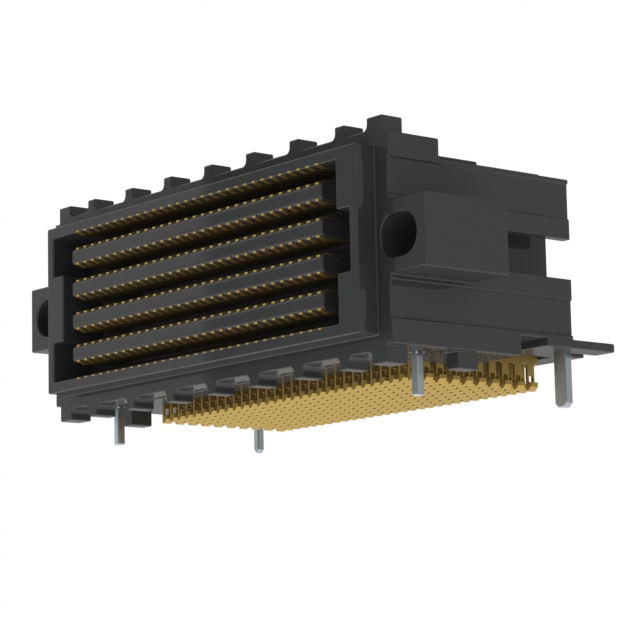

Samtec Inc. SEAF8-30-1-S-10-2-RA-GP	Gold		300	10	30 µin	0.031 in	Board Guide Mating Flange		Right Angle Surface Mount	FEMALE High Density Array
Samtec Inc. SEAF8-30-1-S-08-2-RA	Gold		240	8	30 µin	0.031 in			Right Angle Surface Mount	FEMALE High Density Array
