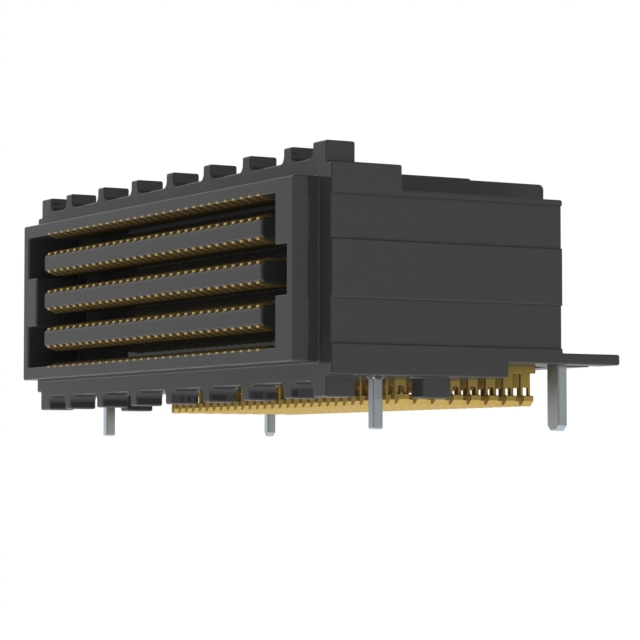

SEAF8-30-1-S-08-2-RA

Active

Samtec Inc.

CONN HD ARRAY RCPT 240P R/A SMD

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HD ARRAY RCPT 240P R/A SMD

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish	Number of Positions	Pitch [x]	Pitch [x]	Connector Type	Mated Stacking Heights	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Height Above Board	Height Above Board	Mounting Type	Features
Samtec Inc. SEAF8-30-05.0-S-08-2	Gold	240	0.8 mm	0.031 in	High Density Array Female	7 mm 10 mm	0.76 Ám	30 Áin	8	4.57 mm	0.18 in	Surface Mount
Samtec Inc. SEAF8-30-05.0-S-04-2-K	Gold	120	0.8 mm	0.031 in	High Density Array Female	7 mm 10 mm	0.76 Ám	30 Áin		4.57 mm	0.18 in	Surface Mount	Board Guide Pick and Place
Samtec Inc. SEAF8-30-1-S-10-2-RA	Gold	300	0.8 mm	0.031 in	High Density Array Female		0.76 Ám	30 Áin	10			Surface Mount Right Angle
Samtec Inc. SEAF8-30-1-S-08-2-RA	Gold	240	0.8 mm	0.031 in	High Density Array Female		0.76 Ám	30 Áin	8			Surface Mount Right Angle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

240 Position Connector High Density Array, Female Surface Mount, Right Angle Gold
