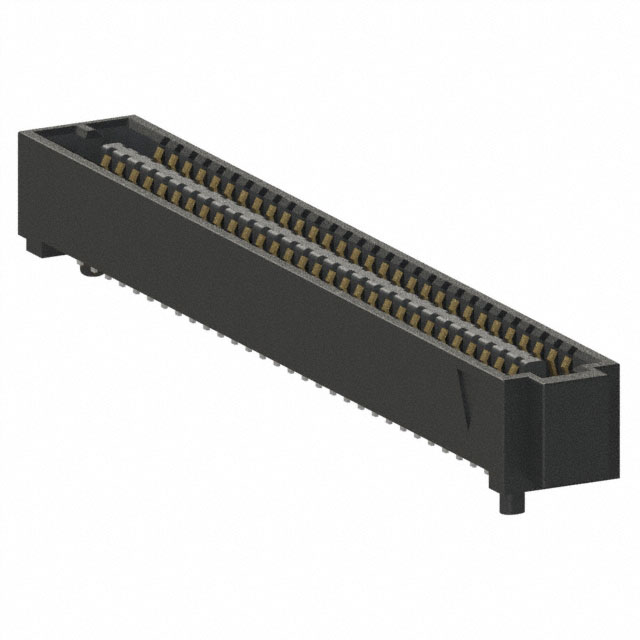

SEAF8-30-05.0-S-04-2-K
ObsoleteSamtec Inc.
CONN HD ARRAY RCPT 120P SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
SEAF8-30-05.0-S-04-2-K
ObsoleteSamtec Inc.
CONN HD ARRAY RCPT 120P SMD GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SEAF8-30-05.0-S-04-2-K |
|---|---|
| Connector Type | High Density Array, Female |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Features | Pick and Place, Board Guide |
| Height Above Board | 4.57 mm |
| Height Above Board | 0.18 in |
| Mated Stacking Heights | 10 mm, 7 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 120 |
| Pitch [x] | 0.8 mm |
| Pitch [x] | 0.031 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SEAF8-30 Series
120 Position Connector High Density Array, Female Surface Mount Gold
