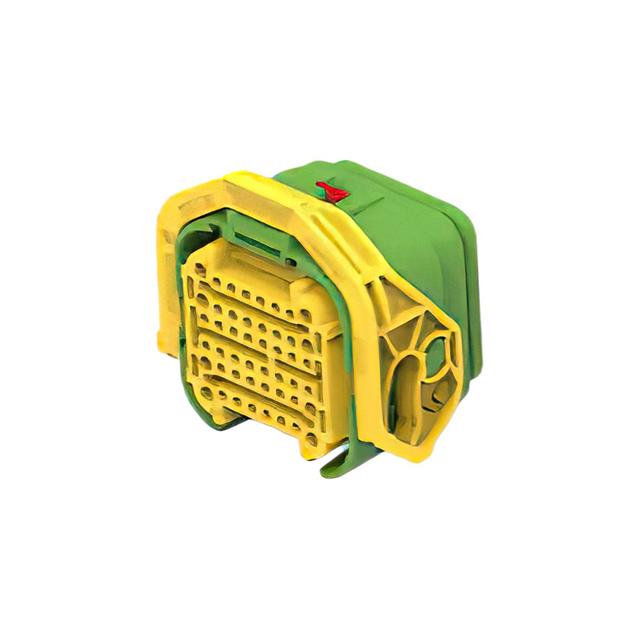

2366494-3
ActiveTE Connectivity Raychem Cable Protection
48POS,HYBRID,SOC HSG ASSY,SLD,COD C
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2366494-3 |
|---|---|
| Color | Green |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Tab |
| Fastening Type | Locking Ramp |
| Features | Sealed, Terminal Position Assurance (TPA) |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 48 |
| Number of Rows | 6 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 10.00 | |
| 10 | $ 9.79 | |||
| 25 | $ 9.53 | |||
| 50 | $ 9.17 | |||
Description
General part information
DEUTSCH NTSEAL Series
48 Position Housing, Plug, Wire-to-Wire, 1.75 mm [.068 in] Centerline, Sealable, Green, Wire & Cable, Cable Mount (Free-Hanging), DEUTSCH NTSEAL
