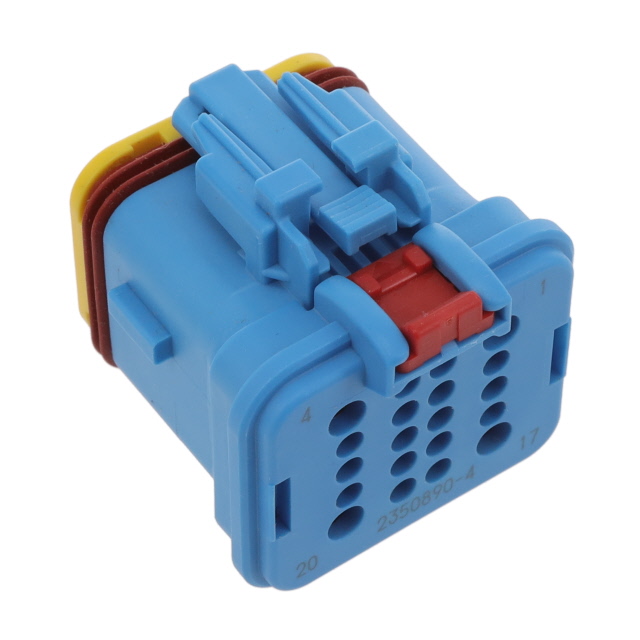

2350890-4

Active

TE Connectivity Raychem Cable Protection

CONN PLUG HSG 20POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2350890-4

Active

TE Connectivity Raychem Cable Protection

CONN PLUG HSG 20POS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2350890-4

Connector Type	Plug
Contact Termination	Crimp
Contact Type	Tab
Fastening Type	Locking Ramp
Note	Contacts Not Included
Number of Positions	20
Number of Rows	5
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C

DEUTSCH NTSEAL Series

Part	Number of Rows	Fastening Type	Number of Positions	Color	Note	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Features	Contact Type	Contact Termination	Insulation Material	Connector Type	For Use With/Related Products	Accessory Type	Pitch [x]	Pitch [x]
TE Connectivity Raychem Cable Protection 2366494-3	6	Locking Ramp	48	Green	Contacts Not Included	Free Hanging (In-Line)	125 °C	-40 °C	Sealed Terminal Position Assurance (TPA)	Tab	Crimp	Polybutylene Terephthalate (PBT) Glass Filled	Plug
TE Connectivity Raychem Cable Protection 2366494-1	6	Locking Ramp	48	Black	Contacts Not Included	Free Hanging (In-Line)	125 °C	-40 °C	Sealed Terminal Position Assurance (TPA)	Tab	Crimp	Polybutylene Terephthalate (PBT) Glass Filled	Plug
TE Connectivity Raychem Cable Protection 2-2366509-2	6	Locking Ramp	48	Gray	Contacts Not Included		125 °C	-40 °C	Sealed Terminal Position Assurance (TPA)	Tab	Crimp	Polybutylene Terephthalate (PBT) Glass Filled	Receptacle
TE Connectivity Raychem Cable Protection 2355806-1														HVIL NTS Series	Clip
TE Connectivity Raychem Cable Protection 2366494-2	6	Locking Ramp	48	Gray	Contacts Not Included	Free Hanging (In-Line)	125 °C	-40 °C	Sealed Terminal Position Assurance (TPA)	Tab	Crimp	Polybutylene Terephthalate (PBT) Glass Filled	Plug
TE Connectivity Raychem Cable Protection 2350890-3	5	Locking Ramp	20		Contacts Not Included		125 °C	-40 °C		Tab	Crimp		Plug
TE Connectivity Raychem Cable Protection 2366509-2	6	Locking Ramp	48	Gray	Contacts Not Included	Free Hanging (In-Line)	125 °C	-40 °C	Sealed Terminal Position Assurance (TPA)	Tab	Crimp	Polybutylene Terephthalate (PBT) Glass Filled	Receptacle
TE Connectivity Raychem Cable Protection 2366494-4	6	Locking Ramp	48	Blue	Contacts Not Included	Free Hanging (In-Line)	125 °C	-40 °C	Sealed Terminal Position Assurance (TPA)	Tab	Crimp	Polybutylene Terephthalate (PBT) Glass Filled	Plug
TE Connectivity Raychem Cable Protection 2350890-4	5	Locking Ramp	20		Contacts Not Included		125 °C	-40 °C		Tab	Crimp		Plug
TE Connectivity Raychem Cable Protection 2405028-2	7	Push-Pull	26	Gray		Free Hanging (In-Line)	125 °C	-40 °C	Terminal Position Lock (TPA)	Male Pin	Crimp	Polybutylene Terephthalate (PBT) Glass Filled	Receptacle			3.52 mm	0.139 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 10.11
		10	$ 9.15
		25	$ 8.90
		50	$ 8.57
		180	$ 8.52

Description

General part information

DEUTSCH NTSEAL Series

20 Rectangular Connectors - Housings Plug
