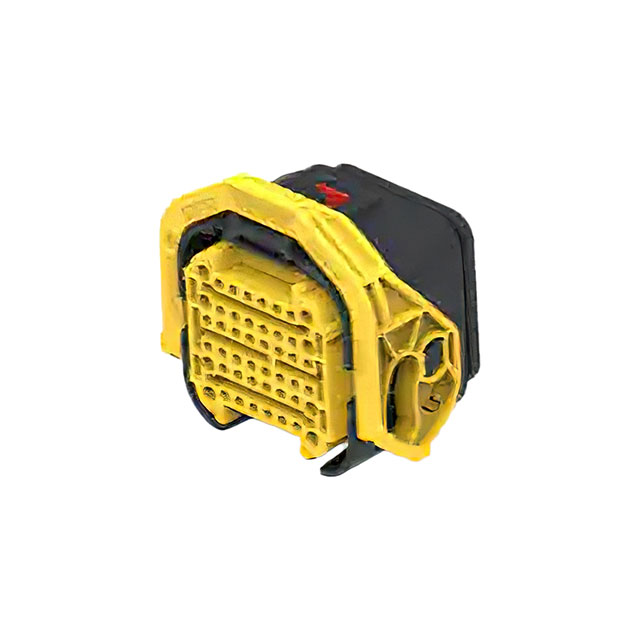

2366494-1
ActiveTE Connectivity Raychem Cable Protection
CONN PLUG HSG 48POS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2366494-1
ActiveTE Connectivity Raychem Cable Protection
CONN PLUG HSG 48POS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2366494-1 |
|---|---|
| Color | Black |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Tab |
| Fastening Type | Locking Ramp |
| Features | Sealed, Terminal Position Assurance (TPA) |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 48 |
| Number of Rows | 6 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 13.62 | |
| 10 | $ 13.34 | |||
| 25 | $ 12.98 | |||
| 50 | $ 12.34 | |||
| 120 | $ 11.14 | |||
| 360 | $ 11.07 | |||
| 600 | $ 9.65 | |||
Description
General part information
DEUTSCH NTSEAL Series
48 Rectangular Connectors - Housings Plug Black
