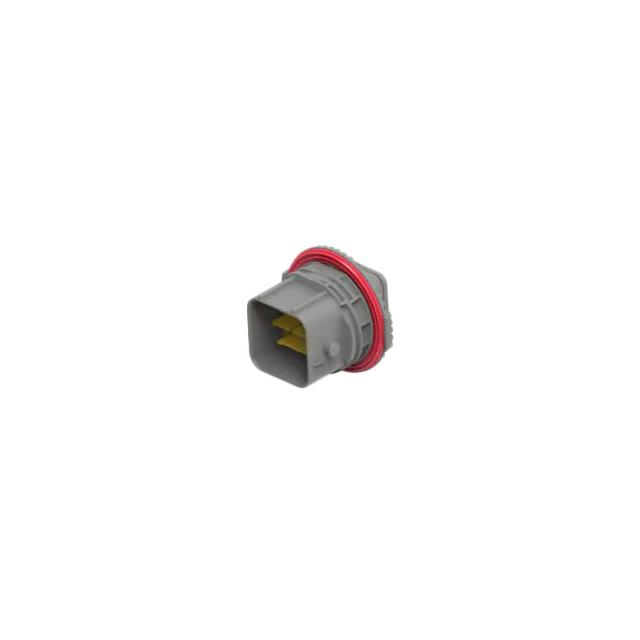

2-2366509-2
ActiveTE Connectivity Raychem Cable Protection
48POS,HYBRID,PIN HSG ASSY,SLD,COD B
Deep-Dive with AI
Search across all available documentation for this part.
2-2366509-2
ActiveTE Connectivity Raychem Cable Protection
48POS,HYBRID,PIN HSG ASSY,SLD,COD B
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2-2366509-2 |
|---|---|
| Color | Gray |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Tab |
| Fastening Type | Locking Ramp |
| Features | Sealed, Terminal Position Assurance (TPA) |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Note | Contacts Not Included |
| Number of Positions | 48 |
| Number of Rows | 6 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 11.21 | |
| 10 | $ 10.97 | |||
| 25 | $ 10.68 | |||
| 60 | $ 10.28 | |||
Description
General part information
DEUTSCH NTSEAL Series
48 Position Housing, Housing for Male Terminals, Wire-to-Wire, 3.5 mm [.138 in] Centerline, Sealable, Gray, Wire & Cable, Power, DEUTSCH NTSEAL
