BSC019N02KSGAUMA1

Obsolete

Infineon Technologies

OPTIMOS™ N-CHANNEL POWER MOSFET 20 V ; SUPERSO8 PACKAGE; 1.95 MOHM; SUPER LOGIC LEVEL

Deep-Dive with AI

Search across all available documentation for this part.

BSC019N02KSGAUMA1

Obsolete

Infineon Technologies

OPTIMOS™ N-CHANNEL POWER MOSFET 20 V ; SUPERSO8 PACKAGE; 1.95 MOHM; SUPER LOGIC LEVEL

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BSC019N02KSGAUMA1

Current - Continuous Drain (Id) @ 25°C	30 A, 100 A
Drain to Source Voltage (Vdss)	20 V
Drive Voltage (Max Rds On, Min Rds On)	4.5 V, 2.5 V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs [Max]	85 nC
Input Capacitance (Ciss) (Max) @ Vds	13000 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	8-PowerTDFN
Power Dissipation (Max)	104 W, 2.8 W
Rds On (Max) @ Id, Vgs [Max]	1.95 mOhm

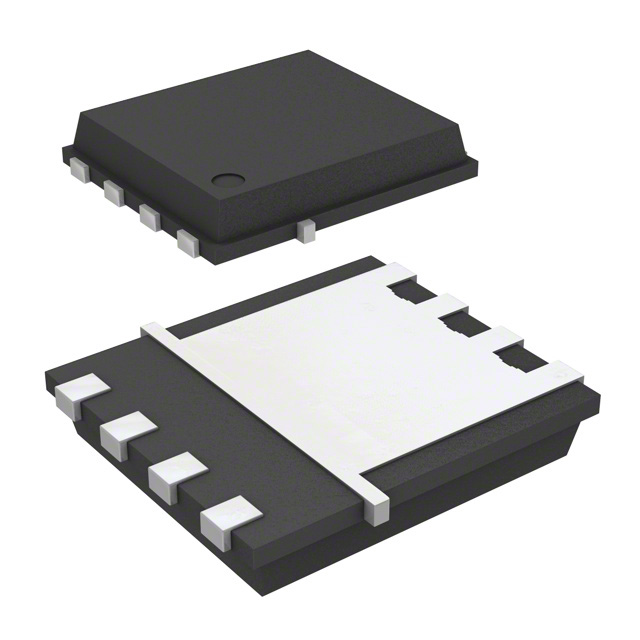

Supplier Device Package	PG-TDSON-8-1
Technology	MOSFET (Metal Oxide)
Vgs (Max)	12 V
Vgs(th) (Max) @ Id	1.2 V

BSC019 Series

Part	Drive Voltage (Max Rds On, Min Rds On)	Power Dissipation (Max)	Input Capacitance (Ciss) (Max) @ Vds	Gate Charge (Qg) (Max) @ Vgs	Vgs(th) (Max) @ Id	Vgs (Max)	Current - Continuous Drain (Id) @ 25°C	Supplier Device Package	Drain to Source Voltage (Vdss)	FET Type	Rds On (Max) @ Id, Vgs	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Mounting Type	Technology	Gate Charge (Qg) (Max) @ Vgs [Max]	Rds On (Max) @ Id, Vgs [Max]	Input Capacitance (Ciss) (Max) @ Vds [Max]
Infineon Technologies BSC019N04NSGATMA1	10 V	2.5 W 125 W	8800 pF	108 nC	4 V	20 V	30 A 100 A	PG-TDSON-8-1	40 V	N-Channel	1.9 mOhm	-55 °C	150 °C	8-PowerTDFN	Surface Mount	MOSFET (Metal Oxide)
Infineon Technologies BSC019N06NSATMA1	6 V 10 V	136 W	5250 pF		3.3 V	20 V	100 A	PG-TDSON-8 FL	60 V	N-Channel	1.95 mOhm	-55 °C	175 ░C	8-PowerTDFN	Surface Mount	MOSFET (Metal Oxide)	77 nC
Infineon Technologies BSC019N02KSGAUMA1	2.5 V 4.5 V	2.8 W 104 W	13000 pF		1.2 V	12 V	30 A 100 A	PG-TDSON-8-1	20 V	N-Channel		-55 °C	150 °C	8-PowerTDFN	Surface Mount	MOSFET (Metal Oxide)	85 nC	1.95 mOhm
Infineon Technologies BSC019N04LSATMA1	4.5 V 10 V	2.5 W 78 W			2 V	20 V	27 A 100 A	PG-TDSON-8-1	40 V	N-Channel	1.9 mOhm	-55 °C	175 ░C	8-PowerTDFN	Surface Mount	MOSFET (Metal Oxide)	41 nC		2900 pF
Infineon Technologies BSC019N04LSTATMA1	4.5 V 10 V	94 W	4060 pF	57 nC	2 V	20 V	28 A 161 A		40 V	N-Channel	1.9 mOhm					MOSFET (Metal Oxide)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

BSC019 Series

Infineon’s innovative products serve the market needs throughout the whole energy supply chain. OptiMOS™ is the market leader in highly efficient solutions for power generation (e.g. solar microinverter), power supply (e.g. server and telecom) and power consumption (e.g. electric vehicle).

Documents

Technical documentation and resources

No documents available
