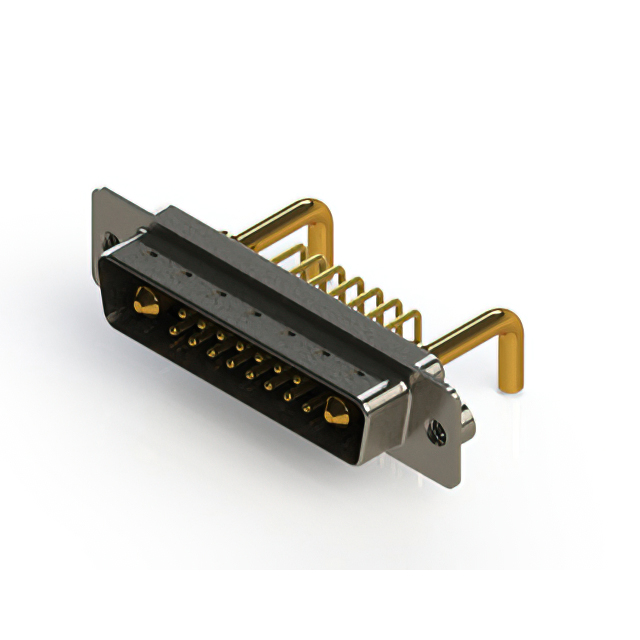

COMBINATION LAYOUT D SUB CONNECTOR, 629C SERIES, DB-17W2, PLUG, 17 CONTACTS, 15 SIGNAL, 2 POWER
629-17W2650-2T2
ActiveEDAC Inc.
COMBINATION LAYOUT D SUB CONNECTOR, 629C SERIES, DB-17W2, PLUG, 17 CONTACTS, 15 SIGNAL, 2 POWER
Description
General part information
629-17W Series
17 (15 + 2 Power) Position D-Sub, Combo Plug, Male Pins Connector
Technical Specifications
Parameters and characteristics for this part
| Specification | 629-17W2650-2T2 |
|---|---|
| Backset Spacing | 0.37 in |
| Color | Black |
| Connector Layout | DB, B |
| Connector Style | Combo, D-Sub |
| Connector Type | Male Pins, Plug |
| Contact Finish | Gold |
| Contact Finish Thickness | 30 µin |
| Contact Material | Copper Alloy |
| Contact Type | Signal, Power |
| Current Rating Options | 5A, 20A |
| Dielectric Material | Polyester Thermoplastic |
| Finish | Tin Plated |
| Flange Feature | Shell (4-40), Housing |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions (Normal) | 15 |
| Number of Positions (Power) | 2 |
| Number of Positions (Total) | 17 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Part Code | 17W2 |
| Shell Material | Steel |
| Shell Size | 3 |
| Termination | Solder |
| Voltage Rating | 125 V |
