629-17W2250-3NC

Active

EDAC Inc.

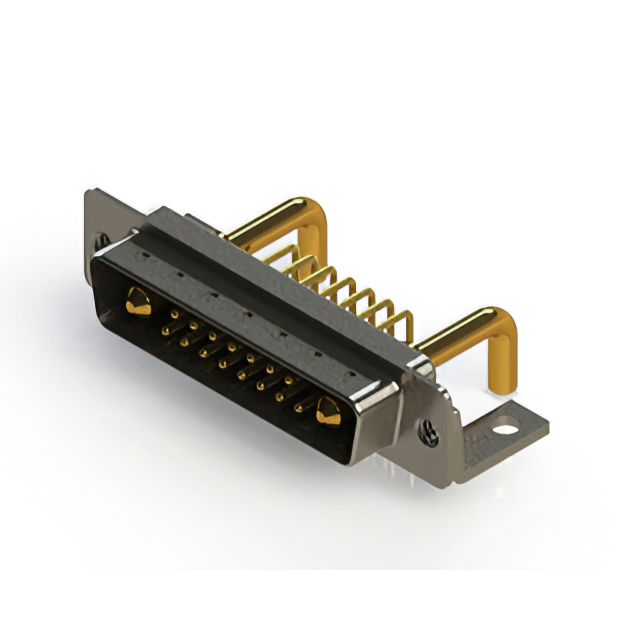

CONN D-SUB PLUG 17POS R/A SLDR

629-17W2250-3NC

Active

EDAC Inc.

CONN D-SUB PLUG 17POS R/A SLDR

Description Specifications Series Pricing CAD Documents

Description

General part information

629-17W Series

17 (15 + 2 Power) Position D-Sub, Combo Plug, Male Pins Connector

Technical Specifications

Parameters and characteristics for this part

Specification	629-17W2250-3NC

Backset Spacing	0.37 in
Color	Black
Connector Layout	DB, B
Connector Style	Combo, D-Sub
Connector Type	Male Pins, Plug
Contact Finish	Gold
Contact Finish Thickness	0
Contact Finish Thickness	Flash
Contact Finish Thickness (string set options)	Flash
Contact Material	Copper Alloy
Contact Type	Signal, Power
Current Rating Options	30A, 5A
Dielectric Material	Polyester Thermoplastic
Features	Grounding Indents, Mounting Brackets
Finish	Nickel Plated
Flange Feature	Shell (M3), Housing
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions (Normal)	15
Number of Positions (Power)	2
Number of Positions (Total)	17
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Part Code	17W2
Shell Material	Steel
Shell Size	3
Termination	Solder
Voltage Rating	125 V

629-17W Series

...

Part	Contact Finish	Termination	Current Rating Options	Connector Style	Mounting Type	Backset Spacing	Contact Finish Thickness	Features	Material Flammability Rating	Number of Positions (Power)	Number of Positions (Normal)	Number of Positions (Total)	Shell Material	Finish	Contact Type	Connector Type	Number of Rows	Shell Size	Connector Layout	Part Code	Flange Feature	Voltage Rating	Color	Operating Temperature (Max)	Operating Temperature (Min)	Dielectric Material	Contact Material	Contact Finish Thickness (string set options)	Contact Finish Thickness
EDAC Inc. 629-17W2640-2N6	Gold	Solder	20A 5A	Combo D-Sub	Right Angle Through Hole	0.37 in	30 µin	Board Lock Grounding Indents	UL94 V-0	2	15	17	Steel	Nickel Plated	Power Signal	Male Pins Plug	2	3	B DB	17W2	Mating Side (4-40)	125 V	Black	125 °C	-55 °C	Polyester Thermoplastic	Copper Alloy
EDAC Inc. 629-17W2650-2T2	Gold	Solder	20A 5A	Combo D-Sub	Right Angle Through Hole	0.37 in	30 µin		UL94 V-0	2	15	17	Steel	Tin Plated	Power Signal	Male Pins Plug	2	3	B DB	17W2	Housing Shell (4-40)	125 V	Black	125 °C	-55 °C	Polyester Thermoplastic	Copper Alloy
EDAC Inc. 629-17W2650-4N4	Gold	Solder	40A 5A	Combo D-Sub	Right Angle Through Hole	0.37 in	30 µin	Grounding Indents Mounting Brackets	UL94 V-0	2	15	17	Steel	Nickel Plated	Power Signal	Male Pins Plug	2	3	B DB	17W2	Housing Shell (4-40)	125 V	Black	125 °C	-55 °C	Polyester Thermoplastic	Copper Alloy
EDAC Inc. 629-17W2640-1ND	Gold	Solder	10A 5A	Combo D-Sub	Right Angle Through Hole	0.37 in	30 µin	Board Lock Grounding Indents Mounting Brackets	UL94 V-0	2	15	17	Steel	Nickel Plated	Power Signal	Male Pins Plug	2	3	B DB	17W2	Mating Side (M3)	125 V	Black	125 °C	-55 °C	Polyester Thermoplastic	Copper Alloy
EDAC Inc. 629-17W5650-4N3	Gold	Solder	40A 5A	Combo D-Sub	Right Angle Through Hole	0.37 in	30 µin	Board Lock Grounding Indents Mounting Brackets	UL94 V-0	5	12	17	Steel	Nickel Plated	Power Signal	Male Pins Plug	2	4	C DC	17W5	Housing Shell (4-40)	125 V	Black	125 °C	-55 °C	Polyester Thermoplastic	Copper Alloy
EDAC Inc. 629-17W5240-1T5	Gold	Solder	10A 5A	Combo D-Sub	Right Angle Through Hole	0.37 in	0	Board Lock Grounding Indents Mounting Brackets	UL94 V-0	5	12	17	Steel	Tin Plated	Power Signal	Male Pins Plug	2	4	C DC	17W5	Mating Side (4-40)	125 V	Black	125 °C	-55 °C	Polyester Thermoplastic	Copper Alloy	Flash	Flash
EDAC Inc. 629-17W2640-1T4	Gold	Solder	10A 5A	Combo D-Sub	Right Angle Through Hole	0.37 in	30 µin	Grounding Indents Mounting Brackets	UL94 V-0	2	15	17	Steel	Tin Plated	Power Signal	Male Pins Plug	2	3	B DB	17W2	Housing Shell (4-40)	125 V	Black	125 °C	-55 °C	Polyester Thermoplastic	Copper Alloy
EDAC Inc. 629-17W2250-3NC	Gold	Solder	30A 5A	Combo D-Sub	Right Angle Through Hole	0.37 in	0	Grounding Indents Mounting Brackets	UL94 V-0	2	15	17	Steel	Nickel Plated	Power Signal	Male Pins Plug	2	3	B DB	17W2	Housing Shell (M3)	125 V	Black	125 °C	-55 °C	Polyester Thermoplastic	Copper Alloy	Flash	Flash
EDAC Inc. 629-17W5650-4N6	Gold	Solder	40A 5A	Combo D-Sub	Right Angle Through Hole	0.37 in	30 µin	Board Lock Grounding Indents	UL94 V-0	5	12	17	Steel	Nickel Plated	Power Signal	Male Pins Plug	2	4	C DC	17W5	Mating Side (4-40)	125 V	Black	125 °C	-55 °C	Polyester Thermoplastic	Copper Alloy
EDAC Inc. 629-17W2250-4TA	Gold	Solder	40A 5A	Combo D-Sub	Right Angle Through Hole	0.37 in	0	Grounding Indents	UL94 V-0	2	15	17	Steel	Tin Plated	Power Signal	Male Pins Plug	2	3	B DB	17W2	Board Side (M3)	125 V	Black	125 °C	-55 °C	Polyester Thermoplastic	Copper Alloy	Flash	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

629-17W2250-3NC | Datasheet
