629-17W2650-4N4

Active

EDAC Inc.

CONN D-SUB PLUG 17POS R/A SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

629-17W2650-4N4

Active

EDAC Inc.

CONN D-SUB PLUG 17POS R/A SOLDER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	629-17W2650-4N4

Backset Spacing	9.4 mm
Backset Spacing	0.37 in
Color	Black
Connector Style	D-Sub, Combo
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	40 A, 5 A
Dielectric Material	Polyester Thermoplastic
Features	Grounding Indents, Mounting Brackets
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions [custom]	15
Number of Positions [custom]	2
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	17W2, 3 (DB, B)
Termination	Solder
Voltage Rating	125 VDC

629-17W Series

...

Part	Backset Spacing	Backset Spacing	Current Rating (Amps)	Termination	Contact Finish Thickness	Contact Finish Thickness	Color	Shell Material, Finish	Mounting Type	Contact Material	Connector Style	Number of Positions [custom]	Number of Positions [custom]	Material Flammability Rating	Features	Contact Type	Dielectric Material	Voltage Rating	Number of Rows	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Flange Feature	Shell Size, Connector Layout	Connector Type	Current Rating (Amps)	Number of Positions [custom]	Contact Finish Thickness
EDAC Inc. 629-17W2640-2N6	9.4 mm	0.37 in	5 A 20 A	Solder	0.76 Ám	30 Áin	Black	Nickel Plated Steel	Through Hole Right Angle	Copper Alloy	Combo D-Sub	15	2	UL94 V-0	Board Lock Grounding Indents	Signal and Power	Polyester Thermoplastic	125 VDC	2	Gold	-55 °C	125 °C	4-40	17W2 3 (DB B)	Male Pins Plug
EDAC Inc. 629-17W2650-2T2	9.4 mm	0.37 in	5 A 20 A	Solder	0.76 Ám	30 Áin	Black		Through Hole Right Angle	Copper Alloy	Combo D-Sub	15	2	UL94 V-0		Signal and Power	Polyester Thermoplastic	125 VDC	2	Gold	-55 °C	125 °C	Housing/Shell (4-40)	17W2 3 (DB B)	Male Pins Plug
EDAC Inc. 629-17W2650-4N4	9.4 mm	0.37 in	5 A 40 A	Solder	0.76 Ám	30 Áin	Black	Nickel Plated Steel	Through Hole Right Angle	Copper Alloy	Combo D-Sub	15	2	UL94 V-0	Grounding Indents Mounting Brackets	Signal and Power	Polyester Thermoplastic	125 VDC	2	Gold	-55 °C	125 °C	Housing/Shell (4-40)	17W2 3 (DB B)	Male Pins Plug
EDAC Inc. 629-17W2640-1ND	9.4 mm	0.37 in		Solder	0.76 Ám	30 Áin	Black	Nickel Plated Steel	Through Hole Right Angle	Copper Alloy	Combo D-Sub	15	2	UL94 V-0	Board Lock Grounding Indents Mounting Brackets	Signal and Power	Polyester Thermoplastic	125 VDC	2	Gold	-55 °C	125 °C	M3	17W2 3 (DB B)	Male Pins Plug	10A 5A
EDAC Inc. 629-17W5650-4N3	9.4 mm	0.37 in	5 A 40 A	Solder	0.76 Ám	30 Áin	Black	Nickel Plated Steel	Through Hole Right Angle	Copper Alloy	Combo D-Sub		5	UL94 V-0	Board Lock Grounding Indents Mounting Brackets	Signal and Power	Polyester Thermoplastic	125 VDC	2	Gold	-55 °C	125 °C	Housing/Shell (4-40)	17W5 4 (DC C)	Male Pins Plug		12
EDAC Inc. 629-17W5240-1T5	9.4 mm	0.37 in		Solder			Black		Through Hole Right Angle	Copper Alloy	Combo D-Sub		5	UL94 V-0	Board Lock Grounding Indents Mounting Brackets	Signal and Power	Polyester Thermoplastic	125 VDC	2	Gold	-55 °C	125 °C	4-40	17W5 4 (DC C)	Male Pins Plug	10A 5A	12	Flash
EDAC Inc. 629-17W2640-1T4	9.4 mm	0.37 in		Solder	0.76 Ám	30 Áin	Black		Through Hole Right Angle	Copper Alloy	Combo D-Sub	15	2	UL94 V-0	Grounding Indents Mounting Brackets	Signal and Power	Polyester Thermoplastic	125 VDC	2	Gold	-55 °C	125 °C	Housing/Shell (4-40)	17W2 3 (DB B)	Male Pins Plug	10A 5A
EDAC Inc. 629-17W2250-3NC	9.4 mm	0.37 in	5 A 30 A	Solder			Black	Nickel Plated Steel	Through Hole Right Angle	Copper Alloy	Combo D-Sub	15	2	UL94 V-0	Grounding Indents Mounting Brackets	Signal and Power	Polyester Thermoplastic	125 VDC	2	Gold	-55 °C	125 °C	Housing/Shell (M3)	17W2 3 (DB B)	Male Pins Plug			Flash
EDAC Inc. 629-17W5650-4N6	9.4 mm	0.37 in	5 A 40 A	Solder	0.76 Ám	30 Áin	Black	Nickel Plated Steel	Through Hole Right Angle	Copper Alloy	Combo D-Sub		5	UL94 V-0	Board Lock Grounding Indents	Signal and Power	Polyester Thermoplastic	125 VDC	2	Gold	-55 °C	125 °C	4-40	17W5 4 (DC C)	Male Pins Plug		12
EDAC Inc. 629-17W2250-4TA	9.4 mm	0.37 in	5 A 40 A	Solder			Black		Through Hole Right Angle	Copper Alloy	Combo D-Sub	15	2	UL94 V-0	Grounding Indents	Signal and Power	Polyester Thermoplastic	125 VDC	2	Gold	-55 °C	125 °C	Board Side (M3)	17W2 3 (DB B)	Male Pins Plug			Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	250	$ 15.48

Description

General part information

629-17W Series

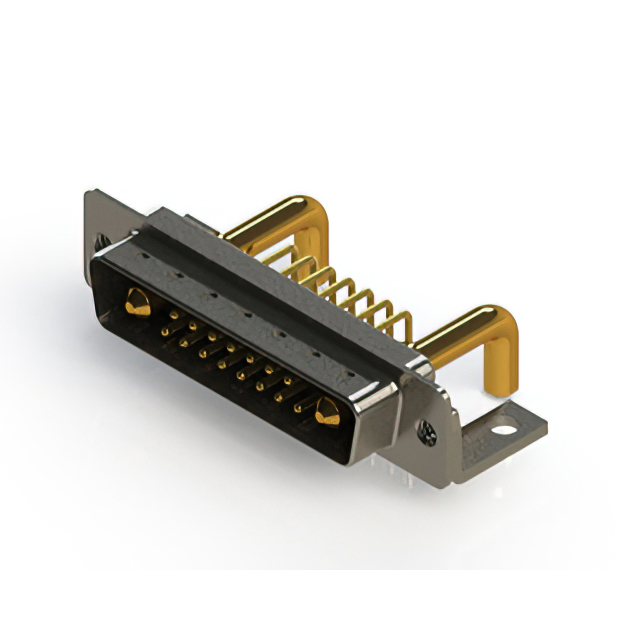

17 (15 + 2 Power) Position D-Sub, Combo Plug, Male Pins Connector
