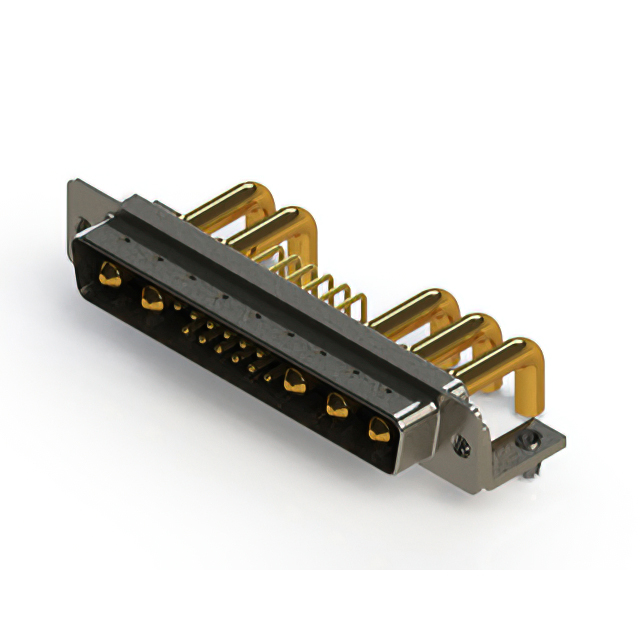

629-17W5650-4N3
ActiveEDAC Inc.
CONN D-SUB PLUG 17POS R/A SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
629-17W5650-4N3
ActiveEDAC Inc.
CONN D-SUB PLUG 17POS R/A SLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 629-17W5650-4N3 |
|---|---|
| Backset Spacing | 9.4 mm |
| Backset Spacing | 0.37 in |
| Color | Black |
| Connector Style | D-Sub, Combo |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Copper Alloy |
| Contact Type | Signal and Power |
| Current Rating (Amps) | 40 A, 5 A |
| Dielectric Material | Polyester Thermoplastic |
| Features | Grounding Indents, Mounting Brackets, Board Lock |
| Flange Feature | Housing/Shell (4-40) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions [custom] | 5 |
| Number of Positions [custom] | 12 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 4 (DC, C), 17W5 |
| Termination | Solder |
| Voltage Rating | 125 VDC |
629-17W Series
...
| Part | Backset Spacing | Backset Spacing | Current Rating (Amps) | Termination | Contact Finish Thickness | Contact Finish Thickness | Color | Shell Material, Finish | Mounting Type | Contact Material | Connector Style | Number of Positions [custom] | Number of Positions [custom] | Material Flammability Rating | Features | Contact Type | Dielectric Material | Voltage Rating | Number of Rows | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] | Flange Feature | Shell Size, Connector Layout | Connector Type | Current Rating (Amps) | Number of Positions [custom] | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 9.4 mm | 0.37 in | 5 A 20 A | Solder | 0.76 Ám | 30 Áin | Black | Nickel Plated Steel | Through Hole Right Angle | Copper Alloy | Combo D-Sub | 15 | 2 | UL94 V-0 | Board Lock Grounding Indents | Signal and Power | Polyester Thermoplastic | 125 VDC | 2 | Gold | -55 °C | 125 °C | 4-40 | 17W2 3 (DB B) | Male Pins Plug | |||
EDAC Inc. | 9.4 mm | 0.37 in | 5 A 20 A | Solder | 0.76 Ám | 30 Áin | Black | Through Hole Right Angle | Copper Alloy | Combo D-Sub | 15 | 2 | UL94 V-0 | Signal and Power | Polyester Thermoplastic | 125 VDC | 2 | Gold | -55 °C | 125 °C | Housing/Shell (4-40) | 17W2 3 (DB B) | Male Pins Plug | |||||
EDAC Inc. | 9.4 mm | 0.37 in | 5 A 40 A | Solder | 0.76 Ám | 30 Áin | Black | Nickel Plated Steel | Through Hole Right Angle | Copper Alloy | Combo D-Sub | 15 | 2 | UL94 V-0 | Grounding Indents Mounting Brackets | Signal and Power | Polyester Thermoplastic | 125 VDC | 2 | Gold | -55 °C | 125 °C | Housing/Shell (4-40) | 17W2 3 (DB B) | Male Pins Plug | |||
EDAC Inc. | 9.4 mm | 0.37 in | Solder | 0.76 Ám | 30 Áin | Black | Nickel Plated Steel | Through Hole Right Angle | Copper Alloy | Combo D-Sub | 15 | 2 | UL94 V-0 | Board Lock Grounding Indents Mounting Brackets | Signal and Power | Polyester Thermoplastic | 125 VDC | 2 | Gold | -55 °C | 125 °C | M3 | 17W2 3 (DB B) | Male Pins Plug | 10A 5A | |||
EDAC Inc. | 9.4 mm | 0.37 in | 5 A 40 A | Solder | 0.76 Ám | 30 Áin | Black | Nickel Plated Steel | Through Hole Right Angle | Copper Alloy | Combo D-Sub | 5 | UL94 V-0 | Board Lock Grounding Indents Mounting Brackets | Signal and Power | Polyester Thermoplastic | 125 VDC | 2 | Gold | -55 °C | 125 °C | Housing/Shell (4-40) | 17W5 4 (DC C) | Male Pins Plug | 12 | |||
EDAC Inc. | 9.4 mm | 0.37 in | Solder | Black | Through Hole Right Angle | Copper Alloy | Combo D-Sub | 5 | UL94 V-0 | Board Lock Grounding Indents Mounting Brackets | Signal and Power | Polyester Thermoplastic | 125 VDC | 2 | Gold | -55 °C | 125 °C | 4-40 | 17W5 4 (DC C) | Male Pins Plug | 10A 5A | 12 | Flash | |||||
EDAC Inc. | 9.4 mm | 0.37 in | Solder | 0.76 Ám | 30 Áin | Black | Through Hole Right Angle | Copper Alloy | Combo D-Sub | 15 | 2 | UL94 V-0 | Grounding Indents Mounting Brackets | Signal and Power | Polyester Thermoplastic | 125 VDC | 2 | Gold | -55 °C | 125 °C | Housing/Shell (4-40) | 17W2 3 (DB B) | Male Pins Plug | 10A 5A | ||||
EDAC Inc. | 9.4 mm | 0.37 in | 5 A 30 A | Solder | Black | Nickel Plated Steel | Through Hole Right Angle | Copper Alloy | Combo D-Sub | 15 | 2 | UL94 V-0 | Grounding Indents Mounting Brackets | Signal and Power | Polyester Thermoplastic | 125 VDC | 2 | Gold | -55 °C | 125 °C | Housing/Shell (M3) | 17W2 3 (DB B) | Male Pins Plug | Flash | ||||
EDAC Inc. | 9.4 mm | 0.37 in | 5 A 40 A | Solder | 0.76 Ám | 30 Áin | Black | Nickel Plated Steel | Through Hole Right Angle | Copper Alloy | Combo D-Sub | 5 | UL94 V-0 | Board Lock Grounding Indents | Signal and Power | Polyester Thermoplastic | 125 VDC | 2 | Gold | -55 °C | 125 °C | 4-40 | 17W5 4 (DC C) | Male Pins Plug | 12 | |||
EDAC Inc. | 9.4 mm | 0.37 in | 5 A 40 A | Solder | Black | Through Hole Right Angle | Copper Alloy | Combo D-Sub | 15 | 2 | UL94 V-0 | Grounding Indents | Signal and Power | Polyester Thermoplastic | 125 VDC | 2 | Gold | -55 °C | 125 °C | Board Side (M3) | 17W2 3 (DB B) | Male Pins Plug | Flash |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 250 | $ 29.58 | |
Description
General part information
629-17W Series
17 (12 + 5 Power) Position D-Sub, Combo Plug, Male Pins Connector
