BNC7T-J-P-GN-RA-BH2D
ActiveSamtec Inc.

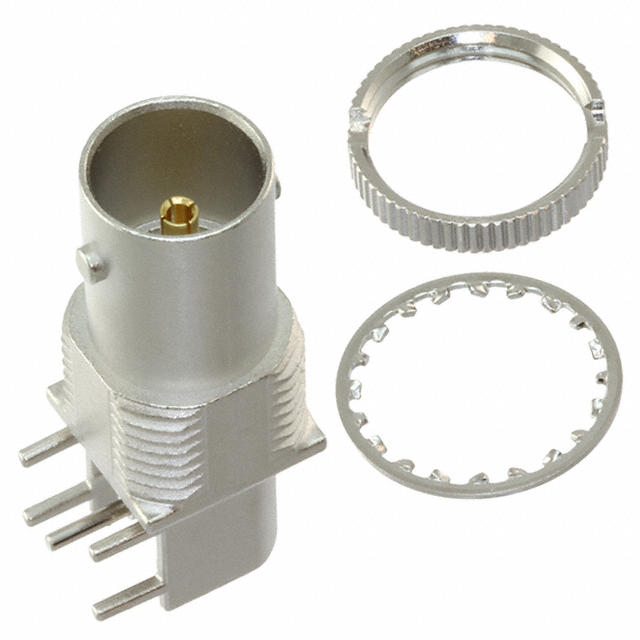

RF / COAXIAL CONNECTOR, BNC COAXIAL, RIGHT ANGLE BULKHEAD JACK, THROUGH HOLE RIGHT ANGLE, 75 OHM
Deep-Dive with AI
Search across all available documentation for this part.
BNC7T-J-P-GN-RA-BH2D
ActiveSamtec Inc.
RF / COAXIAL CONNECTOR, BNC COAXIAL, RIGHT ANGLE BULKHEAD JACK, THROUGH HOLE RIGHT ANGLE, 75 OHM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BNC7T-J-P-GN-RA-BH2D |
|---|---|
| Body Finish | Nickel |
| Body Material | Zinc |
| Center Contact Material | Copper Alloy |
| Center Contact Plating | Gold |
| Connector Style | BNC |
| Connector Type | Female Socket, Jack |
| Contact Termination | Solder |
| Dielectric Material | Polymethylpentene (PMP) |
| Fastening Type | Bayonet Lock |
| Frequency - Max [Max] | 12 GHz |
| Housing Color | Silver |
| Impedance | 75 Ohms |
| Includes | 1 Nut, 1 Connector, 1 Lockwasher |
| Mounting Feature | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Right Angle, Panel Mount |
| Number of Ports | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Solder |
| Voltage Rating | 500 V |
BNC7T-J Series
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Body Material | Center Contact Plating | Mounting Feature | Impedance | Shield Termination | Frequency - Max [Max] | Fastening Type | Body Finish | Housing Color | Connector Style | Mounting Type | Dielectric Material | Number of Ports | Includes | Connector Type | Center Contact Material | Voltage Rating | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Samtec Inc. | 125 °C | -65 ░C | Brass | Gold | Bulkhead - Front Side Nut | 75 Ohms | Solder | 12 GHz | Bayonet Lock | Nickel | Silver | BNC | Board Edge End Launch Panel Mount | Polytetrafluoroethylene (PTFE) | 1 | 1 Connector 1 Lockwasher 1 Nut | Female Socket Jack | Copper Alloy | 500 V | Solder |
Samtec Inc. | 125 °C | -65 ░C | Brass | Gold | Bulkhead - Front Side Nut | 75 Ohms | Solder | 12 GHz | Bayonet Lock | Nickel | Silver | BNC | Board Edge End Launch Panel Mount | Polytetrafluoroethylene (PTFE) | 1 | 1 Connector 1 Lockwasher 1 Nut | Female Socket Jack | Copper Alloy | 500 V | Solder |
Samtec Inc. | 125 °C | -65 ░C | Brass | Gold | Bulkhead - Front Side Nut | 75 Ohms | Solder | 12 GHz | Bayonet Lock | Nickel | Silver | BNC | Board Edge End Launch Panel Mount | Polytetrafluoroethylene (PTFE) | 1 | 1 Connector 1 Lockwasher 1 Nut | Female Socket Jack | Copper Alloy | 500 V | Solder |
Samtec Inc. | 125 °C | -65 ░C | Brass | Gold | Bulkhead - Front Side Nut | 75 Ohms | Solder | 12 GHz | Bayonet Lock | Nickel | Silver | BNC | Board Edge End Launch Panel Mount | Polytetrafluoroethylene (PTFE) | 1 | 1 Connector 1 Lockwasher 1 Nut | Female Socket Jack | Copper Alloy | 500 V | Solder |
Samtec Inc. | 125 °C | -65 ░C | Brass | Gold | 75 Ohms | Solder | 12 GHz | Bayonet Lock | Nickel | Silver | BNC | Through Hole | Polytetrafluoroethylene (PTFE) | 1 | Female Socket Jack | Copper Alloy | 500 V | Solder | ||
Samtec Inc. | 125 °C | -65 ░C | Brass | Gold | 75 Ohms | Solder | 12 GHz | Bayonet Lock | Nickel | Silver | BNC | Through Hole | Polytetrafluoroethylene (PTFE) | 1 | Female Socket Jack | Copper Alloy | 500 V | Solder | ||
Samtec Inc. | 125 °C | -65 ░C | Brass | Gold | 75 Ohms | Solder | 12 GHz | Bayonet Lock | Nickel | Silver | BNC | Through Hole | Polytetrafluoroethylene (PTFE) | 1 | Female Socket Jack | Copper Alloy | 500 V | Solder | ||
Samtec Inc. | 125 °C | -65 ░C | Zinc | Gold | Bulkhead - Front Side Nut | 75 Ohms | Solder | 12 GHz | Bayonet Lock | Nickel | Silver | BNC | Panel Mount Right Angle Through Hole | Polymethylpentene (PMP) | 1 | 1 Connector 1 Lockwasher 1 Nut | Female Socket Jack | Copper Alloy | 500 V | Solder |
Samtec Inc. | 125 °C | -65 ░C | Brass | Gold | Bulkhead - Front Side Nut | 75 Ohms | Solder | 12 GHz | Bayonet Lock | Nickel | Silver | BNC | Board Edge End Launch Panel Mount | Polytetrafluoroethylene (PTFE) | 1 | 1 Connector 1 Lockwasher 1 Nut | Female Socket Jack | Copper Alloy | 500 V | Solder |
Samtec Inc. | 125 °C | -65 ░C | Brass | Gold | 75 Ohms | Solder | 12 GHz | Bayonet Lock | Nickel | Silver | BNC | Through Hole | Polytetrafluoroethylene (PTFE) | 1 | Female Socket Jack | Copper Alloy | 500 V | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
BNC7T-J Series
BNC Connector Jack, Female Socket 75 Ohms Panel Mount, Through Hole, Right Angle Solder
