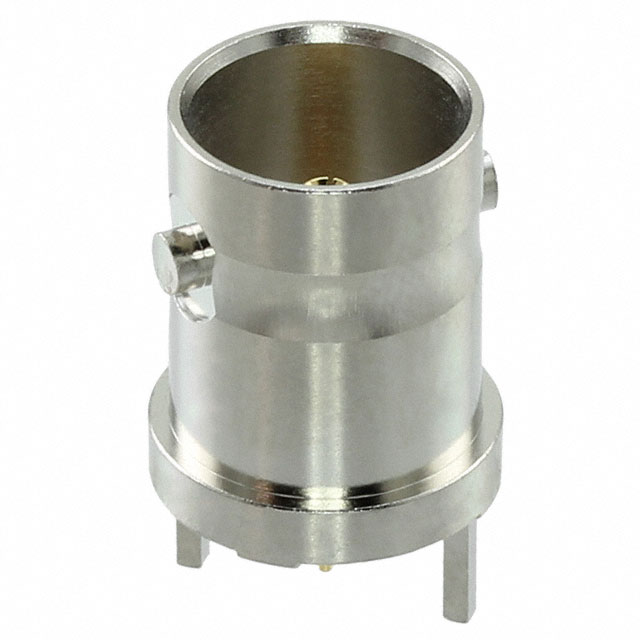

BNC7T-J-P-GN-ST-TH1
ActiveSamtec Inc.
CONN BNC JACK STR 75 OHM PCB
Deep-Dive with AI
Search across all available documentation for this part.
BNC7T-J-P-GN-ST-TH1
ActiveSamtec Inc.
CONN BNC JACK STR 75 OHM PCB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BNC7T-J-P-GN-ST-TH1 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Copper Alloy |
| Center Contact Plating | Gold |
| Connector Style | BNC |
| Connector Type | Female Socket, Jack |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Bayonet Lock |
| Frequency - Max [Max] | 12 GHz |
| Housing Color | Silver |
| Impedance | 75 Ohms |
| Mounting Type | Through Hole |
| Number of Ports | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Solder |
| Voltage Rating | 500 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 9.81 | |
| 10 | $ 7.53 | |||
| 25 | $ 6.80 | |||
| 40 | $ 6.46 | |||
| 80 | $ 6.00 | |||
| 230 | $ 5.37 | |||
| 440 | $ 5.03 | |||
| 945 | $ 4.67 | |||
Description
General part information
BNC7T-J Series
BNC Connector Jack, Female Socket 75 Ohms Through Hole Solder
