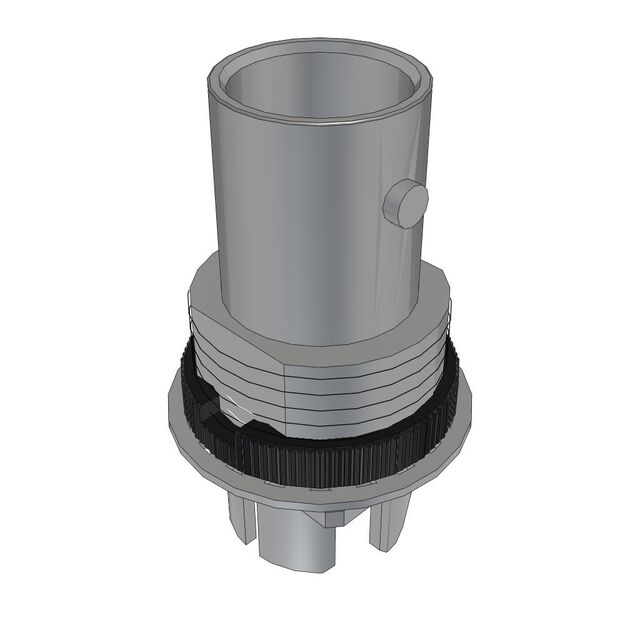

Specification	BNC7T-J-P-GN-ST-EM2D

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Copper Alloy
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Jack, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max	12 Gbps
Housing Color	Silver
Impedance	75 Ohm
Includes	Lockwasher, Nut, Connector
Includes Total Count	3 pcs
Mounting Feature	Bulkhead, Front Side Nut
Mounting Type	Board Edge, End Launch, Panel Mount
Number of Ports	1
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-65 °C
Shield Termination	Solder
Voltage Rating	500 V

BNC7T-J Series

Part	Impedance	Connector Type	Shield Termination	Contact Termination	Housing Color	Mounting Feature	Mounting Type	Fastening Type	Number of Ports	Center Contact Material	Connector Style	Frequency - Max	Center Contact Plating	Operating Temperature (Max)	Operating Temperature (Min)	Voltage Rating	Body Finish	Body Material	Includes Total Count	Includes	Dielectric Material
Samtec Inc. BNC7T-J-P-GN-ST-EM1	75 Ohm	Female Socket Jack	Solder	Solder	Silver	Bulkhead Front Side Nut	Board Edge End Launch Panel Mount	Bayonet Lock	1	Copper Alloy	BNC	12 Gbps	Gold	125 °C	-65 °C	500 V	Nickel	Brass	3 pcs	Connector Lockwasher Nut	Polytetrafluoroethylene (PTFE)
Samtec Inc. BNC7T-J-P-HN-ST-EM1D	75 Ohm	Female Socket Jack	Solder	Solder	Silver	Bulkhead Front Side Nut	Board Edge End Launch Panel Mount	Bayonet Lock	1	Copper Alloy	BNC	12 Gbps	Gold	125 °C	-65 °C	500 V	Nickel	Brass	3 pcs	Connector Lockwasher Nut	Polytetrafluoroethylene (PTFE)
Samtec Inc. BNC7T-J-P-GN-ST-EM2D	75 Ohm	Female Socket Jack	Solder	Solder	Silver	Bulkhead Front Side Nut	Board Edge End Launch Panel Mount	Bayonet Lock	1	Copper Alloy	BNC	12 Gbps	Gold	125 °C	-65 °C	500 V	Nickel	Brass	3 pcs	Connector Lockwasher Nut	Polytetrafluoroethylene (PTFE)
Samtec Inc. BNC7T-J-P-HN-ST-EM2	75 Ohm	Female Socket Jack	Solder	Solder	Silver	Bulkhead Front Side Nut	Board Edge End Launch Panel Mount	Bayonet Lock	1	Copper Alloy	BNC	12 Gbps	Gold	125 °C	-65 °C	500 V	Nickel	Brass	3 pcs	Connector Lockwasher Nut	Polytetrafluoroethylene (PTFE)
Samtec Inc. BNC7T-J-P-GN-ST-TH1	75 Ohm	Female Socket Jack	Solder	Solder	Silver		Through Hole	Bayonet Lock	1	Copper Alloy	BNC	12 Gbps	Gold	125 °C	-65 °C	500 V	Nickel	Brass			Polytetrafluoroethylene (PTFE)
Samtec Inc. BNC7T-J-P-HN-ST-TH2D	75 Ohm	Female Socket Jack	Solder	Solder	Silver		Through Hole	Bayonet Lock	1	Copper Alloy	BNC	12 Gbps	Gold	125 °C	-65 °C	500 V	Nickel	Brass			Polytetrafluoroethylene (PTFE)
Samtec Inc. BNC7T-J-P-GN-ST-TH2D	75 Ohm	Female Socket Jack	Solder	Solder	Silver		Through Hole	Bayonet Lock	1	Copper Alloy	BNC	12 Gbps	Gold	125 °C	-65 °C	500 V	Nickel	Brass			Polytetrafluoroethylene (PTFE)
Samtec Inc. BNC7T-J-P-GN-RA-BH2D	75 Ohm	Female Socket Jack	Solder	Solder	Silver	Bulkhead Front Side Nut	Panel Mount Right Angle Through Hole	Bayonet Lock	1	Copper Alloy	BNC	12 Gbps	Gold	125 °C	-65 °C	500 V	Nickel	Zinc	3 pcs	Connector Lockwasher Nut	Polymethylpentene (PMP)
Samtec Inc. BNC7T-J-P-HN-ST-EM1	75 Ohm	Female Socket Jack	Solder	Solder	Silver	Bulkhead Front Side Nut	Board Edge End Launch Panel Mount	Bayonet Lock	1	Copper Alloy	BNC	12 Gbps	Gold	125 °C	-65 °C	500 V	Nickel	Brass	3 pcs	Connector Lockwasher Nut	Polytetrafluoroethylene (PTFE)
Samtec Inc. BNC7T-J-P-GN-RA-BH1	75 Ohm	Female Socket Jack	Solder	Solder	Silver	Bulkhead Front Side Nut	Panel Mount Right Angle Through Hole	Bayonet Lock	1	Copper Alloy	BNC	12 Gbps	Gold	125 °C	-65 °C	500 V	Nickel	Brass	3 pcs	Connector Lockwasher Nut	Polytetrafluoroethylene (PTFE)
