BNC7T-J-P-GN-ST-TH2D

Active

Samtec Inc.

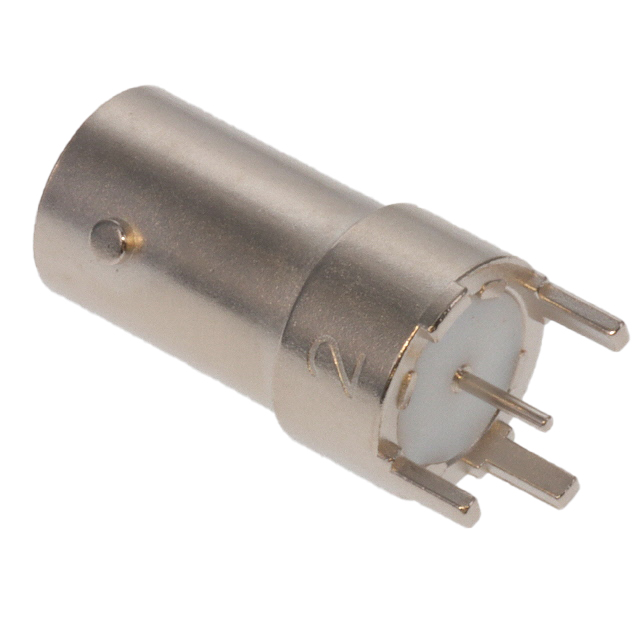

RF / COAXIAL CONNECTOR, BNC COAXIAL, STRAIGHT JACK, THROUGH HOLE VERTICAL, 75 OHM, COPPER ALLOY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsBNC7T Datasheet Datasheet

BNC7T-J-P-GN-ST-TH2D

Active

Samtec Inc.

RF / COAXIAL CONNECTOR, BNC COAXIAL, STRAIGHT JACK, THROUGH HOLE VERTICAL, 75 OHM, COPPER ALLOY

Deep-Dive with AI

DocumentsBNC7T Datasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BNC7T-J-P-GN-ST-TH2D

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Copper Alloy
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	12 GHz
Housing Color	Silver
Impedance	75 Ohms
Mounting Type	Through Hole
Number of Ports	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	500 V

BNC7T-J Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Body Material	Center Contact Plating	Mounting Feature	Impedance	Shield Termination	Frequency - Max [Max]	Fastening Type	Body Finish	Housing Color	Connector Style	Mounting Type	Dielectric Material	Number of Ports	Includes	Connector Type	Center Contact Material	Voltage Rating	Contact Termination
Samtec Inc. BNC7T-J-P-GN-ST-EM1	125 °C	-65 ░C	Brass	Gold	Bulkhead - Front Side Nut	75 Ohms	Solder	12 GHz	Bayonet Lock	Nickel	Silver	BNC	Board Edge End Launch Panel Mount	Polytetrafluoroethylene (PTFE)	1	1 Connector 1 Lockwasher 1 Nut	Female Socket Jack	Copper Alloy	500 V	Solder
Samtec Inc. BNC7T-J-P-HN-ST-EM1D	125 °C	-65 ░C	Brass	Gold	Bulkhead - Front Side Nut	75 Ohms	Solder	12 GHz	Bayonet Lock	Nickel	Silver	BNC	Board Edge End Launch Panel Mount	Polytetrafluoroethylene (PTFE)	1	1 Connector 1 Lockwasher 1 Nut	Female Socket Jack	Copper Alloy	500 V	Solder
Samtec Inc. BNC7T-J-P-GN-ST-EM2D	125 °C	-65 ░C	Brass	Gold	Bulkhead - Front Side Nut	75 Ohms	Solder	12 GHz	Bayonet Lock	Nickel	Silver	BNC	Board Edge End Launch Panel Mount	Polytetrafluoroethylene (PTFE)	1	1 Connector 1 Lockwasher 1 Nut	Female Socket Jack	Copper Alloy	500 V	Solder
Samtec Inc. BNC7T-J-P-HN-ST-EM2	125 °C	-65 ░C	Brass	Gold	Bulkhead - Front Side Nut	75 Ohms	Solder	12 GHz	Bayonet Lock	Nickel	Silver	BNC	Board Edge End Launch Panel Mount	Polytetrafluoroethylene (PTFE)	1	1 Connector 1 Lockwasher 1 Nut	Female Socket Jack	Copper Alloy	500 V	Solder
Samtec Inc. BNC7T-J-P-GN-ST-TH1	125 °C	-65 ░C	Brass	Gold		75 Ohms	Solder	12 GHz	Bayonet Lock	Nickel	Silver	BNC	Through Hole	Polytetrafluoroethylene (PTFE)	1		Female Socket Jack	Copper Alloy	500 V	Solder
Samtec Inc. BNC7T-J-P-HN-ST-TH2D	125 °C	-65 ░C	Brass	Gold		75 Ohms	Solder	12 GHz	Bayonet Lock	Nickel	Silver	BNC	Through Hole	Polytetrafluoroethylene (PTFE)	1		Female Socket Jack	Copper Alloy	500 V	Solder
Samtec Inc. BNC7T-J-P-GN-ST-TH2D	125 °C	-65 ░C	Brass	Gold		75 Ohms	Solder	12 GHz	Bayonet Lock	Nickel	Silver	BNC	Through Hole	Polytetrafluoroethylene (PTFE)	1		Female Socket Jack	Copper Alloy	500 V	Solder
Samtec Inc. BNC7T-J-P-GN-RA-BH2D	125 °C	-65 ░C	Zinc	Gold	Bulkhead - Front Side Nut	75 Ohms	Solder	12 GHz	Bayonet Lock	Nickel	Silver	BNC	Panel Mount Right Angle Through Hole	Polymethylpentene (PMP)	1	1 Connector 1 Lockwasher 1 Nut	Female Socket Jack	Copper Alloy	500 V	Solder
Samtec Inc. BNC7T-J-P-HN-ST-EM1	125 °C	-65 ░C	Brass	Gold	Bulkhead - Front Side Nut	75 Ohms	Solder	12 GHz	Bayonet Lock	Nickel	Silver	BNC	Board Edge End Launch Panel Mount	Polytetrafluoroethylene (PTFE)	1	1 Connector 1 Lockwasher 1 Nut	Female Socket Jack	Copper Alloy	500 V	Solder
Samtec Inc. BNC7T-J-P-HN-ST-TH1	125 °C	-65 ░C	Brass	Gold		75 Ohms	Solder	12 GHz	Bayonet Lock	Nickel	Silver	BNC	Through Hole	Polytetrafluoroethylene (PTFE)	1		Female Socket Jack	Copper Alloy	500 V	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 2.98
		10	$ 2.53
		25	$ 2.37
		50	$ 2.26
		100	$ 2.15
		250	$ 2.02
		500	$ 1.92
		1000	$ 1.83
		2500	$ 1.79
LCSC	Piece	1	$ 5.96
		10	$ 5.15
		30	$ 4.67
		100	$ 4.19
		500	$ 3.96
		1000	$ 3.86
Newark	Each	1	$ 3.38
		10	$ 3.03
		25	$ 2.84
		100	$ 2.67
		250	$ 2.25
		500	$ 2.05
		1000	$ 1.90

Description

General part information

BNC7T-J Series

BNC Connector Jack, Female Socket 75 Ohms Through Hole Solder
