IAUC100N04S6L014ATMA1

Active

Infineon Technologies

INFINEON’S IAUC100N04S6L014 IS A HIGH-PERFORMANCE SEMICONDUCTOR TRANSISTOR WITH LOW RDS(ON) AND HIGH CURRENT CAPABILITY. FIND DATA SHEET, PARAMETERS AND ORDERING INFORMATION.

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

IAUC100N04S6L014ATMA1

Active

Infineon Technologies

INFINEON’S IAUC100N04S6L014 IS A HIGH-PERFORMANCE SEMICONDUCTOR TRANSISTOR WITH LOW RDS(ON) AND HIGH CURRENT CAPABILITY. FIND DATA SHEET, PARAMETERS AND ORDERING INFORMATION.

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IAUC100N04S6L014ATMA1

Current - Continuous Drain (Id) @ 25°C	100 A
Drain to Source Voltage (Vdss)	40 V
Drive Voltage (Max Rds On, Min Rds On)	10 V, 4.5 V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs [Max]	65 nC
Grade	Automotive
Mounting Type	Surface Mount
Operating Temperature [Max]	175 ░C
Operating Temperature [Min]	-55 °C

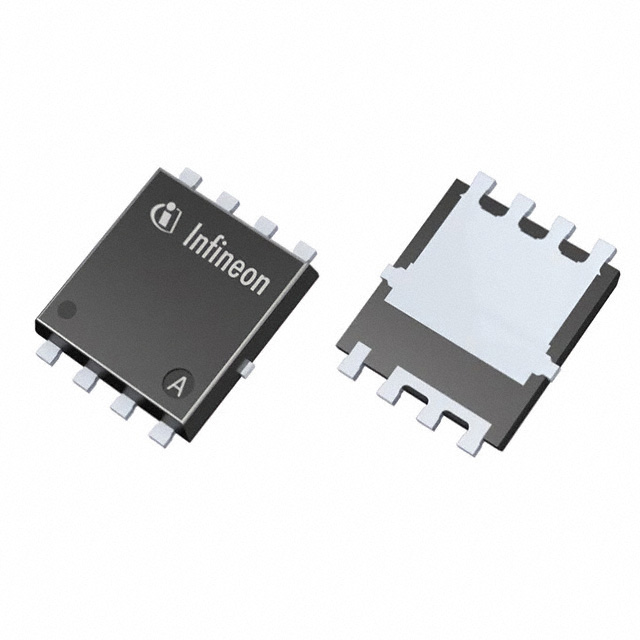

Package / Case	8-PowerTDFN
Power Dissipation (Max) [Max]	100 W
Qualification	AEC-Q101
Rds On (Max) @ Id, Vgs	1.4 mOhm
Supplier Device Package	PG-TDSON-8
Technology	MOSFET (Metal Oxide)
Vgs (Max)	16 V
Vgs(th) (Max) @ Id	2 V

IAUC100 Series

Part	Input Capacitance (Ciss) (Max) @ Vds	Current - Continuous Drain (Id) @ 25°C	Package / Case	Qualification	Technology	FET Type	Gate Charge (Qg) (Max) @ Vgs	Drive Voltage (Max Rds On, Min Rds On)	Drain to Source Voltage (Vdss)	Supplier Device Package	Vgs(th) (Max) @ Id	Vgs (Max)	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Rds On (Max) @ Id, Vgs	Power Dissipation (Max) [Max]	Grade	Gate Charge (Qg) (Max) @ Vgs [Max]	Power Dissipation (Max)	Rds On (Max) @ Id, Vgs [Max]	Input Capacitance (Ciss) (Max) @ Vds [Max]
Infineon Technologies IAUC100N04S6L025ATMA1	2019 pF	100 A	8-PowerTDFN	AEC-Q101	MOSFET (Metal Oxide)	N-Channel	34 nC	4.5 V 10 V	40 V	PG-TDSON-8	2 V	16 V	-55 °C	175 ░C	Surface Mount	2.56 mOhm	62 W	Automotive
Infineon Technologies IAUC100N10S5L040ATMA1	5200 pF	100 A	8-PowerTDFN		MOSFET (Metal Oxide)	N-Channel		4.5 V 10 V	100 V	PG-TDSON-8-34	2 V	20 V	-55 °C	175 ░C	Surface Mount	4 mOhm			78 nC	167 W
Infineon Technologies IAUC100N04S6L014ATMA1		100 A	8-PowerTDFN	AEC-Q101	MOSFET (Metal Oxide)	N-Channel		4.5 V 10 V	40 V	PG-TDSON-8	2 V	16 V	-55 °C	175 ░C	Surface Mount	1.4 mOhm	100 W	Automotive	65 nC
Infineon Technologies IAUC100N04S6N028ATMA1		100 A	8-PowerTDFN	AEC-Q101	MOSFET (Metal Oxide)	N-Channel	29 nC		40 V	PG-TDSON-8	3 V	20 V	-55 °C	175 ░C	Surface Mount		62 W	Automotive			2.86 mOhm
Infineon Technologies IAUC100N10S5N040ATMA1	5200 pF	100 A	8-PowerTDFN		MOSFET (Metal Oxide)	N-Channel		6 V 10 V	100 V	PG-TDSON-8-34	3.8 V	20 V	-55 °C	175 ░C	Surface Mount	4 mOhm			78 nC	167 W
Infineon Technologies IAUC100N04S6N022ATMA1	2421 pF	100 A	8-PowerTDFN	AEC-Q101	MOSFET (Metal Oxide)	N-Channel			40 V	PG-TDSON-8	3 V	20 V	-55 °C	175 ░C	Surface Mount	2.26 mOhm		Automotive	39 nC	75 W
Infineon Technologies IAUC100N08S5N043ATMA1	3860 pF	100 A	8-PowerTDFN	AEC-Q101	MOSFET (Metal Oxide)	N-Channel	56 nC	6 V 10 V	80 V	PG-TDSON-8-34	3.8 V	20 V	-55 °C	175 ░C	Surface Mount	4 mOhm		Automotive		125 W
Infineon Technologies IAUC100N04S6N015ATMA1		100 A	8-PowerTDFN	AEC-Q101	MOSFET (Metal Oxide)	N-Channel	55 nC		40 V	PG-TDSON-8	3 V	20 V	-55 °C	175 ░C	Surface Mount	1.55 mOhm	100 W	Automotive				3470 pF

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.05
		10	$ 1.31
		100	$ 0.89
		500	$ 0.71
		1000	$ 0.65
		2000	$ 0.60
	Digi-Reel®	1	$ 2.05
		10	$ 1.31
		100	$ 0.89
		500	$ 0.71
		1000	$ 0.65
		2000	$ 0.60
	Tape & Reel (TR)	5000	$ 0.56
Newark	Each (Supplied on Cut Tape)	1	$ 1.74
		1	$ 1.74
		10	$ 1.16
		10	$ 1.16
		25	$ 1.05
		25	$ 1.05
		50	$ 0.94
		50	$ 0.94
		100	$ 0.82
		100	$ 0.82
		250	$ 0.73
		250	$ 0.73
		500	$ 0.65
		500	$ 0.65
		1000	$ 0.55
		1000	$ 0.55

Description

General part information

IAUC100 Series

Say goodbye to old technology and unlock new levels of performance with Infineon's latest product,IAUCN04S7L014. Discover the enhanced efficiency and reliability of our newest technology withIAUCN04S7L014
