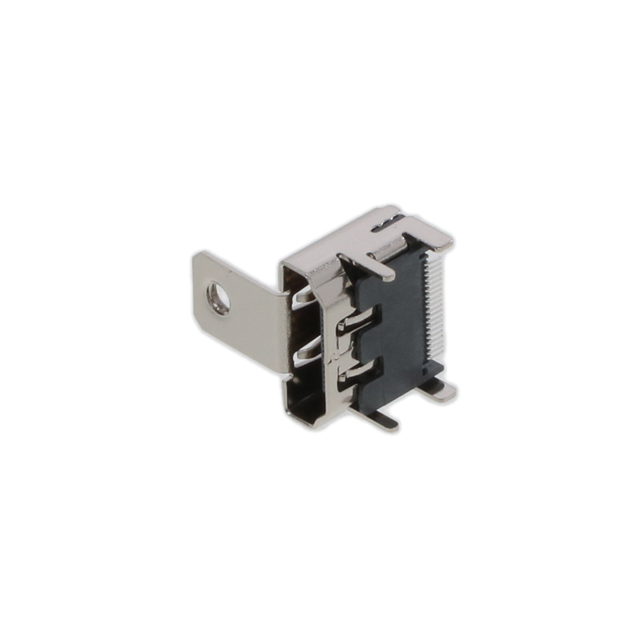

HDMR-19-01-S-SM-PF
ActiveSamtec Inc.
HDMR FLONGED SURFACE MOUNT SOCKE
Deep-Dive with AI
Search across all available documentation for this part.
HDMR-19-01-S-SM-PF
ActiveSamtec Inc.
HDMR FLONGED SURFACE MOUNT SOCKE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HDMR-19-01-S-SM-PF |
|---|---|
| Connector Type | HDMI |
| Contact Finish | Gold |
| Current Rating (Amps) | 1.3 A |
| Features | Board Guide |
| Gender | Receptacle |
| Mounting Feature | Flange, Horizontal |
| Mounting Type | Through Hole, Surface Mount, Right Angle |
| Number of Contacts [custom] | 19 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Shell/Shielding Material | Brass |
| Shielding | Shielded |
| Termination | Solder |
| Voltage - Rated | 40 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 4.80 | |
| 5 | $ 4.12 | |||
| 10 | $ 3.87 | |||
| 25 | $ 3.59 | |||
| 50 | $ 3.40 | |||
| 100 | $ 3.23 | |||
| 250 | $ 3.04 | |||
| 500 | $ 2.91 | |||
| 1000 | $ 2.82 | |||
Description
General part information
HDMR-19 Series
HDMI Receptacle Connector 19 Position Surface Mount, Right Angle; Through Hole
