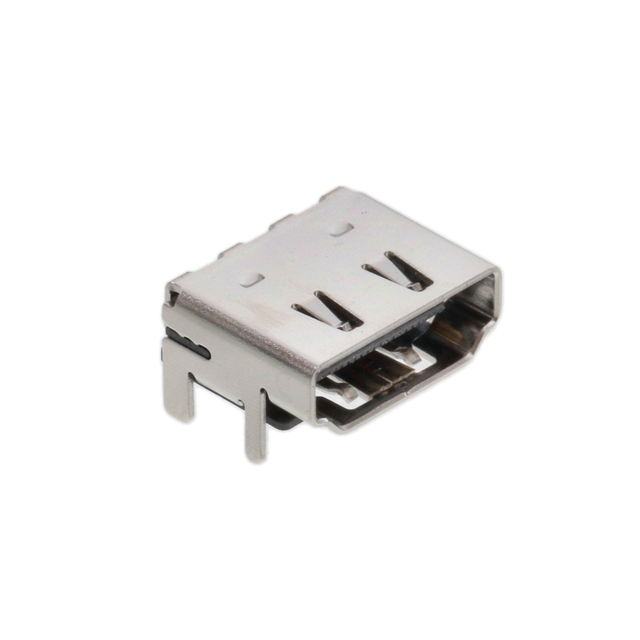

HDMR-19-01-F-SM-TR - HDMR-19-01-F-SM-TR

HDMR-19-01-F-SM-TR

Active
Samtec Inc.

CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetHigh-Speed I/O Receptacle+1
HDMR-19-01-F-SM-TR - HDMR-19-01-F-SM-TR

HDMR-19-01-F-SM-TR

Active
Samtec Inc.

CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheetHigh-Speed I/O Receptacle+1

Technical Specifications

Parameters and characteristics for this part

SpecificationHDMR-19-01-F-SM-TR
Connector TypeHDMI
Contact FinishGold
Current Rating (Amps)1.3 A
FeaturesBoard Guide
GenderReceptacle
Mounting FeatureHorizontal
Mounting TypeThrough Hole, Surface Mount, Right Angle
Number of Contacts [custom]19
Number of Ports1
Operating Temperature [Max]85 °C
Operating Temperature [Min]-25 °C
Shell/Shielding MaterialBrass
ShieldingShielded
TerminationSolder
Voltage - Rated40 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 4.50
10$ 3.44
25$ 3.11
50$ 2.88
100$ 2.71
Digi-Reel® 1$ 4.50
10$ 3.44
25$ 3.11
50$ 2.88
100$ 2.71
Tape & Reel (TR) 250$ 2.71
NewarkEach 1$ 4.77
10$ 4.55
100$ 3.82
500$ 3.24
1000$ 2.74
2500$ 2.52
5000$ 2.47

Description

General part information

HDMR-19 Series

HDMI Receptacle Connector 19 Position Surface Mount, Right Angle; Through Hole
