Connectors, Interconnects

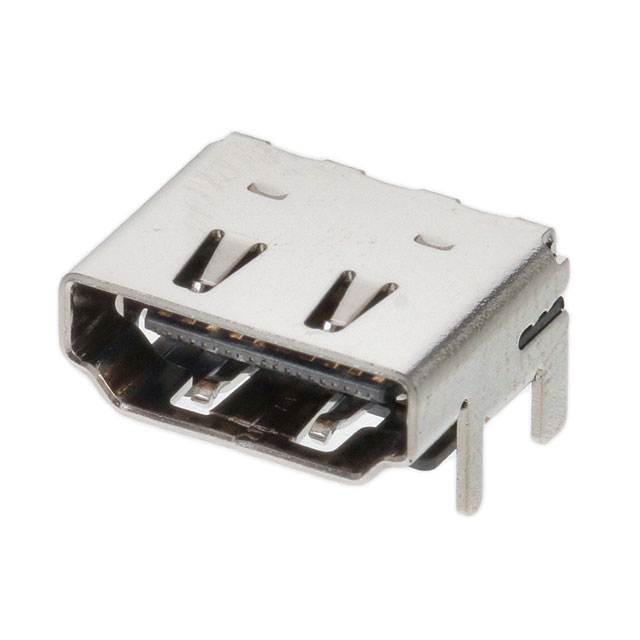

HDMR-19-01-S-SM-TR

Active

CONN RCPT HDMI 19POS SMD R/A

Connectors, Interconnects

Active

CONN RCPT HDMI 19POS SMD R/A

Technical Specifications

Parameters and characteristics for this part

Specification	HDMR-19-01-S-SM-TR

Connector Type	HDMI
Contact Finish	Gold
Current Rating (Per Contact)	1.3 A
Features	Board Guide
Gender	Receptacle
Mating Cycles	100 cycles
Mounting Feature	Horizontal
Mounting Type	Through Hole, Right Angle, Surface Mount
Number of Contacts	19
Number of Ports	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-25 °C
Shell/Shielding Material	Brass
Shielding	Shielded
Termination	Solder
Voltage - Rated	40 V

Part	Gender	Features	Number of Ports	Current Rating (Per Contact)	Operating Temperature (Max)	Operating Temperature (Min)	Number of Contacts	Voltage - Rated	Connector Type	Mounting Feature	Mounting Type	Termination	Mating Cycles	Shielding	Contact Finish	Shell/Shielding Material
Samtec Inc. HDMR-19-01-S-SM-TR	Receptacle	Board Guide	1	1.3 A	85 °C	-25 °C	19	40 V	HDMI	Horizontal	Right Angle Surface Mount Through Hole	Solder	100 cycles	Shielded	Gold	Brass
Samtec Inc. HDMR-19-02-S-SM-PF	Receptacle	Board Guide	1	1.3 A	85 °C	-25 °C	19	40 V	HDMI	Flange Horizontal	Right Angle Surface Mount Through Hole	Solder	100 cycles	Shielded	Gold
Samtec Inc. HDMR-19-01-F-SM	Receptacle	Board Guide	1	1.3 A	85 °C	-25 °C	19	40 V	HDMI	Horizontal	Right Angle Surface Mount Through Hole	Solder	100 cycles	Shielded	Gold	Brass
Samtec Inc. HDMR-19-01-F-SM-TR	Receptacle	Board Guide	1	1.3 A	85 °C	-25 °C	19	40 V	HDMI	Horizontal	Right Angle Surface Mount Through Hole	Solder	100 cycles	Shielded	Gold	Brass
Samtec Inc. HDMR-19-01-S-SM-PF	Receptacle	Board Guide	1	1.3 A	85 °C	-25 °C	19	40 V	HDMI	Flange Horizontal	Right Angle Surface Mount Through Hole	Solder	100 cycles	Shielded	Gold	Brass
Samtec Inc. HDMR-19-02-S-SM	Receptacle	Board Guide	1	1.3 A	85 °C	-25 °C	19	40 V	HDMI	Horizontal	Right Angle Surface Mount Through Hole	Solder	100 cycles	Shielded	Gold	Brass
Samtec Inc. HDMR-19-02-S-SM-TR	Receptacle	Board Guide	1	1.3 A	85 °C	-25 °C	19	40 V	HDMI	Horizontal	Right Angle Surface Mount Through Hole	Solder	100 cycles	Shielded	Gold	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$	Updated

Digikey	Cut Tape (CT)	1	$ 8.19	<6d
		5	$ 7.04
		10	$ 6.64
		25	$ 6.16
		50	$ 5.85
		100	$ 5.57
	Tape & Reel (TR)	250	$ 4.16	<6d
RS Group	Minimum Package Quantity (MPQ)	250	$ 3.14	1w
		1250	$ 3.03
		2500	$ 2.88
RS Group	Special/Small Minimum Order (SSM)	2	$ 3.94	1w
		40	$ 3.67
		50	$ 3.37
		200	$ 3.18
Samtec Inc.	N/A	1	$ 5.42	<1d
		25	$ 4.90
		50	$ 4.55
		100	$ 4.34
		500	$ 3.71
		1000	$ 3.50
		2500	$ 3.08
		4500	$ 2.66

3D models and CAD resources for this part

General part information

HDMI Receptacle Connector 19 Position Surface Mount, Right Angle; Through Hole
