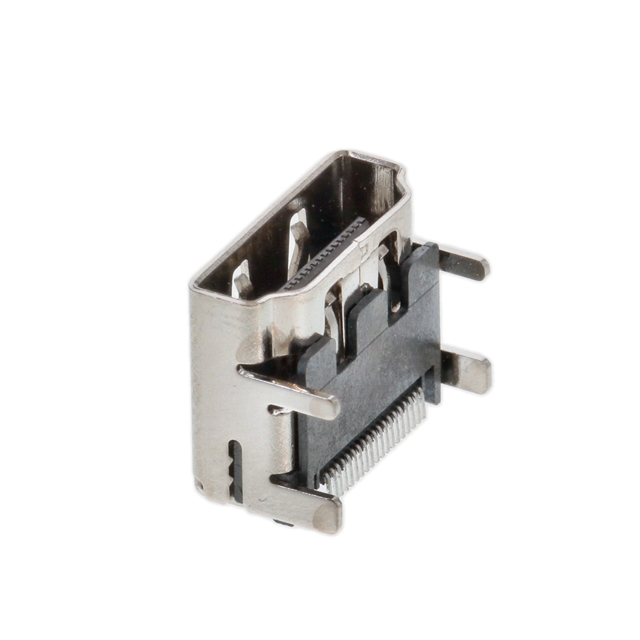

HDMR-19-01-F-SM - HDMR-19-01-F-SM

HDMR-19-01-F-SM

Active
Samtec Inc.

CONN RCPT HDMI 19POS SMD R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHDMR DatasheetDatasheet+1
HDMR-19-01-F-SM - HDMR-19-01-F-SM

HDMR-19-01-F-SM

Active
Samtec Inc.

CONN RCPT HDMI 19POS SMD R/A

Deep-Dive with AI

DocumentsHDMR DatasheetDatasheet+1

Technical Specifications

Parameters and characteristics for this part

SpecificationHDMR-19-01-F-SM
Connector TypeHDMI
Contact FinishGold
Current Rating (Amps)1.3 A
FeaturesBoard Guide
GenderReceptacle
Mounting FeatureHorizontal
Mounting TypeThrough Hole, Surface Mount, Right Angle
Number of Contacts [custom]19
Number of Ports1
Operating Temperature [Max]85 °C
Operating Temperature [Min]-25 °C
Shell/Shielding MaterialBrass
ShieldingShielded
TerminationSolder
Voltage - Rated40 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 3.31
10$ 2.81
25$ 2.63
50$ 2.51
100$ 2.39
250$ 2.24
500$ 2.13
1000$ 2.03
2500$ 2.01

Description

General part information

HDMR-19 Series

HDMI Receptacle Connector 19 Position Surface Mount, Right Angle; Through Hole
