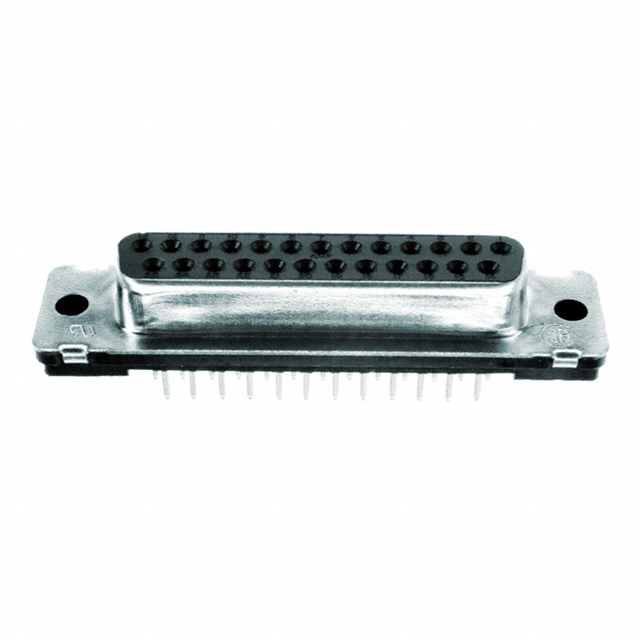

5745967-4 - 5745967-4

5745967-4

Active
TE Connectivity Raychem Cable Protection

25 RCPT SP/FMS STD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetDatasheet+4
5745967-4 - 5745967-4

5745967-4

Active
TE Connectivity Raychem Cable Protection

25 RCPT SP/FMS STD

Deep-Dive with AI

DocumentsDatasheetDatasheet+4

Technical Specifications

Parameters and characteristics for this part

Specification5745967-4
ColorBlack
Connector StyleD-Sub
Connector TypeReceptacle, Female Sockets
Contact FinishGold
Contact Finish Thickness0.76 Ám
Contact Finish Thickness30 Áin
Contact MaterialPhosphor Bronze
Contact TypeSignal
Current Rating (Amps)6 A
Dielectric MaterialPolyester
Flange FeatureHousing/Shell (Unthreaded)
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole
Number of Rows2
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-55 °C
Shell Size, Connector Layout [custom]DB, B
Shell Size, Connector Layout [custom]3
TerminationSolder
Voltage Rating125 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTube 1$ 7.35
10$ 6.65
30$ 6.47
50$ 6.23
100$ 6.19

Description

General part information

AMPLIMITE HD-20 Series

D-Sub Standard Connectors 37P PLUG TIN
