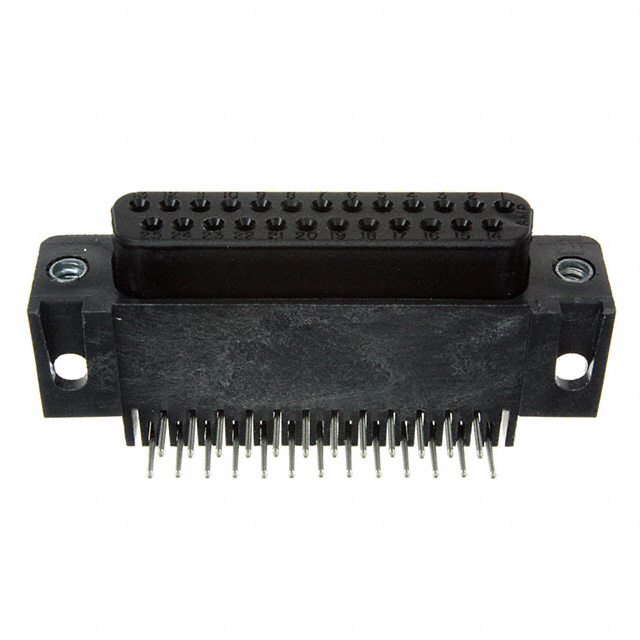

5747461-3
ActiveTE Connectivity Raychem Cable Protection
25P FEMALE RIGHT-ANGLE 2 6A PUSH-PULL D-SUB / VGA CONNECTORS ROHS
Deep-Dive with AI
Search across all available documentation for this part.
5747461-3
ActiveTE Connectivity Raychem Cable Protection
25P FEMALE RIGHT-ANGLE 2 6A PUSH-PULL D-SUB / VGA CONNECTORS ROHS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 5747461-3 |
|---|---|
| Backset Spacing | 0.59 " |
| Backset Spacing | 14.99 mm |
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Phosphor Bronze |
| Contact Type | Signal |
| Current Rating (Amps) | 6 A |
| Flange Feature | Housing/Shell (4-40) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Shell Size, Connector Layout [custom] | DB, B |
| Shell Size, Connector Layout [custom] | 3 |
| Termination | Solder |
| Voltage Rating | 125 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
AMPLIMITE HD-20 Series
D-Sub Standard Connectors 37P PLUG TIN
