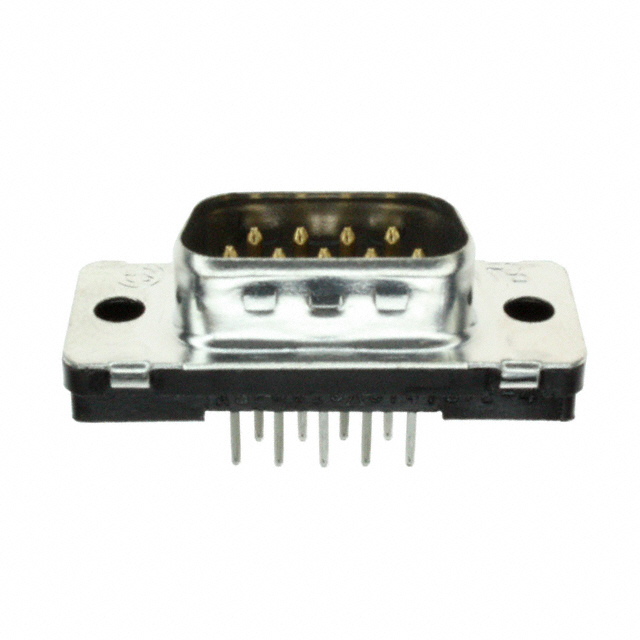

5747871-4

Active

TE Connectivity Raychem Cable Protection

CONN D-SUB PLUG 9POS VERT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

5747871-4

Active

TE Connectivity Raychem Cable Protection

CONN D-SUB PLUG 9POS VERT SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	5747871-4

Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	6 A
Dielectric Material	Thermoplastic
Features	Grounding Indents
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Termination	Solder
Voltage Rating	125 VDC

AMPLIMITE HD-20 Series

D-Sub Standard Connectors 37P PLUG TIN

...

Part	Dielectric Material	Voltage Rating	Contact Material	Termination	Contact Finish	Mounting Type	Material Flammability Rating	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Color	Connector Style	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Current Rating (Amps)	Flange Feature	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Contact Type	Contact Finish Thickness	Shell Material, Finish	Number of Positions	Backset Spacing	Backset Spacing	Features	Shell Size, Connector Layout
TE Connectivity Raychem Cable Protection 5745967-4	Polyester	125 VDC	Phosphor Bronze	Solder	Gold	Through Hole	UL94 V-0	B DB	3	Black	D-Sub	0.76 Ám	30 Áin	Receptacle Female Sockets	6 A	Housing/Shell (Unthreaded)	105 ░C	-55 °C	2	Signal
TE Connectivity Raychem Cable Protection 5205734-5	Glass Filled Nylon Polyamide (PA)	125 VDC	Phosphor Bronze	Solder	Gold	Through Hole	UL94 V-0	DE E	1	Black	D-Sub			Receptacle Female Sockets	6 A	Housing/Shell (Unthreaded)	105 ░C	-55 °C	2	Signal	Flash	Steel Yellow Chromate Plated Zinc	9
TE Connectivity Raychem Cable Protection 5747461-3		125 VDC	Phosphor Bronze	Solder	Gold	Through Hole Right Angle	UL94 V-0	B DB	3	Black	D-Sub			Receptacle Female Sockets	6 A	Housing/Shell (4-40)	105 ░C	-55 °C	2	Signal	Flash			0.59 "	14.99 mm
TE Connectivity Raychem Cable Protection 5747871-4	Thermoplastic	125 VDC	Brass	Solder	Gold	Through Hole	UL94 V-0	DE E	1	Black	D-Sub			Male Pins Plug	6 A	Housing/Shell (Unthreaded)	105 ░C	-55 °C	2	Signal			9			Grounding Indents
TE Connectivity Raychem Cable Protection 1-5747150-4	Polyester	125 VDC	Phosphor Bronze	Solder	Gold	Through Hole	UL94 V-0	DE E	1	Black	D-Sub	0.76 Ám	30 Áin	Receptacle Female Sockets	6 A	Female Screwlock (4-40) Mating Side	105 ░C	-55 °C	2	Signal			9
TE Connectivity Raychem Cable Protection 747845-6	Thermoplastic	125 VDC	Phosphor Bronze	Solder	Gold	Through Hole Right Angle	UL94 V-0			Black	D-Sub	0.76 Ám	30 Áin	Receptacle Female Sockets	6 A	Female Screwlock (4-40) Mating Side	105 ░C	-55 °C	2	Signal			15	0.318 "	8.08 mm	Board Lock Ground Strap	2
TE Connectivity Raychem Cable Protection 747845-5	Thermoplastic	125 VDC	Phosphor Bronze	Solder	Gold	Through Hole Right Angle	UL94 V-0			Black	D-Sub			Receptacle Female Sockets	6 A	Female Screwlock (4-40) Mating Side	105 ░C	-55 °C	2	Signal	Flash		15	0.318 "	8.08 mm	Board Lock Ground Strap	2
TE Connectivity Raychem Cable Protection 5745132-2		125 VDC	Phosphor Bronze	Solder	Gold	Through Hole Right Angle	UL94 V-0	B DB	3	Black	D-Sub	0.76 Ám	30 Áin	Receptacle Female Sockets	6 A	Housing/Shell (Unthreaded)	105 ░C	-55 °C	2	Signal				0.318 "	8.08 mm
TE Connectivity Raychem Cable Protection 5747150-2	Polyester	125 VDC	Phosphor Bronze	Solder	Gold	Through Hole	UL94 V-0	DE E	1	Black	D-Sub	0.76 Ám	30 Áin	Receptacle Female Sockets	6 A	Housing/Shell (Unthreaded)	105 ░C	-55 °C	2	Signal			9
TE Connectivity Raychem Cable Protection 5745183-7	Glass Filled Nylon Polyamide (PA)	125 VDC	Phosphor Bronze	Solder	Gold	Through Hole	UL94 V-0	DE E	1	Black	D-Sub			Receptacle Female Sockets	6 A	Housing/Shell (Unthreaded)	105 ░C	-55 °C	2	Signal			9

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 6.53
		17	$ 5.73
		34	$ 5.58
		51	$ 5.46
		102	$ 5.13
		255	$ 5.10
		510	$ 4.77
		1003	$ 4.26
		2516	$ 3.96

Description

General part information

AMPLIMITE HD-20 Series

D-Sub Standard Connectors 37P PLUG TIN
