ActiveTE Connectivity Raychem Cable Protection

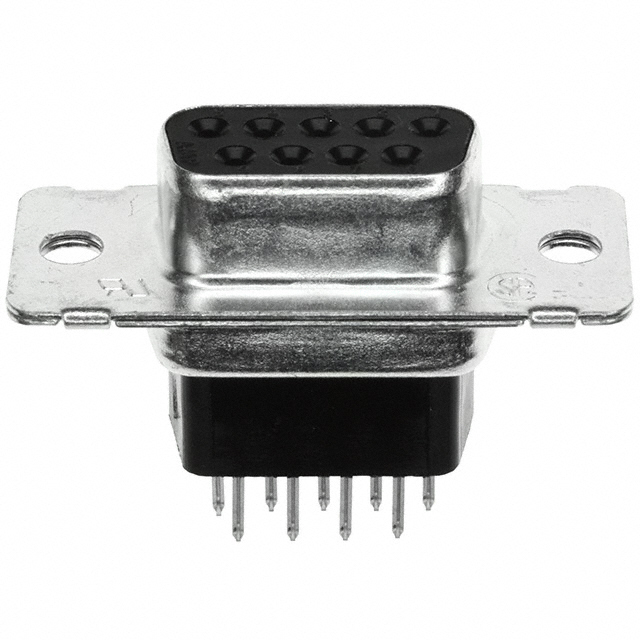

CONN D-SUB RCPT 9POS VERT SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5745183-7
ActiveTE Connectivity Raychem Cable Protection
CONN D-SUB RCPT 9POS VERT SLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 5745183-7 |
|---|---|
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Material | Phosphor Bronze |
| Contact Type | Signal |
| Current Rating (Amps) | 6 A |
| Dielectric Material | Glass Filled, Polyamide (PA), Nylon |
| Flange Feature | Housing/Shell (Unthreaded) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Shell Size, Connector Layout [custom] | DE, E |
| Shell Size, Connector Layout [custom] | 1 |
| Termination | Solder |
| Voltage Rating | 125 VDC |
AMPLIMITE HD-20 Series
D-Sub Standard Connectors 37P PLUG TIN
...
| Part | Dielectric Material | Voltage Rating | Contact Material | Termination | Contact Finish | Mounting Type | Material Flammability Rating | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Color | Connector Style | Contact Finish Thickness | Contact Finish Thickness | Connector Type | Current Rating (Amps) | Flange Feature | Operating Temperature [Max] | Operating Temperature [Min] | Number of Rows | Contact Type | Contact Finish Thickness | Shell Material, Finish | Number of Positions | Backset Spacing | Backset Spacing | Features | Shell Size, Connector Layout |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | Polyester | 125 VDC | Phosphor Bronze | Solder | Gold | Through Hole | UL94 V-0 | B DB | 3 | Black | D-Sub | 0.76 Ám | 30 Áin | Receptacle Female Sockets | 6 A | Housing/Shell (Unthreaded) | 105 ░C | -55 °C | 2 | Signal | |||||||
TE Connectivity Raychem Cable Protection | Glass Filled Nylon Polyamide (PA) | 125 VDC | Phosphor Bronze | Solder | Gold | Through Hole | UL94 V-0 | DE E | 1 | Black | D-Sub | Receptacle Female Sockets | 6 A | Housing/Shell (Unthreaded) | 105 ░C | -55 °C | 2 | Signal | Flash | Steel Yellow Chromate Plated Zinc | 9 | ||||||
TE Connectivity Raychem Cable Protection | 125 VDC | Phosphor Bronze | Solder | Gold | Through Hole Right Angle | UL94 V-0 | B DB | 3 | Black | D-Sub | Receptacle Female Sockets | 6 A | Housing/Shell (4-40) | 105 ░C | -55 °C | 2 | Signal | Flash | 0.59 " | 14.99 mm | |||||||
TE Connectivity Raychem Cable Protection | Thermoplastic | 125 VDC | Brass | Solder | Gold | Through Hole | UL94 V-0 | DE E | 1 | Black | D-Sub | Male Pins Plug | 6 A | Housing/Shell (Unthreaded) | 105 ░C | -55 °C | 2 | Signal | 9 | Grounding Indents | |||||||
TE Connectivity Raychem Cable Protection | Polyester | 125 VDC | Phosphor Bronze | Solder | Gold | Through Hole | UL94 V-0 | DE E | 1 | Black | D-Sub | 0.76 Ám | 30 Áin | Receptacle Female Sockets | 6 A | Female Screwlock (4-40) Mating Side | 105 ░C | -55 °C | 2 | Signal | 9 | ||||||
TE Connectivity Raychem Cable Protection | Thermoplastic | 125 VDC | Phosphor Bronze | Solder | Gold | Through Hole Right Angle | UL94 V-0 | Black | D-Sub | 0.76 Ám | 30 Áin | Receptacle Female Sockets | 6 A | Female Screwlock (4-40) Mating Side | 105 ░C | -55 °C | 2 | Signal | 15 | 0.318 " | 8.08 mm | Board Lock Ground Strap | 2 | ||||
TE Connectivity Raychem Cable Protection | Thermoplastic | 125 VDC | Phosphor Bronze | Solder | Gold | Through Hole Right Angle | UL94 V-0 | Black | D-Sub | Receptacle Female Sockets | 6 A | Female Screwlock (4-40) Mating Side | 105 ░C | -55 °C | 2 | Signal | Flash | 15 | 0.318 " | 8.08 mm | Board Lock Ground Strap | 2 | |||||
TE Connectivity Raychem Cable Protection | 125 VDC | Phosphor Bronze | Solder | Gold | Through Hole Right Angle | UL94 V-0 | B DB | 3 | Black | D-Sub | 0.76 Ám | 30 Áin | Receptacle Female Sockets | 6 A | Housing/Shell (Unthreaded) | 105 ░C | -55 °C | 2 | Signal | 0.318 " | 8.08 mm | ||||||
TE Connectivity Raychem Cable Protection | Polyester | 125 VDC | Phosphor Bronze | Solder | Gold | Through Hole | UL94 V-0 | DE E | 1 | Black | D-Sub | 0.76 Ám | 30 Áin | Receptacle Female Sockets | 6 A | Housing/Shell (Unthreaded) | 105 ░C | -55 °C | 2 | Signal | 9 | ||||||
TE Connectivity Raychem Cable Protection | Glass Filled Nylon Polyamide (PA) | 125 VDC | Phosphor Bronze | Solder | Gold | Through Hole | UL94 V-0 | DE E | 1 | Black | D-Sub | Receptacle Female Sockets | 6 A | Housing/Shell (Unthreaded) | 105 ░C | -55 °C | 2 | Signal | 9 |
