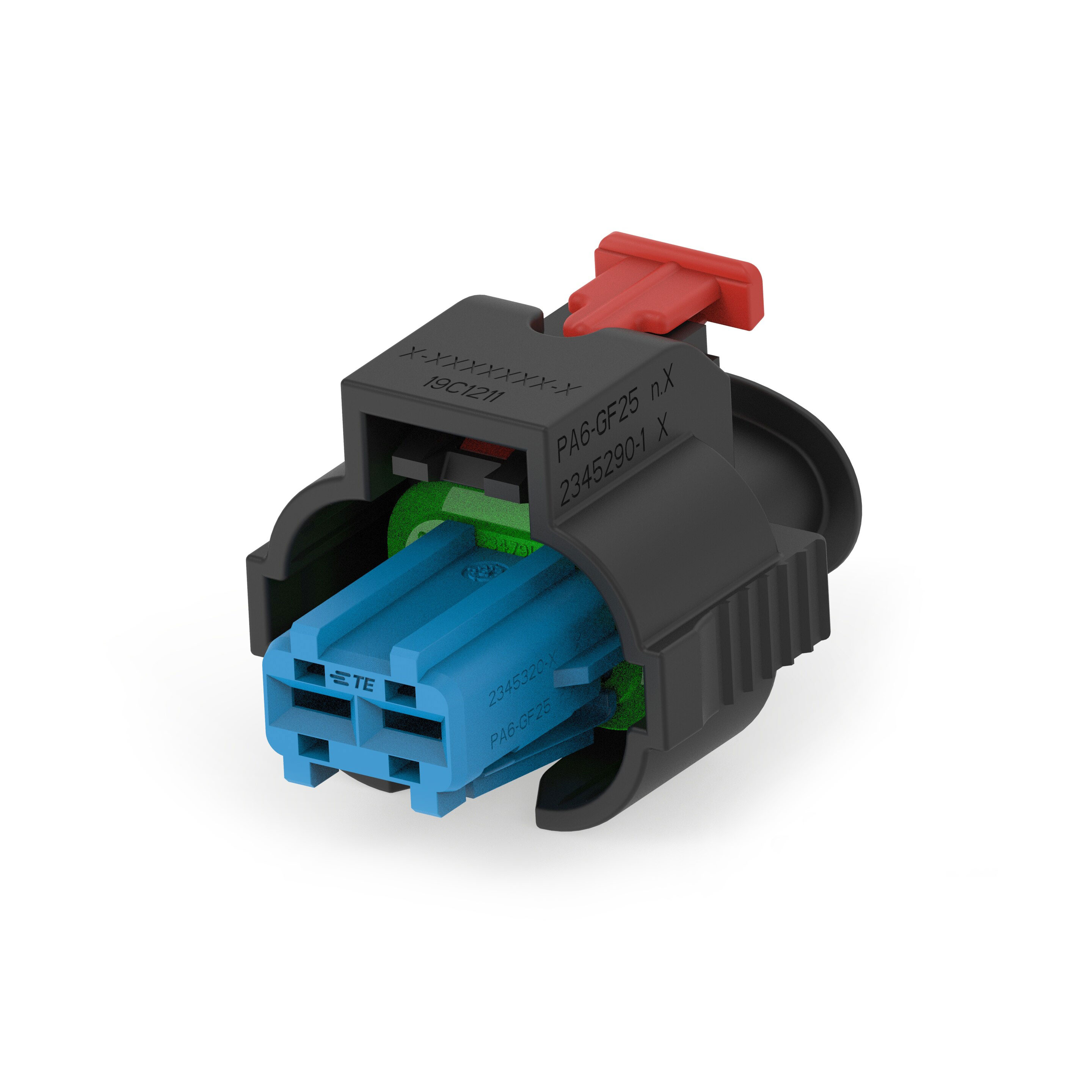

2345388-1
ActiveTE Connectivity Raychem Cable Protection
2POS,AMP MCP 2.8,REC HSG ASSY,SLD,COD 1
Deep-Dive with AI
Search across all available documentation for this part.
2345388-1
ActiveTE Connectivity Raychem Cable Protection
2POS,AMP MCP 2.8,REC HSG ASSY,SLD,COD 1
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2345388-1 |
|---|---|
| Color | Black |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Features | Connector Position Assurance (CPA), Sealed |
| Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 5 mm |
| Pitch [x] | 0.197 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 1.33 | |
| 10 | $ 1.24 | |||
| 25 | $ 1.19 | |||
| 50 | $ 1.18 | |||
| 100 | $ 1.07 | |||
| 250 | $ 1.03 | |||
| 500 | $ 0.94 | |||
| 1000 | $ 0.84 | |||
| 2500 | $ 0.78 | |||
Description
General part information
Superseal Pro Series
2 Position Housing, Plug, Wire-to-Wire, 5 mm [.197 in] Centerline, Sealable, Black, Wire & Cable, Power, Cable Mount (Free-Hanging), Superseal Pro
