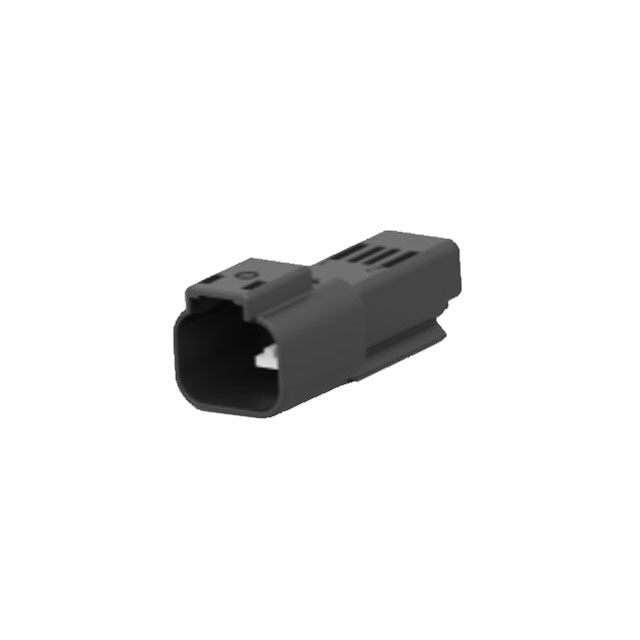

2327042-3
ActiveTE Connectivity Raychem Cable Protection
2POS,MCON 1.2,TAB HSG ASSY,SLD,COD C
Deep-Dive with AI
Search across all available documentation for this part.
2327042-3
ActiveTE Connectivity Raychem Cable Protection
2POS,MCON 1.2,TAB HSG ASSY,SLD,COD C
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2327042-3 |
|---|---|
| Color | Black |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Male Pin |
| Fastening Type | Latch Holder |
| Features | Sealed, Terminal Position Lock (TPA) |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 5 mm |
| Pitch [x] | 0.197 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.95 | |
| 10 | $ 0.80 | |||
| 25 | $ 0.77 | |||
| 50 | $ 0.75 | |||
| 100 | $ 0.72 | |||
| 250 | $ 0.65 | |||
| 800 | $ 0.58 | |||
Description
General part information
Superseal Pro Series
2 Position Housing, Housing for Male Terminals, Wire-to-Wire, 5 mm [.197 in] Centerline, Sealable, Black, Wire & Cable, Power, Superseal Pro
