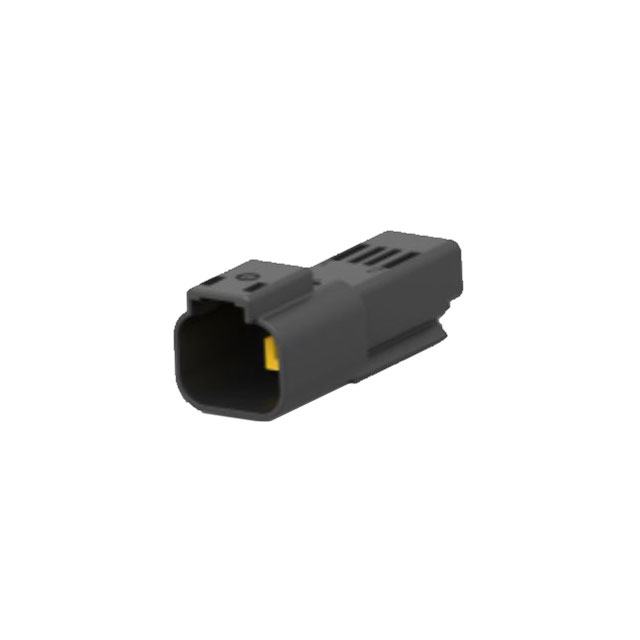

2327042-1
ActiveTE Connectivity Raychem Cable Protection
COMBINATION LINE CONNECTOR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2327042-1
ActiveTE Connectivity Raychem Cable Protection
COMBINATION LINE CONNECTOR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2327042-1 |
|---|---|
| Color | Black |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Male Pin |
| Fastening Type | Latch Holder |
| Features | Sealed, Terminal Position Lock (TPA) |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 5 mm |
| Pitch [x] | 0.197 in |
Superseal Pro Series
| Part | Fastening Type | Contact Type | Number of Rows | Insulation Material | Contact Termination | Connector Type | Color | Pitch [x] | Pitch [x] | Note | Operating Temperature [Max] | Operating Temperature [Min] | Features | Number of Positions | Mounting Type | Accessory Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | Latch Lock | Female Socket | 1 | Polybutylene Terephthalate (PBT) Glass Filled | Crimp | Plug | Black | 5 mm | 0.197 in | Contacts Not Included | 125 °C | -40 °C | Sealed Terminal Position Lock (TPA) | 2 | Free Hanging (In-Line) | |
TE Connectivity Raychem Cable Protection | 4 | Cap (Cover) | ||||||||||||||
TE Connectivity Raychem Cable Protection | Latch Holder | Male Pin | 1 | Polybutylene Terephthalate (PBT) Glass Filled | Crimp | Receptacle | Black | 5 mm | 0.197 in | Contacts Not Included | 125 °C | -40 °C | Sealed Terminal Position Lock (TPA) | 2 | Free Hanging (In-Line) | |
TE Connectivity Raychem Cable Protection | Latch Lock | Female Socket | 1 | Polybutylene Terephthalate (PBT) Glass Filled | Crimp | Plug | Black | 5 mm | 0.197 in | Contacts Not Included | 125 °C | -40 °C | Sealed Terminal Position Lock (TPA) | 2 | Free Hanging (In-Line) | |
TE Connectivity Raychem Cable Protection | ||||||||||||||||
TE Connectivity Raychem Cable Protection | Latch Holder | Male Pin | 1 | Polybutylene Terephthalate (PBT) Glass Filled | Crimp | Receptacle | Black | 5 mm | 0.197 in | Contacts Not Included | 125 °C | -40 °C | Sealed Terminal Position Lock (TPA) | 2 | Free Hanging (In-Line) | |
TE Connectivity Raychem Cable Protection | Latch Holder | Male Pin | 1 | Polybutylene Terephthalate (PBT) Glass Filled | Crimp | Receptacle | Black | 5 mm | 0.197 in | Contacts Not Included | 125 °C | -40 °C | Sealed Terminal Position Lock (TPA) | 2 | Free Hanging (In-Line) | |
TE Connectivity Raychem Cable Protection | Latch Lock | Female Socket | 1 | Polyamide (PA66) Nylon 6/6 Glass Filled | Crimp | Plug | Black | 5 mm | 0.197 in | 120 °C | -40 °C | Connector Position Assurance (CPA) Sealed | 2 | Free Hanging (In-Line) | ||
TE Connectivity Raychem Cable Protection | Latch Lock | Female Socket | 1 | Polybutylene Terephthalate (PBT) Glass Filled | Crimp | Plug | Black | 5 mm | 0.197 in | Contacts Not Included | 125 °C | -40 °C | Sealed Terminal Position Lock (TPA) | 2 | Free Hanging (In-Line) | |
TE Connectivity Raychem Cable Protection | Latch Lock | Female Socket | 1 | Polyamide (PA66) Nylon 6/6 Glass Filled | Crimp | Plug | Black | 5 mm | 0.197 in | 120 °C | -40 °C | Connector Position Assurance (CPA) Sealed | 2 | Free Hanging (In-Line) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.79 | |
| 10 | $ 0.67 | |||
| 25 | $ 0.64 | |||
| 50 | $ 0.63 | |||
| 100 | $ 0.60 | |||
| 250 | $ 0.55 | |||
| 800 | $ 0.48 | |||
Description
General part information
Superseal Pro Series
2 Rectangular Connectors - Housings Receptacle Black 0.197" (5.00mm)
