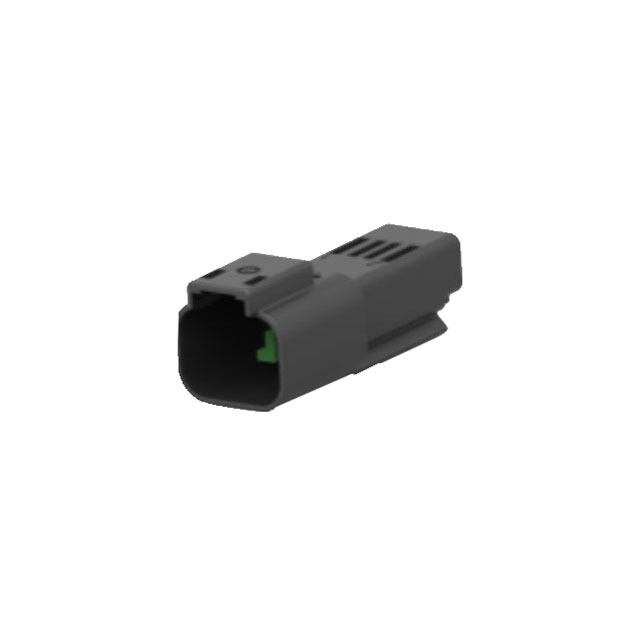

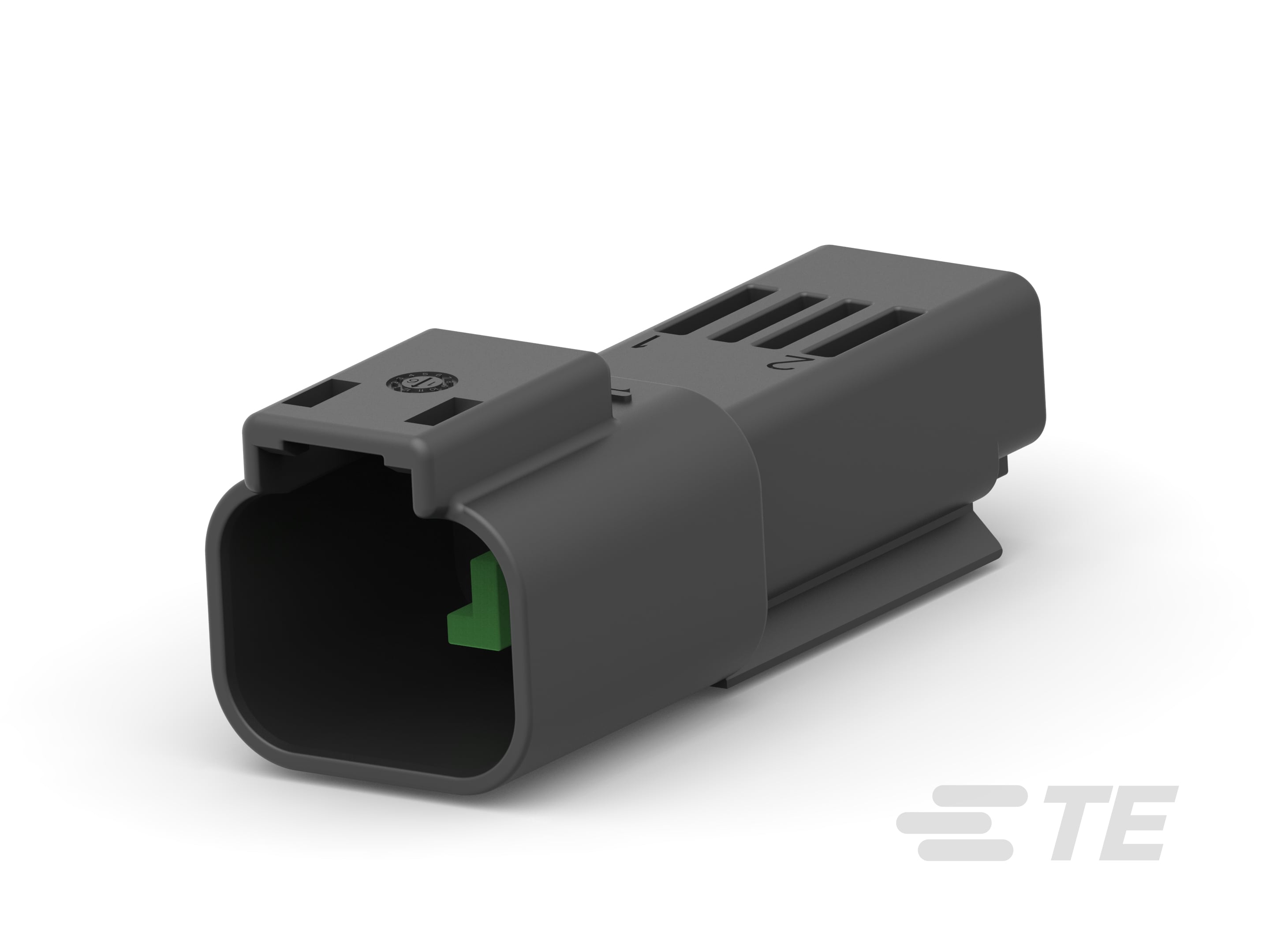

2327042-2

Active

TE Connectivity Raychem Cable Protection

CONN RCPT HSG 2POS 5.00MM

Deep-Dive with AI

Search across all available documentation for this part.

2327042-2

Active

TE Connectivity Raychem Cable Protection

CONN RCPT HSG 2POS 5.00MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2327042-2

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Male Pin
Fastening Type	Latch Holder
Features	Sealed, Terminal Position Lock (TPA)
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	2
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	5 mm
Pitch [x]	0.197 in

Superseal Pro Series

Part	Fastening Type	Contact Type	Number of Rows	Insulation Material	Contact Termination	Connector Type	Color	Pitch [x]	Pitch [x]	Note	Operating Temperature [Max]	Operating Temperature [Min]	Features	Number of Positions	Mounting Type	Accessory Type
TE Connectivity Raychem Cable Protection 2324808-3	Latch Lock	Female Socket	1	Polybutylene Terephthalate (PBT) Glass Filled	Crimp	Plug	Black	5 mm	0.197 in	Contacts Not Included	125 °C	-40 °C	Sealed Terminal Position Lock (TPA)	2	Free Hanging (In-Line)
TE Connectivity Raychem Cable Protection 2050831-2														4		Cap (Cover)
TE Connectivity Raychem Cable Protection 2327042-3	Latch Holder	Male Pin	1	Polybutylene Terephthalate (PBT) Glass Filled	Crimp	Receptacle	Black	5 mm	0.197 in	Contacts Not Included	125 °C	-40 °C	Sealed Terminal Position Lock (TPA)	2	Free Hanging (In-Line)
TE Connectivity Raychem Cable Protection 2324808-2	Latch Lock	Female Socket	1	Polybutylene Terephthalate (PBT) Glass Filled	Crimp	Plug	Black	5 mm	0.197 in	Contacts Not Included	125 °C	-40 °C	Sealed Terminal Position Lock (TPA)	2	Free Hanging (In-Line)
TE Connectivity Raychem Cable Protection 2375556-3
TE Connectivity Raychem Cable Protection 2327042-2	Latch Holder	Male Pin	1	Polybutylene Terephthalate (PBT) Glass Filled	Crimp	Receptacle	Black	5 mm	0.197 in	Contacts Not Included	125 °C	-40 °C	Sealed Terminal Position Lock (TPA)	2	Free Hanging (In-Line)
TE Connectivity Raychem Cable Protection 2327042-1	Latch Holder	Male Pin	1	Polybutylene Terephthalate (PBT) Glass Filled	Crimp	Receptacle	Black	5 mm	0.197 in	Contacts Not Included	125 °C	-40 °C	Sealed Terminal Position Lock (TPA)	2	Free Hanging (In-Line)
TE Connectivity Raychem Cable Protection 2345388-1	Latch Lock	Female Socket	1	Polyamide (PA66) Nylon 6/6 Glass Filled	Crimp	Plug	Black	5 mm	0.197 in		120 °C	-40 °C	Connector Position Assurance (CPA) Sealed	2	Free Hanging (In-Line)
TE Connectivity Raychem Cable Protection 2324808-1	Latch Lock	Female Socket	1	Polybutylene Terephthalate (PBT) Glass Filled	Crimp	Plug	Black	5 mm	0.197 in	Contacts Not Included	125 °C	-40 °C	Sealed Terminal Position Lock (TPA)	2	Free Hanging (In-Line)
TE Connectivity Raychem Cable Protection 2345388-2	Latch Lock	Female Socket	1	Polyamide (PA66) Nylon 6/6 Glass Filled	Crimp	Plug	Black	5 mm	0.197 in		120 °C	-40 °C	Connector Position Assurance (CPA) Sealed	2	Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.91
		10	$ 0.77
		25	$ 0.74
		50	$ 0.72
		100	$ 0.69
		250	$ 0.63
		800	$ 0.55

Description

General part information

Superseal Pro Series

2 Rectangular Connectors - Housings Receptacle Black 0.197" (5.00mm)

Documents

Technical documentation and resources

No documents available
