ATS-56006-C3-R0

Active

Advanced Thermal Solutions Inc.

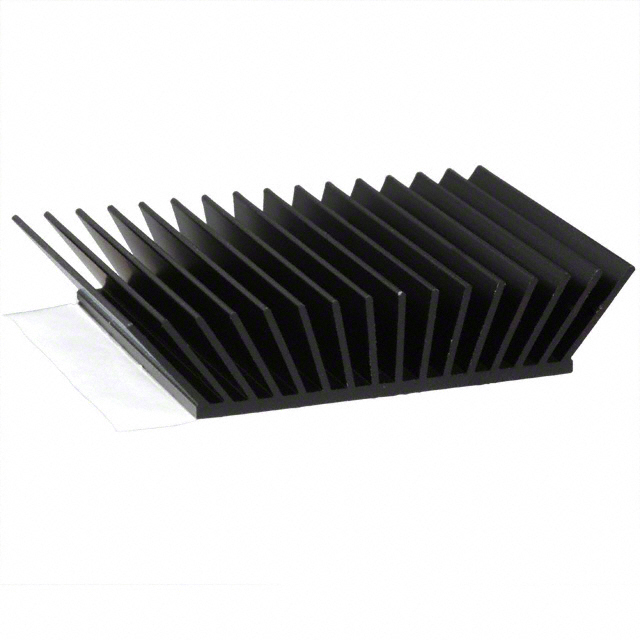

HEAT SINK 50MM X 45MM X 12.5MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ATS-56006-C3-R0

Active

Advanced Thermal Solutions Inc.

HEAT SINK 50MM X 45MM X 12.5MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ATS-56006-C3-R0

Attachment Method	Thermal Tape, Adhesive (Included)
Fin Height [z]	0.472 in
Fin Height [z]	12 mm
Length [x]	1.969 in
Length [x]	50 mm
Material	Aluminum
Material Finish	Black Anodized
Package Cooled	ASIC
Shape	Rectangular, Angled Fins
Thermal Resistance @ Forced Air Flow	200 LFM, 3.9 °C/W
Type	Top Mount
Width	45 mm
Width [x]	1.772 in

BGA ASIC Cooling Series

Heat Sinks Heat Sink, maxiFLOW, Double-Sided Thermal Tape, Gold Anodized, T412, 42x42x16mm

Part	Fin Height [z]	Fin Height [z]	Shape	Package Cooled	Attachment Method	Thermal Resistance @ Forced Air Flow	Type	Material Finish	Width	Width	Material	Fin Height	Fin Height	Length [x]	Length [x]	Width [x]	Width [x]	Length	Width [y]	Width [y]	Length
Advanced Thermal Solutions Inc. ATS-56009-C3-R0	0.354 in	9 mm	Rectangular Angled Fins	ASIC	Thermal Tape Adhesive (Included)	4.8 °C/W 200 LFM	Top Mount	Black Anodized	30 mm	1.181 in	Aluminum
Advanced Thermal Solutions Inc. ATS-56011-C4-R0			Angled Fins Square	ASIC	Thermal Tape Adhesive (Not Included)	2.3 °C/W	Top Mount	Black Anodized			Aluminum	12.5 mm	0.492 in	2.264 in	57.5 mm	2.264 in	57.5 mm
Advanced Thermal Solutions Inc. ATS-56007-C3-R0			Angled Fins Square	ASIC	Thermal Tape Adhesive (Included)	2.4 °C/W 200 LFM	Top Mount	Black Anodized	45 mm		Aluminum	15 mm	0.59 "	1.772 "		1.772 in		45 mm
Advanced Thermal Solutions Inc. ATS-56004-C4-R0	0.197 in	5 mm	Rectangular Angled Fins	ASIC	Thermal Tape Adhesive (Not Included)	7.9 °C/W 200 LFM	Top Mount	Black Anodized	30 mm	1.181 in	Aluminum
Advanced Thermal Solutions Inc. ATS-56000-C4-R0	0.354 in	9 mm	Angled Fins Square	ASIC	Thermal Tape Adhesive (Not Included)	4 °C/W 200 LFM	Top Mount	Black Anodized	30 mm	1.181 in	Aluminum			1.181 in	30 mm
Advanced Thermal Solutions Inc. ATS-56001-C4-R0	0.354 in	9 mm	Angled Fins Square	ASIC	Thermal Tape Adhesive (Not Included)	5.3 °C/W 200 LFM	Top Mount	Black Anodized			Aluminum							19 mm	0.748 in	19 mm	0.748 in
Advanced Thermal Solutions Inc. ATS-56006-C4-R0	0.472 in	12 mm	Rectangular Angled Fins	ASIC	Thermal Tape Adhesive (Not Included)	3.9 °C/W 200 LFM	Top Mount	Black Anodized	45 mm		Aluminum			1.969 in	50 mm	1.772 in
Advanced Thermal Solutions Inc. ATS-56006-C3-R0	0.472 in	12 mm	Rectangular Angled Fins	ASIC	Thermal Tape Adhesive (Included)	3.9 °C/W 200 LFM	Top Mount	Black Anodized	45 mm		Aluminum			1.969 in	50 mm	1.772 in
Advanced Thermal Solutions Inc. ATS-56004-C1-R0	0.197 in	5 mm	Rectangular Angled Fins	ASIC	Thermal Tape Adhesive (Included)	7.9 °C/W 200 LFM	Top Mount	Black Anodized	30 mm	1.181 in	Aluminum
Advanced Thermal Solutions Inc. ATS-56010-C3-R0	0.335 in	8.5 mm	Rectangular Angled Fins	ASIC	Thermal Tape Adhesive (Included)	4 °C/W 200 LFM	Top Mount	Black Anodized	45 mm		Aluminum			1.969 in	50 mm	1.772 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 17.43

Description

General part information

BGA ASIC Cooling Series

Heat Sinks Heat Sink, maxiFLOW, Double-Sided Thermal Tape, Gold Anodized, T412, 42x42x16mm
