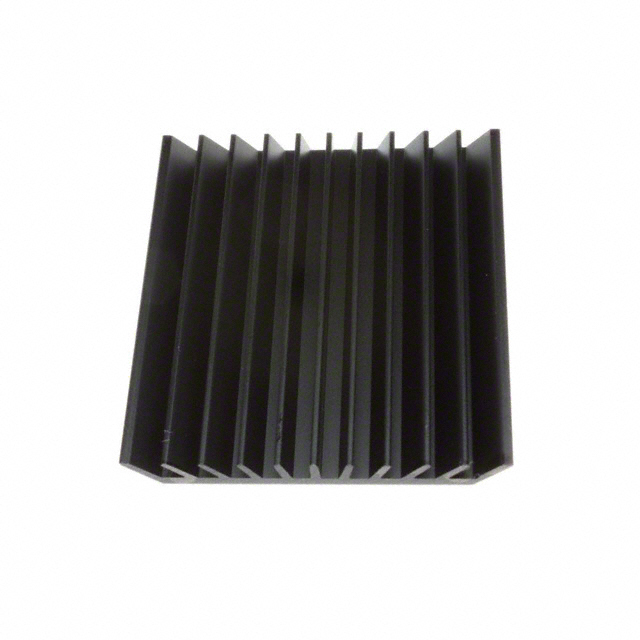

Specification	ATS-56004-C4-R0

Attachment Method	Thermal Tape, Adhesive (Not Included)
Fin Height	0.197 in
Length	1.575 in
Material	Aluminum
Material Finish	Black Anodized
Package Cooled	ASIC
Shape	Rectangular, Angled Fins
Thermal Resistance	7.9 °C/W
Type	Top Mount
Width	1.181 in

BGA ASIC Cooling Series

Part	Type	Material Finish	Material	Fin Height	Width	Attachment Method	Thermal Resistance	Shape	Length	Package Cooled
Advanced Thermal Solutions Inc. ATS-56009-C3-R0	Top Mount	Black Anodized	Aluminum	0.354 in	1.181 in	Adhesive (Included) Thermal Tape	4.8 °C/W	Angled Fins Rectangular	2.283 in	ASIC
Advanced Thermal Solutions Inc. ATS-56007-C3-R0	Top Mount	Black Anodized	Aluminum	0.59 in	1.772 in	Adhesive (Included) Thermal Tape	2.4 °C/W	Angled Fins Square	1.772 in	ASIC
Advanced Thermal Solutions Inc. ATS-56000-C3-R0	Top Mount	Black Anodized	Aluminum	0.354 in	1.181 in	Adhesive (Included) Thermal Tape	4 °C/W	Angled Fins Square	1.181 in	ASIC
Advanced Thermal Solutions Inc. ATS-56006-C3-R0	Top Mount	Black Anodized	Aluminum	0.472 in	1.772 in	Adhesive (Included) Thermal Tape	3.9 °C/W	Angled Fins Rectangular	1.969 in	ASIC
Advanced Thermal Solutions Inc. ATS-56010-C3-R0	Top Mount	Black Anodized	Aluminum	0.335 in	1.772 in	Adhesive (Included) Thermal Tape	4 °C/W	Angled Fins Rectangular	1.969 in	ASIC
Advanced Thermal Solutions Inc. ATS-56012-C3-R0	Top Mount	Gold Anodized	Aluminum	0.63 in	1.654 in	Adhesive (Included) Thermal Tape	2.8 °C/W	Angled Fins Square	1.654 in	ASIC
Advanced Thermal Solutions Inc. ATS-56013-C3-R0	Top Mount	Gold Anodized	Aluminum	0.63 in	1.654 in	Adhesive (Included) Thermal Tape	2.2 °C/W	Angled Fins Square	1.654 in	ASIC
