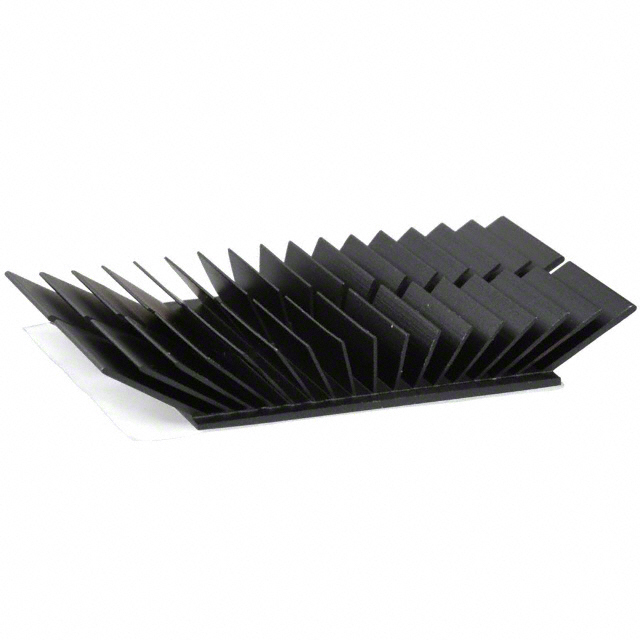

Specification	ATS-56010-C3-R0

Attachment Method	Thermal Tape, Adhesive (Included)
Fin Height	0.335 in
Length	1.969 in
Material	Aluminum
Material Finish	Black Anodized
Package Cooled	ASIC
Shape	Rectangular, Angled Fins
Thermal Resistance	4 °C/W
Type	Top Mount
Width	1.772 in

ATS-560 Series

Part	Type	Material Finish	Material	Fin Height	Width	Attachment Method	Thermal Resistance	Shape	Length	Package Cooled
Advanced Thermal Solutions Inc. ATS-56009-C3-R0	Top Mount	Black Anodized	Aluminum	0.354 in	1.181 in	Adhesive (Included) Thermal Tape	4.8 °C/W	Angled Fins Rectangular	2.283 in	ASIC
Advanced Thermal Solutions Inc. ATS-56007-C3-R0	Top Mount	Black Anodized	Aluminum	0.59 in	1.772 in	Adhesive (Included) Thermal Tape	2.4 °C/W	Angled Fins Square	1.772 in	ASIC
Advanced Thermal Solutions Inc. ATS-56000-C3-R0	Top Mount	Black Anodized	Aluminum	0.354 in	1.181 in	Adhesive (Included) Thermal Tape	4 °C/W	Angled Fins Square	1.181 in	ASIC
Advanced Thermal Solutions Inc. ATS-56006-C3-R0	Top Mount	Black Anodized	Aluminum	0.472 in	1.772 in	Adhesive (Included) Thermal Tape	3.9 °C/W	Angled Fins Rectangular	1.969 in	ASIC
Advanced Thermal Solutions Inc. ATS-56010-C3-R0	Top Mount	Black Anodized	Aluminum	0.335 in	1.772 in	Adhesive (Included) Thermal Tape	4 °C/W	Angled Fins Rectangular	1.969 in	ASIC
Advanced Thermal Solutions Inc. ATS-56012-C3-R0	Top Mount	Gold Anodized	Aluminum	0.63 in	1.654 in	Adhesive (Included) Thermal Tape	2.8 °C/W	Angled Fins Square	1.654 in	ASIC
Advanced Thermal Solutions Inc. ATS-56013-C3-R0	Top Mount	Gold Anodized	Aluminum	0.63 in	1.654 in	Adhesive (Included) Thermal Tape	2.2 °C/W	Angled Fins Square	1.654 in	ASIC
